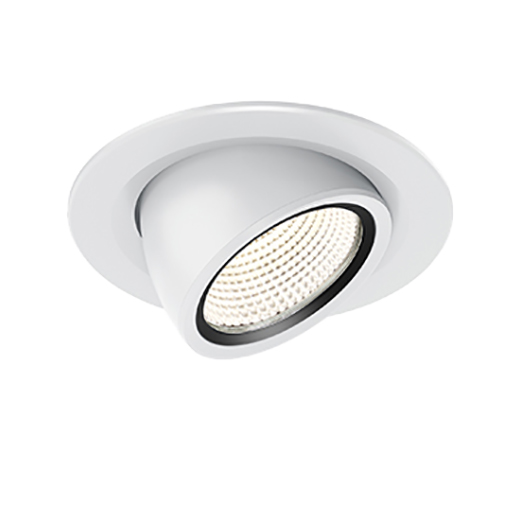

Punta PLR

  • Lighting technology LED
  • Tool-less ceiling mounting
  • Ceiling cut-out Ø185 mm
  • Floor and wall mounting not permitted
  • Turning and tilting (360°/65°)
  • With integral reflector SSP, SP, MFL, FL or WFL
  • Supply unit included
  • Connection to power supply by Wieland plug
    GST18i3; wire length l = 0.5 m
  • Version with DALI or Casambi on request
    (Casambi not compatible with metal ceilings)

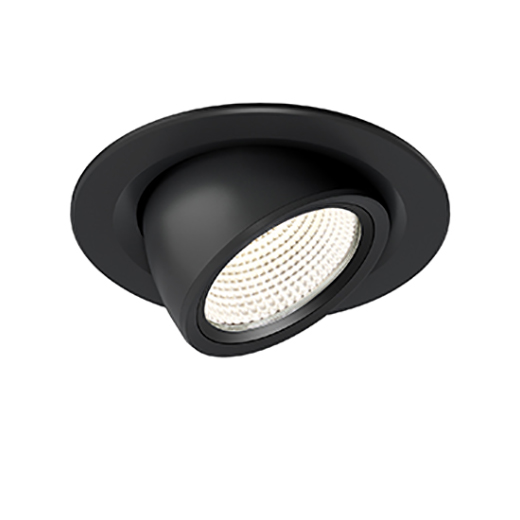

  • Colours: white, anthracite

Product details

Power level [W]

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8304469lm34W131
8404706lm34W138
9273641lm34W107
9303847lm34W113
9404032lm34W119
930PW3628lm34W107
Meat+2141lm34W63
Nmeat1706lm34W50
8305088lm40W127
8405357lm40W134
9274145lm40W104
9304379lm40W109
9404590lm40W115
Meat2402lm40W60
930PW4100lm40W103
Nmeat1926lm40W48
8305672lm46W123
8405972lm46W130
9274621lm46W100
N273446lm46W75
9304881lm46W106
9405116lm46W111
930PW4530lm46W98
Meat+2642lm46W57
Nmeat2127lm46W46
P System : The value can be up to 10% higher.

More information

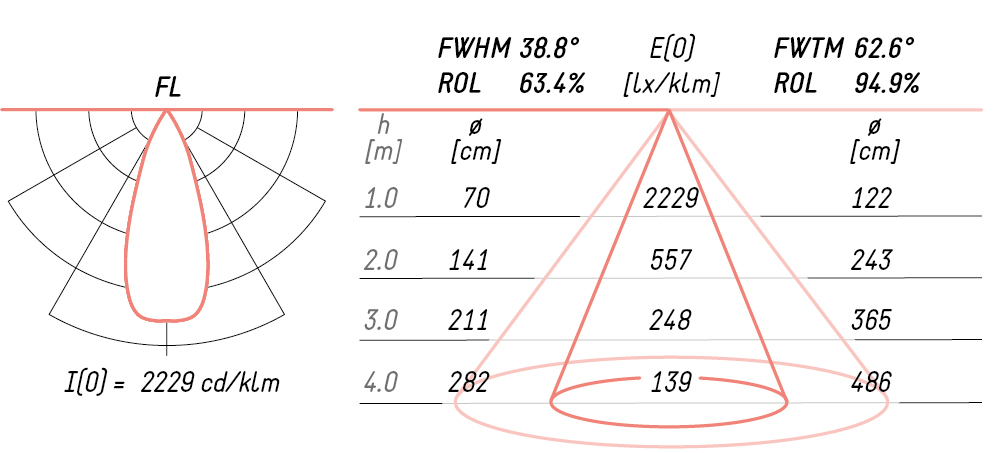

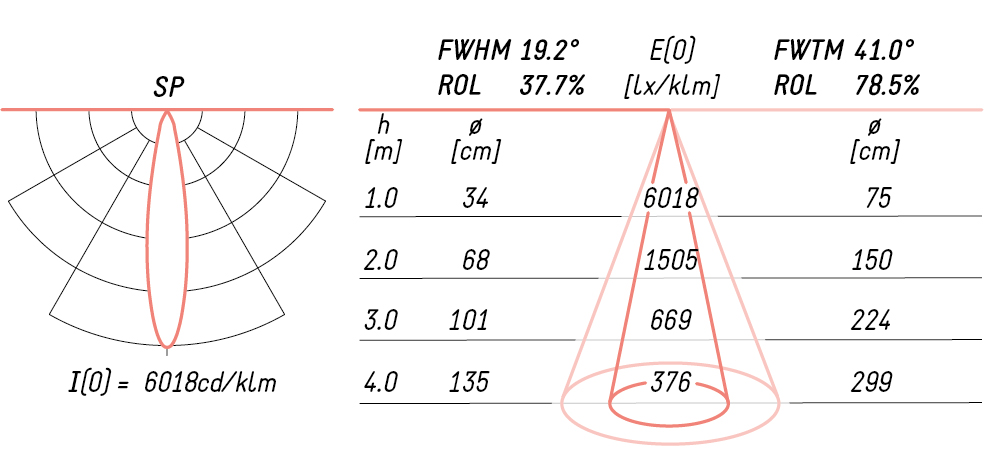

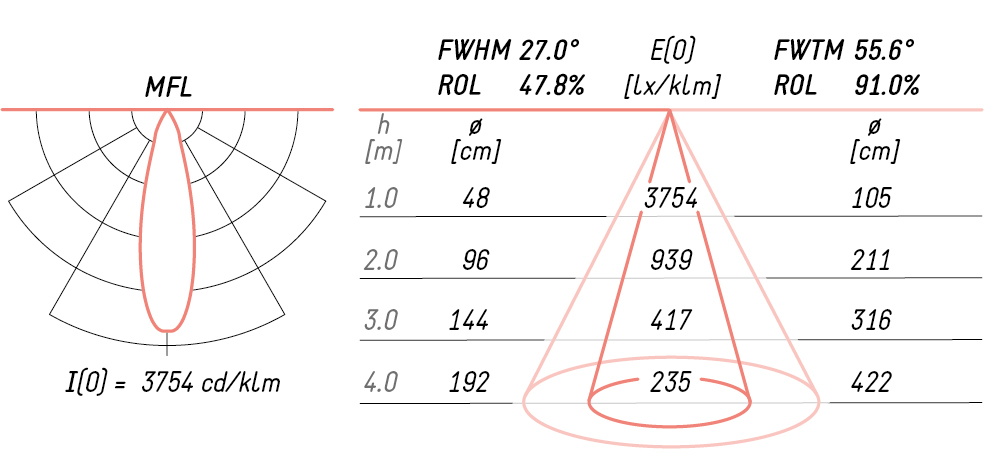

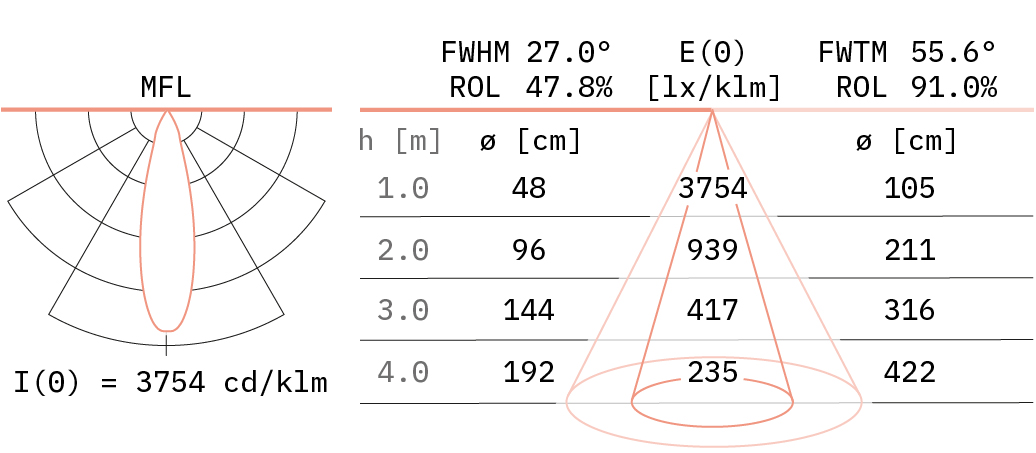

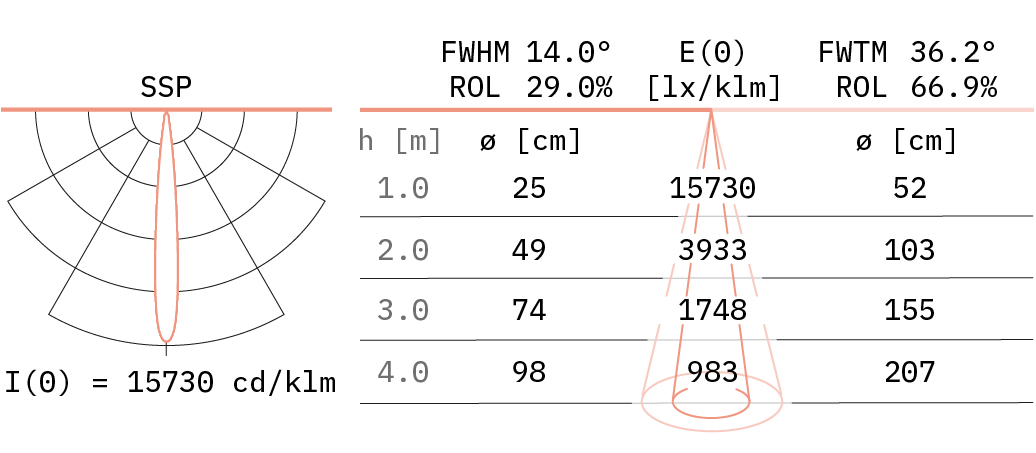

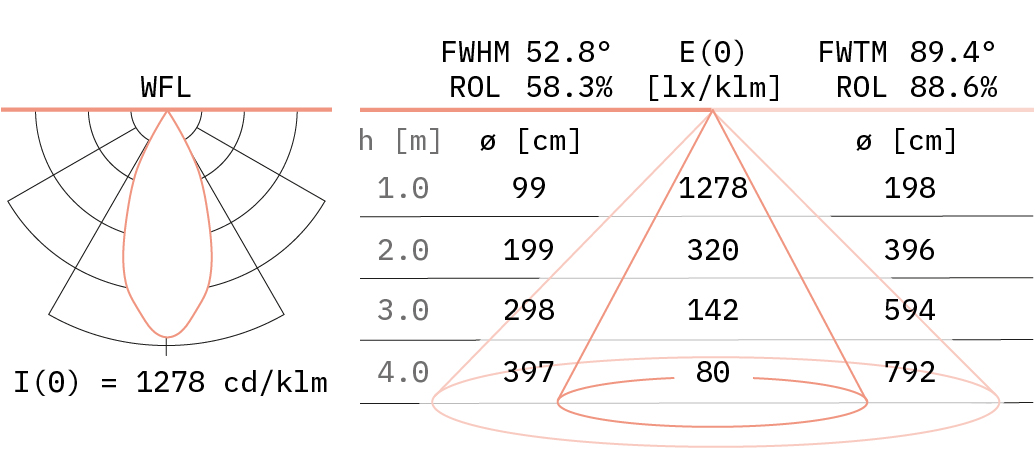

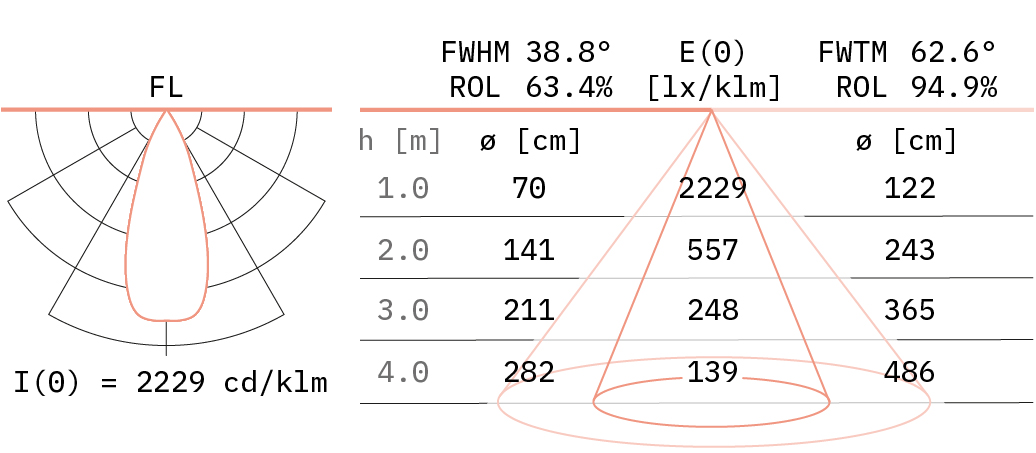

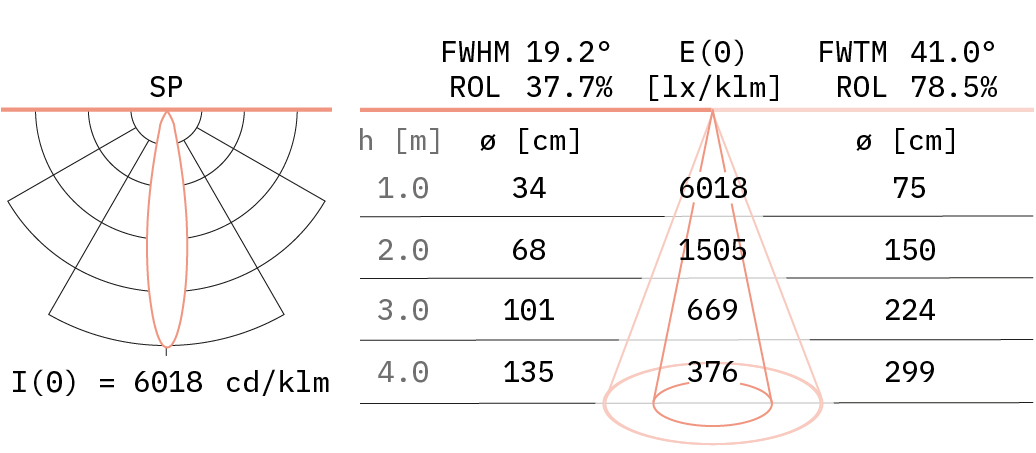

Lighting distribution

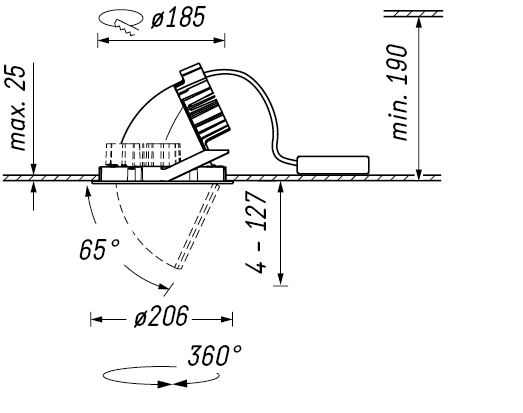

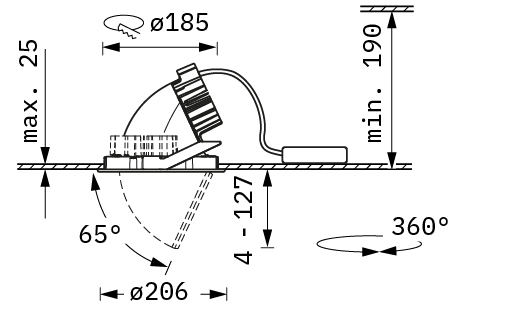

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 1,3 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A25
Protection class1
Type of protectionIP20
Certification markENEC / CB

Documents and Downloads

Here you find all downloads for our luminaire Punta PLR.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Punta PLR 62BD0728-H_Punta_PLR.pdfPDF | 1.6 MB
Technical Data Sheet Punta PLR Punta_PLR_EN_01.pdfPDF | 371.5 KB
LDT data Punta PLR Punta_PLR.zipZIP | 423.2 KB
