Bit BMR
- Lighting technology LED
- Tool-less ceiling mounting
- Wall mounting not permitted
- Spotlights tilting and turning (360°/ from - 20° to +45°)
- With integral reflector SSP, SP, MFL, FL, WFL or VWFL
- Supply unit included
- Connection to power supply by Wieland plug GST18i3; wire length l = 0.5 m
- DALI or INspire lighting control system on request (INspire Lighting Control not for use in metal ceilings)

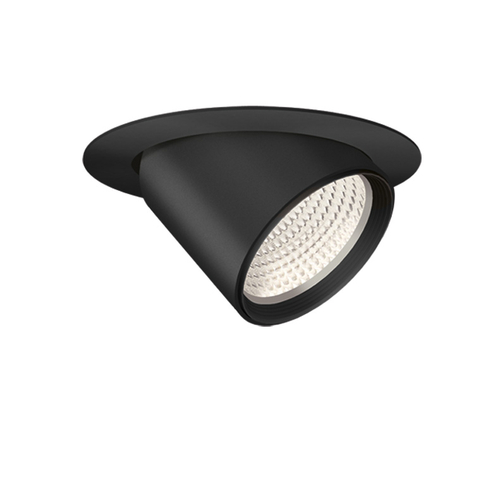

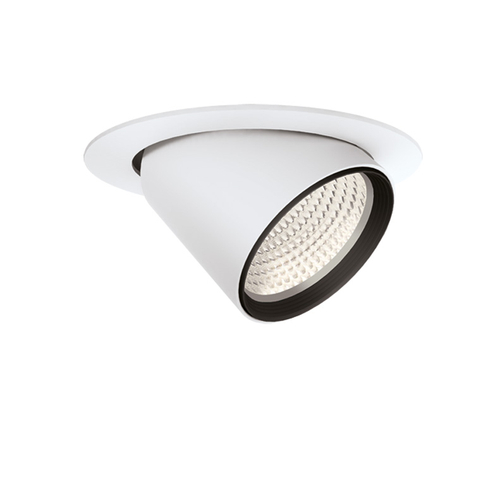

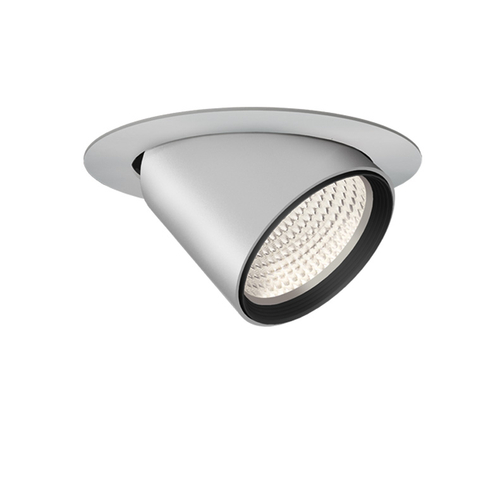

- Colours: white, anthracite, silver
Product details
| CRICRI light colour | Luminous flux [lm] | PSystem *[W] | System efficiency [lm/w] |
|---|---|---|---|
| 830 | 1000 | 8 | 125 |
| 840 | On request | ||
| 927 | On request | ||
| N27 | On request | ||
| 930 | 1050 | 13 | 81 |
| 940 | On request | ||
| Brilliant | 1150 | 12 | 96 |
| Meat | On request | ||
| NMeat | On request | ||
| PSystem : The value can be up to 10% higher. | |||
| CRICRI light colour | Luminous flux [lm] | PSystem *[W] | System efficiency [lm/w] |
|---|---|---|---|
| 830 | 2150 | 19 | 113 |
| 840 | 2000 | 17 | 118 |
| 927 | 2100 | 23 | 91 |
| N27 | On request | ||
| 930 | 2050 | 27 | 76 |
| 940 | 2150 | 25 | 86 |
| Brilliant | 2150 | 23 | 93 |
| Meat | On request | ||
| NMeat | 1550 | 33 | 47 |
| PSystem : The value can be up to 10% higher. | |||
| CRICRI light colour | Luminous flux [lm] | PSystem *[W] | System efficiency [lm/w] |
|---|---|---|---|
| 830 | 3100 | 29 | 107 |
| 840 | 3250 | 29 | 112 |
| 927 | 3000 | 36 | 83 |
| N27 | On request | ||
| 930 | 3000 | 35 | 86 |
| 940 | 3000 | 34 | 88 |
| Brilliant | 3050 | 35 | 87 |
| PSystem : The value can be up to 10% higher. | |||
| CRICRI light colour | Luminous flux [lm] | PSystem *[W] | System efficiency [lm/w] |
|---|---|---|---|
| 830 | On request | ||
| 840 | On request | ||
| Brilliant | 3600 | 38 | 95 |
| PSystem : The value can be up to 10% higher. | |||
Light distribution

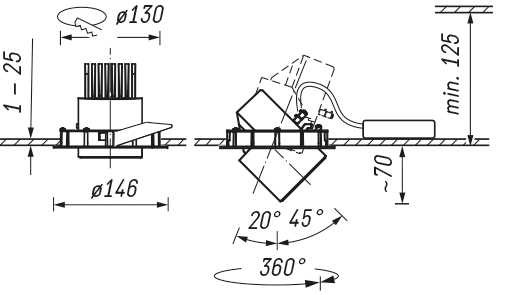

Technical drawing
Photometric information
| Information | Values |
| Connection data | 220-240 V, 50/60 Hz (110-277 V upon request) |
| Weight | approx. 0.75 kg |
| Colour tolerance | 3SDCM (MacAdam) |
| Maintenance of luminous flux | L80/B10 - 50,000h, Ta 25 °C |
| Failure rate | C0/B10 - 50,000h, Ta 25 °C |
| Photobiological safety | RG1 |
| Number per circuit breaker B 16A | 34 |
| Protection class | 1 |
| Type of protection | IP20 |
| Certification mark | ENEC / EAC |
Documents & Downloads
Here you find all downloads for our luminaire Bit BMR.
