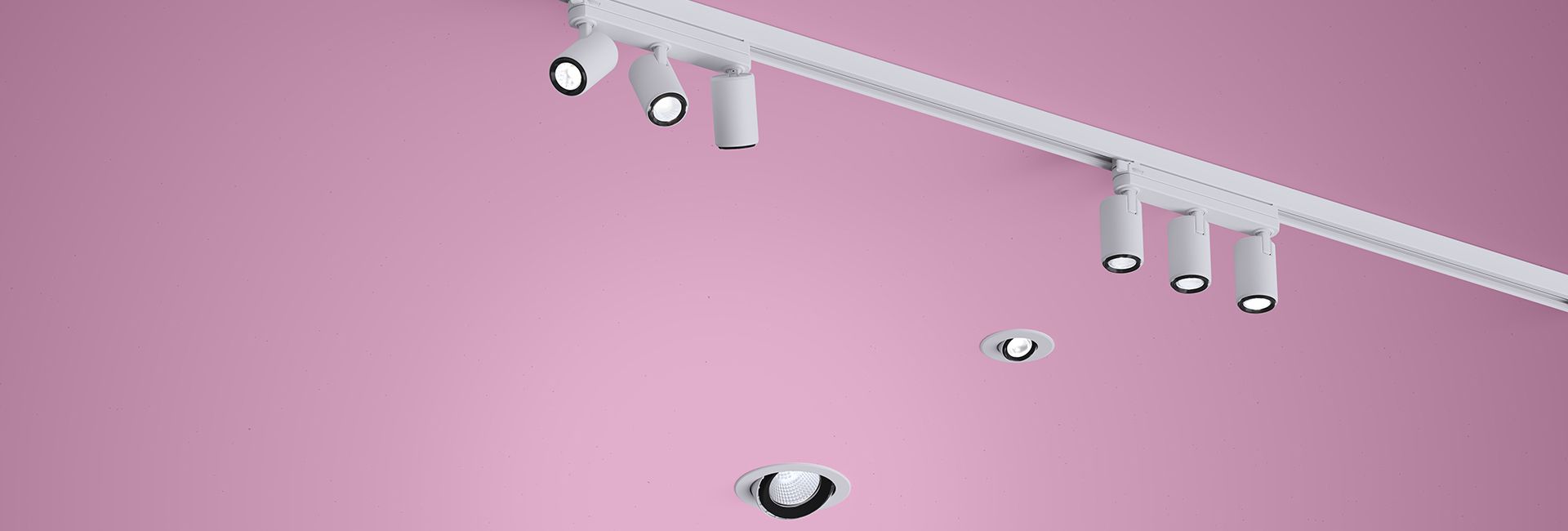

Coray

Our new product family concentrates so much on the essential that it creates something really relevant: universal application possibilities. Coray offers uniquely flexible lighting solutions and high-intensity staging in a minimalist design. It gives lighting designers, architects and retailers completely new freedom. From high ceilings in halls to filigree display case illumination. Their high-quality light enhances the value of brands.

High lighting quality, maximum luminous efficacy, tailored to the needs of the retail trade: Coray is the essence of what has always set Ansorg apart. With Coray, we not only meet customer requirements for a universally applicable luminaire family and for smaller luminaires. With different designs, sizes and mounting types, it can be used in all retail areas and all lighting situations. It thus ensures a consistently harmonious design concept throughout the entire store.



More than 60 years in the field of lighting solutions for the retail trade have been incorporated into this product family.

High Performance and Compact Shape

When everything is perfect, we go into detail. We are committed to the tradition of German design: simple, minimalistic and, above all, focused on functionality. In all our products you will find high-performance technology in elegant housing that has one goal: to draw the consumer’s attention to your merchandise – and not the light itself. We achieve this thanks to innovative thermal management, starting with the design and construction of each luminaire.

We spend many hours developing, testing and refining a new product until it is ready for series production. That is why we are all the more delighted when this extraordinary commitment and attention to detail is also honoured by renowned experts. Our products have won several international awards. Among others, the Good Design Award, the Iconic Award and the German Design Award. Coray defines a completely new language of design rooted in Ansorg’s tradition.



«The details are not the details. They make the design.» – Charles Eames

Innovative Technology

Coray is characterised by the developments of recent years. The technical highlights of this product series include technology installed in the smallest of spaces, integrated control gear, 3D reflector technology developed in-house and the innovative use of collimators (lens technology). Together they provide unrivalled light output in their class.

Lens Technology

We use collimators instead of reflectors in the particularly small lamps of the Coray series, marked CX. These ensure that the light from the LEDs is focused in accordance with the lens principle. This enables us to achieve optimum luminous efficacy even with the smallest design. With the aid of foils the resulting super spot can be extended to one spot or a medium floodlight.

3D Facet Reflectors

The built-in reflectors represent our own developments. With an efficient 3D facet technology extensively tested in our own lighting laboratory, they ensure perfect light mixing and excellent focus on the merchandise that avoids unwanted lighting effects. Thus we obtain uniform light distribution with excellent colour quality.

Surface-mounted luminaires

Productmax. lumenmax. efficiencyBeam angle
Coray CMT3814 lm133 lm/WFlood, Spot, Wide Flood, Medium Flood, Very Wide Flood, Super Spot
Coray CXS700 lm78 lm/WSuper Spot, Medium Flood
Coray CXT1800 lm62 lm/WSuper Spot, Medium Flood
Coray CLT5200 lm124 lm/WSpot, Flood, Medium Flood

Recessed luminaires

Productmax. lumenmax. efficiencyBeam angle
Coray CMR3719 lm131 lm/WFlood, Medium Flood, Wide Flood, Spot, Super Spot, Very Wide Flood
Coray CXR600 lm100 lm/WSuper Spot, Medium Flood
Coray CMN3250 lm128 lm/WMedium Flood, Spot, Flood, Wide Flood
Coray CXN500 lm50 lm/WSuper Spot

Suspended luminaires

Productmax. lumenmax. efficiencyBeam angle
Coray CLP5200 lm125 lm/WMedium Flood, Wide Flood, Flood

Documents & Downloads

Here you find all downloads for our luminaire family Coray



  • Coray brochure
    2018_Coray-folder_EN.pdf
    PDF | 613.3 KB
    link

References

Fashion

Boden, Westfield

London, United Kingdom

Read more

Home Stores

Vitra Showroom

Frankfurt, Germany

Read more

Jewellery Stores

Linneys

Perth, Australia

Read more

Food

Edeka Schmidt

Bad Säckingen, Germany

Read more

Food

Edeka Zurheide

Düsseldorf, Germany

Read more

Food

Marks & Spencer

Cambridge, United Kingdom

Read more

Office

GMK Markenberatung

Cologne, Germany

Read more

Fashion

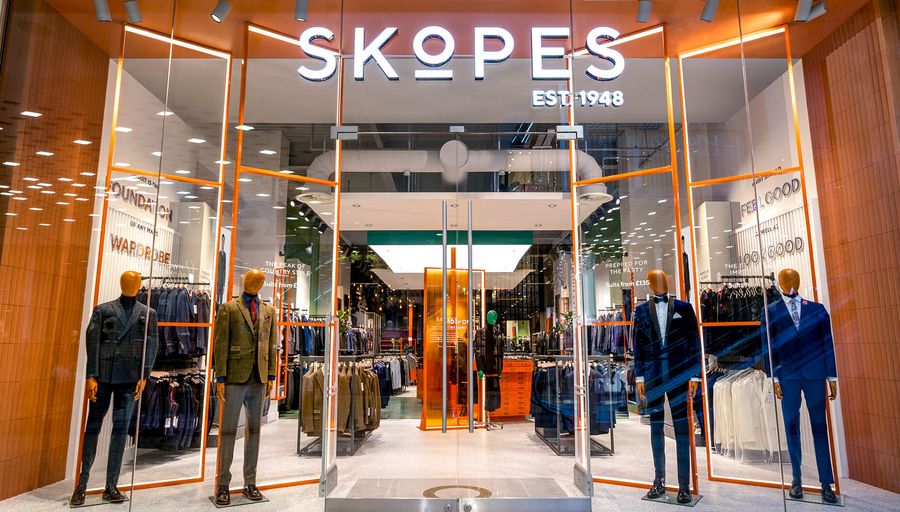

Skopes

London, United Kingdom

Read more

Fashion

Decathlon

Lyon, France

Read more

Fashion

Crocs

Parndorf, Austria

Read more

Automotive

VW Bullring

Birmingham, United Kingdom

Read more

Fashion

Joe Browns

Sheffield, United Kingdom

Read more

Fashion

Onitsuka Tiger

Amsterdam, Netherlands

Read more

Health & Beauty

Markus Apotheke

Bornheim, Germany

Read more

Fashion

Up

Panama City, Panama

Read more

Fashion

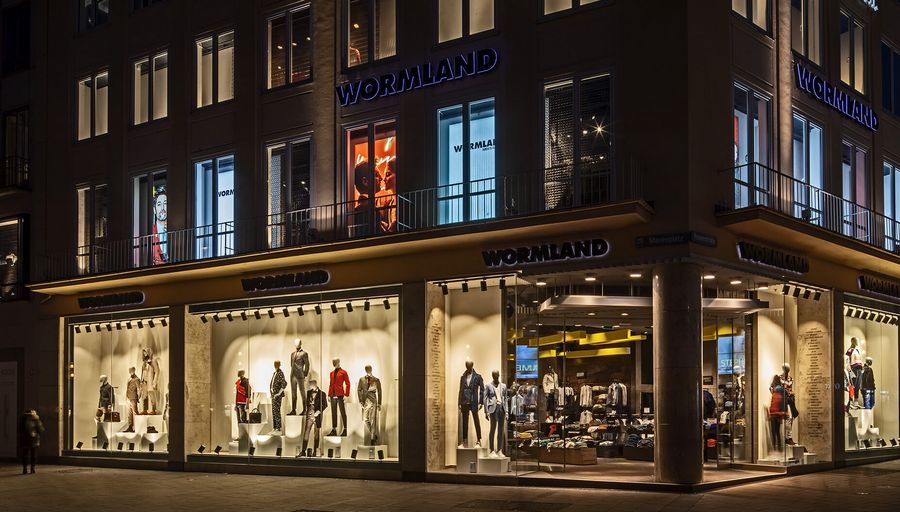

Wormland

Munich, Germany

Read more

Office Supplies

Ortloff

Köln, Germany

Read more

Fashion

Schuhe Lüke

Freiburg, Germany

Read more

Fashion

Hence

Madrid, Spain

Read more

Health & Beauty

Roger & Gallet

Paris, France

Read more

Fashion

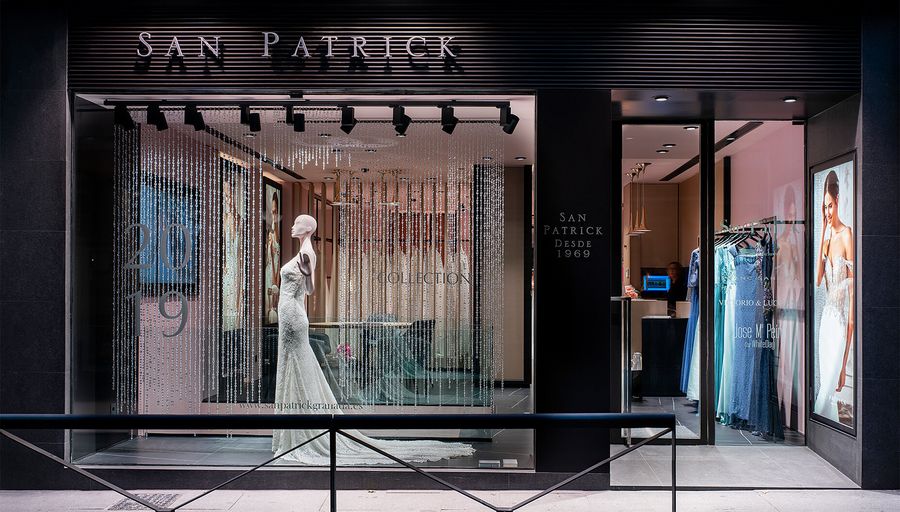

San Patrick

Granada, Spain

Read more

Fashion

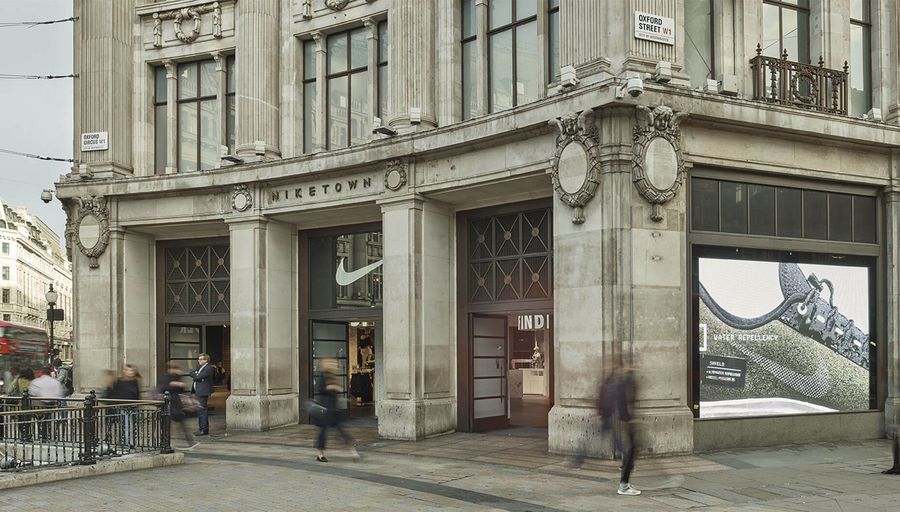

Nike, London
