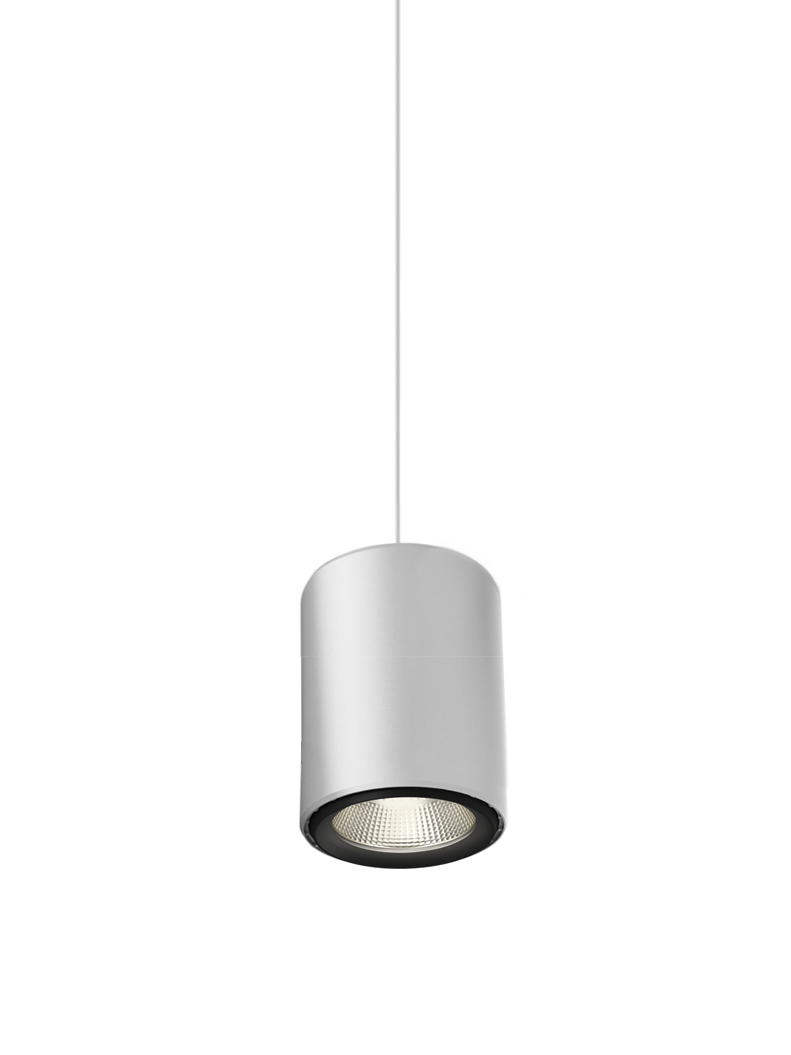

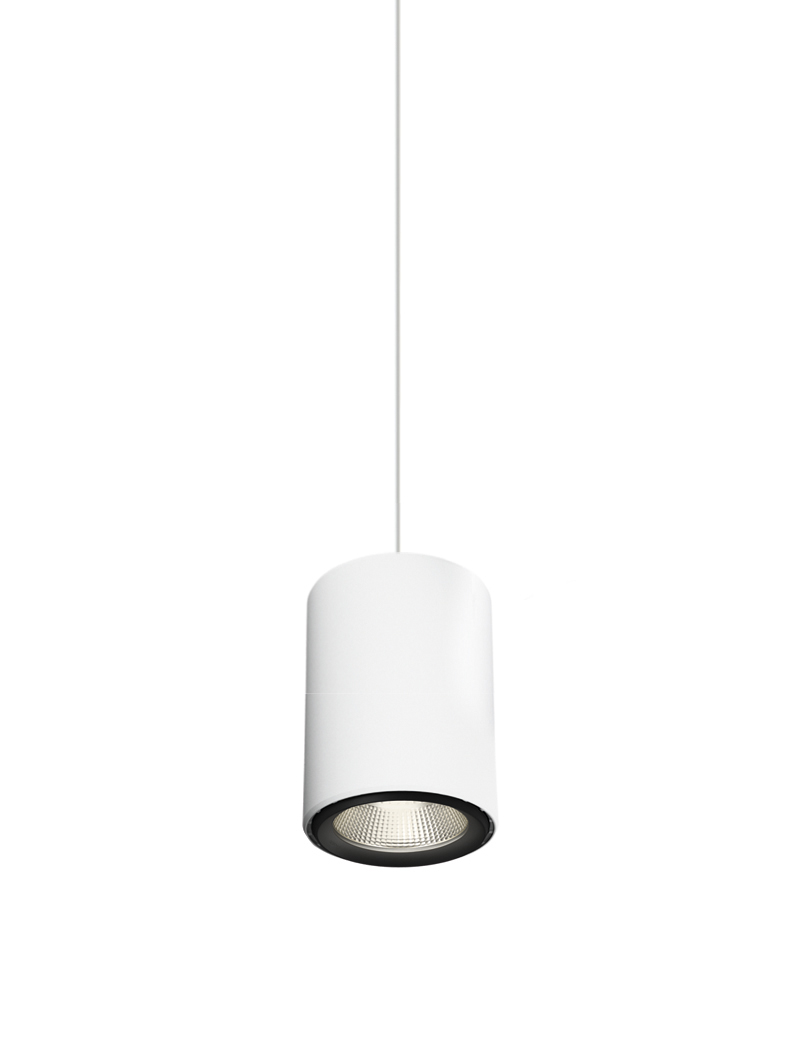

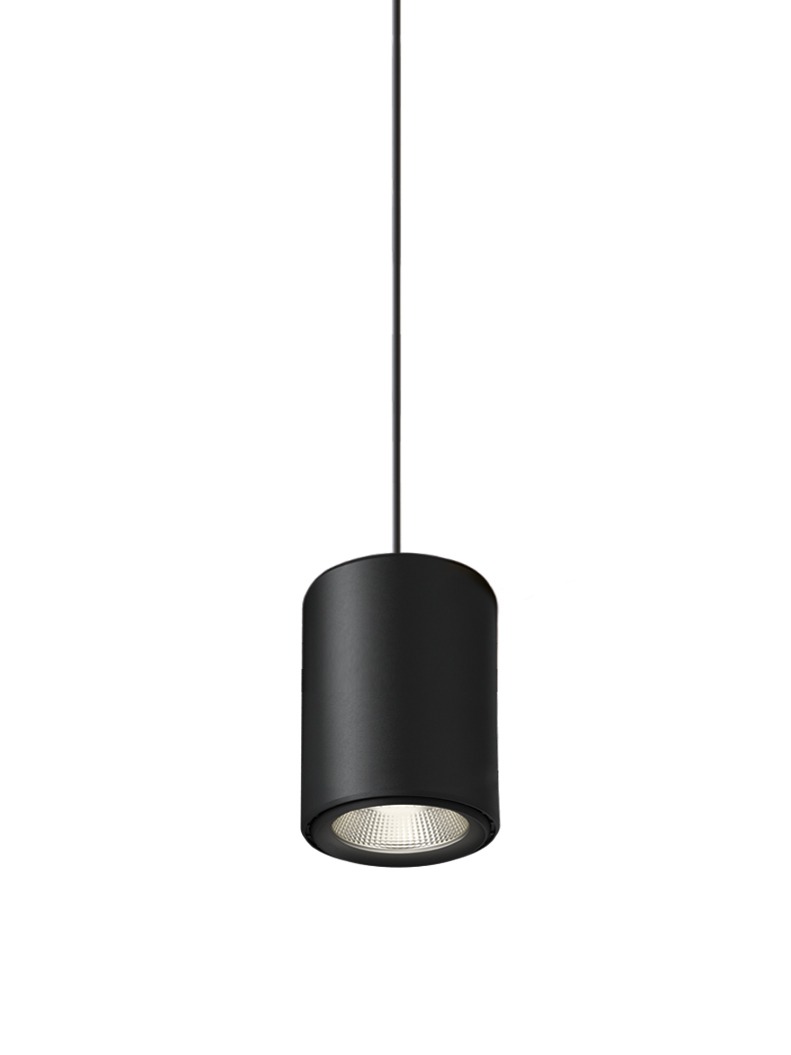

Coray CLP

  • Lighting technology LED
  • Suspended luminaire for three-circuit track or surface mounting
  • Textile suspension wire, black or white
  • With integral reflector SP, MFL, FL or WFL
  • Supply unit included
  • Connection to mains by means of
  • 3-pole terminal block or 3-circuit adapter
  • DALI or INspire lighting control system on request (INspire Lighting Control not for use in metal ceilings)
  • Colours: white, anthracite, silver

Product details

Lumen class
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
830250020125
840 On request
927200020100
N27 On request
930 On request
940 On request
Brilliant On request
Meat20503264
NMeat On request
PSystem : The value can be up to 10% higher.
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
830310026119
840 On request
92730503295
N27 On request
930 On request
940 On request
Brilliant On request
PSystem : The value can be up to 10% higher.
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
830410036114
840400034118
92740504492
93042004789
940 On request
Brilliant On request
PSystem : The value can be up to 10% higher.
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
830510046111
840520046113
PSystem : The value can be up to 10% higher.

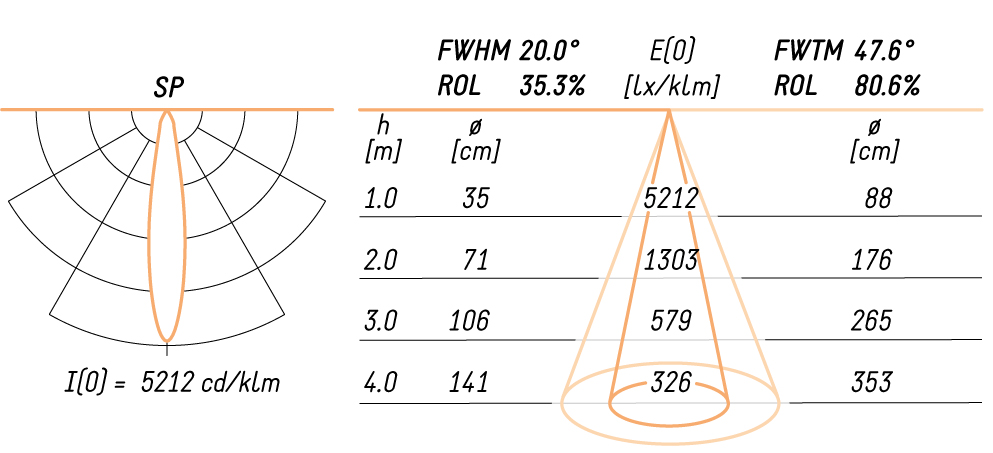

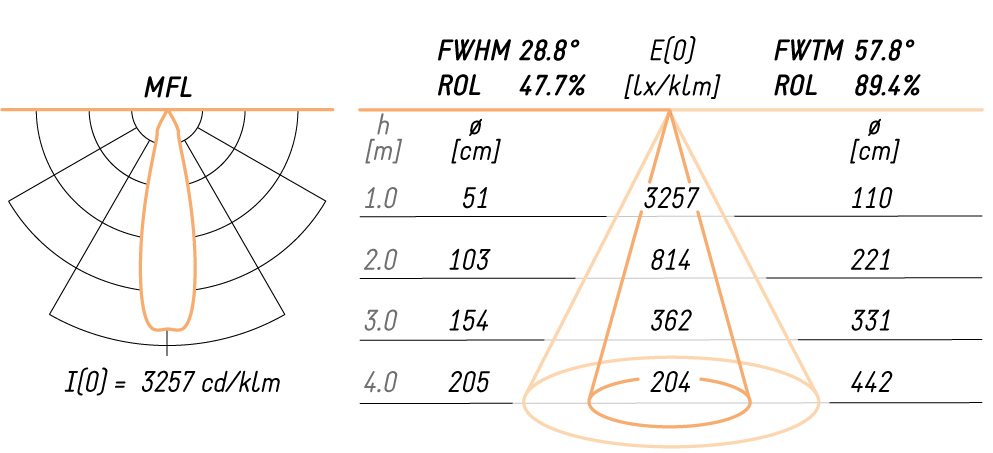

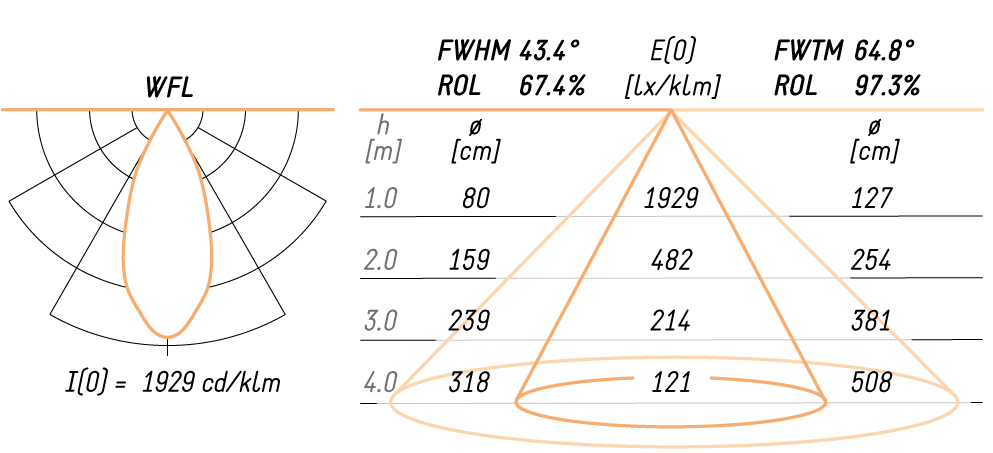

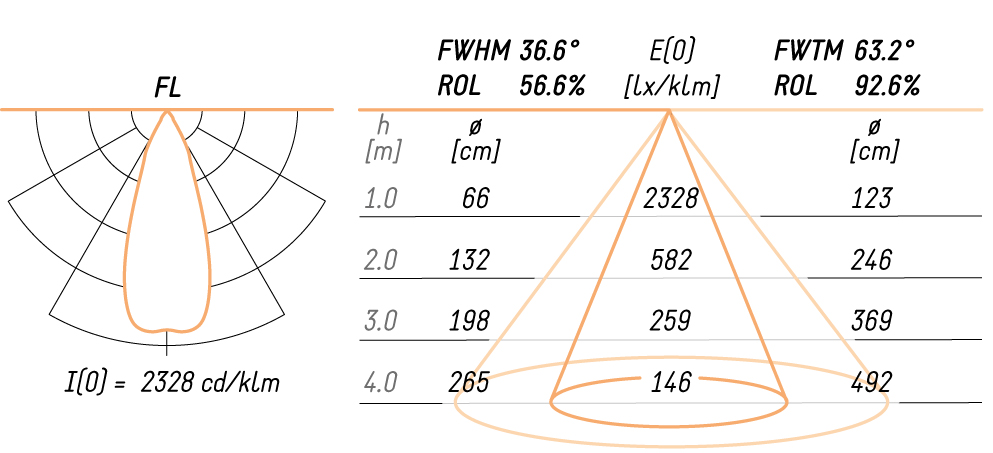

Lighting distribution

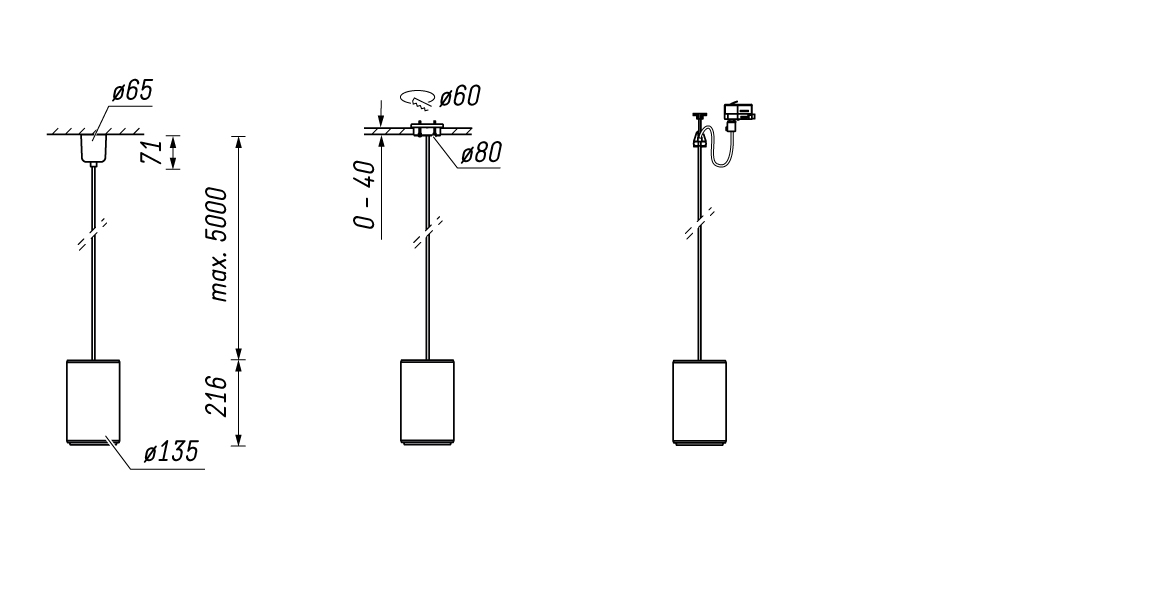

Technical drawing

Photometric information

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V upon request)
Weightapprox. 2.3 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 - 50,000h, Ta 25 °C
Failure rateC0/B10 - 50,000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A34/24
Protection class1
Type of protectionIP20
Certification markENEC / EAC
