Coray CMT

  • Lighting technology LED
  • Tool-less mounting with track adapter for three-circuit track or ceiling mounting
  • Wall mounting not permitted
  • Spotlights tilting and turning (360°/90°)
  • With integral reflector SSP, SP, MFL, FL, WFL or VWFL
  • Supply unit included
  • DALI or INspire lighting control system on request
  • Colours: white, anthracite, silver

Product details

Lumen class
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
830362331117
324927120
840 On request
927 On request
N2714661977
Brilliant On request
PSystem : The value can be up to 10% higher.
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
830241519127
927196719104
231423101
N2717202375
21853170
19602773
930206919109
243423106
940217519114
Brilliant198119104
232623101
PSystem : The value can be up to 10% higher.
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
830284123124
840253619133
298323130
341027126
92729583195
26462798
930311231100
278327103
940255823111
327031105
292427108
Brilliant29523195
26512798
PSystem : The value can be up to 10% higher.
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
840381431123
PSystem : The value can be up to 10% higher.

Light distribution

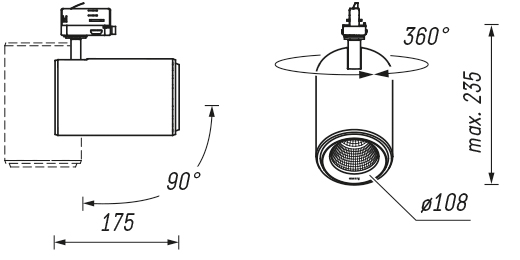

Technical drawing

Photometric information

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V upon request)
Weightapprox. 1.2 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 - 50,000h, Ta 25 °C
Failure rateC0/B10 - 50,000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A34
Protection class1
Type of protectionIP20
Certification markENEC / EAC



Documents & Downloads

Here you find all downloads for our luminaire Coray CMT.



  • General mounting information
    62BD0012-E_Montagehinweise.pdf
    PDF | 798.2 KB
    link
  • Mounting instructions Coray CMT
    62BD0600-B_Coray_CMT.pdf
    PDF | 1.3 MB
    link
  • Technical data sheet
    Coray_CMT_EN.pdf
    PDF | 156.6 KB
    link
  • LDT-Data
    ldt-coray-cmt.zip
    ZIP | 44.5 KB
    link
  • 3D-Data Coray CMT
    cad-coray-cmt.zip
    ZIP | 9.8 MB
    link
