Coray CXS

  • Lighting technology LED
  • Tool-less mounting with adapter for 48 V circuit
    track
  • Floor and wall mounting not permitted
  • Turning and tilting (360°/90°)
  • With integral collimator SSP, SP or MFL
  • Supply unit not included
  • Version with DALI on request

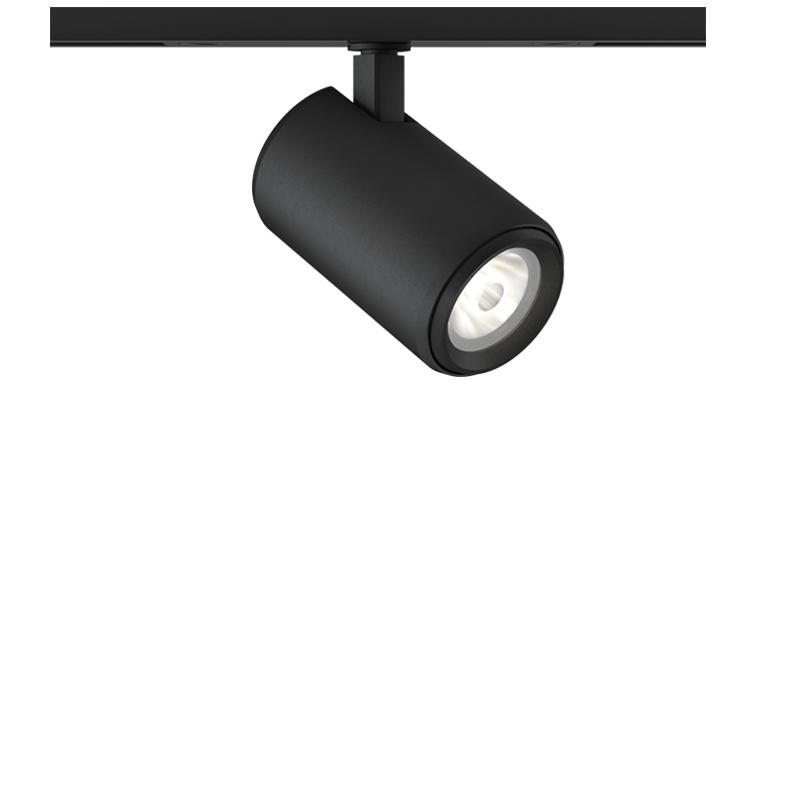

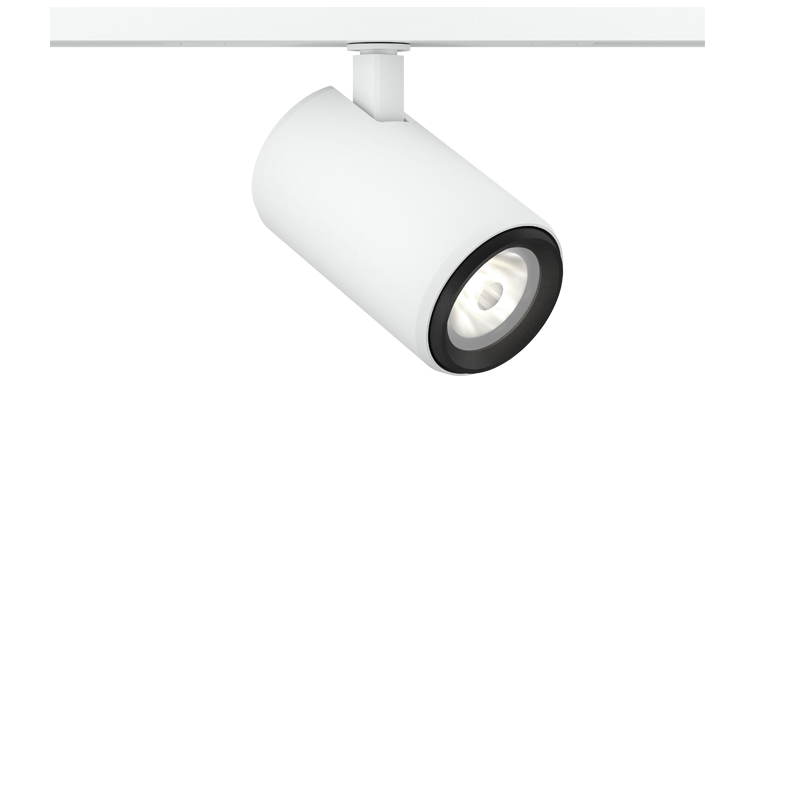

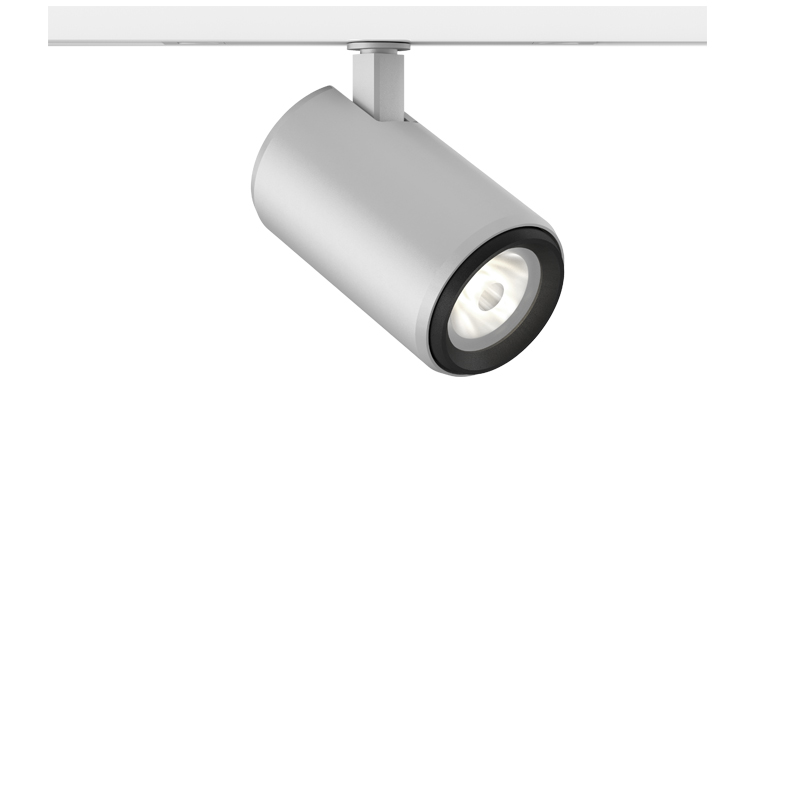

  • Colours: white, anthracite, silver on request

Product details

Power level [W]

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
830864lm9,9W96
927698lm9,9W78
930735lm9,9W82
940772lm9,9W86
P System : The value can be up to 10% higher.

More information

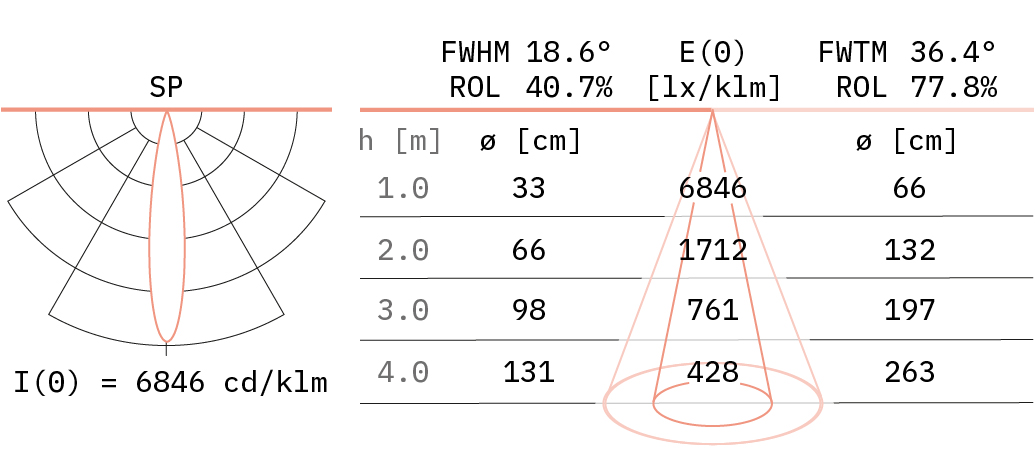

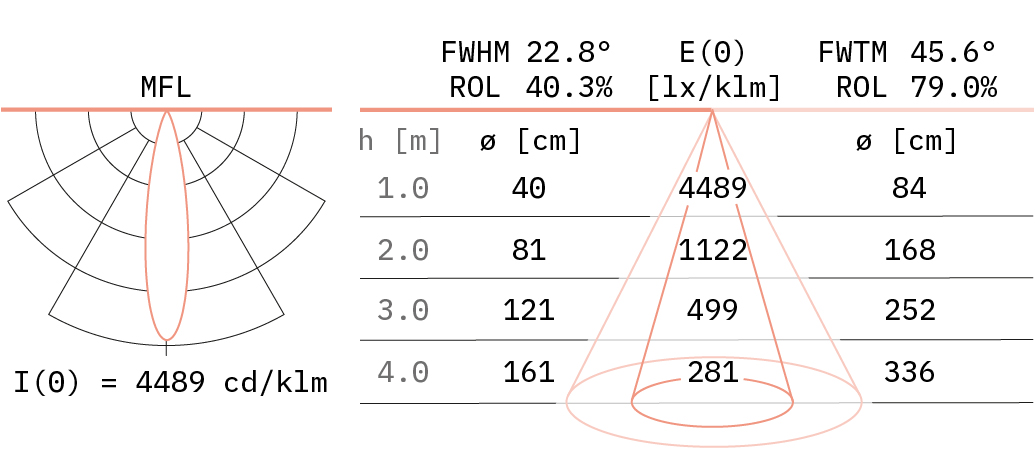

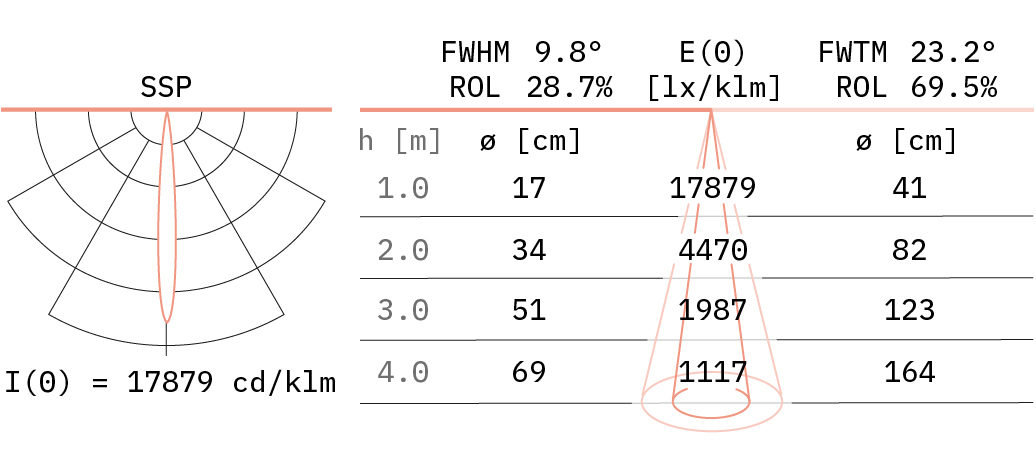

Lighting distribution

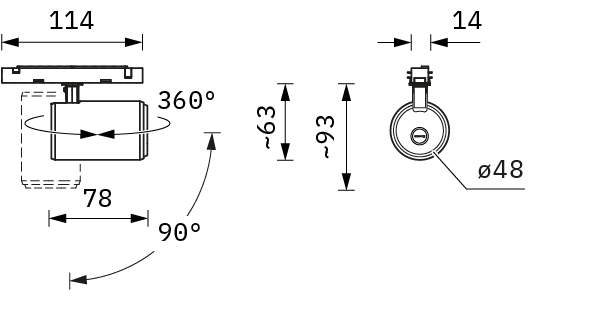

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,2 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG2
Number per circuit breaker B 16A-
Protection class3
Type of protectionIP20



Documents and Downloads

Here you find all downloads for our luminaire Coray CXS.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Coray CXS 62BD0695-A_Coray_CXS.pdfPDF | 1,014.7 KB
Technical data sheet Coray_CXS_EN_01.pdfPDF | 365.1 KB
LDT data Coray CXS Coray_CXS.zipZIP | 375.4 KB
