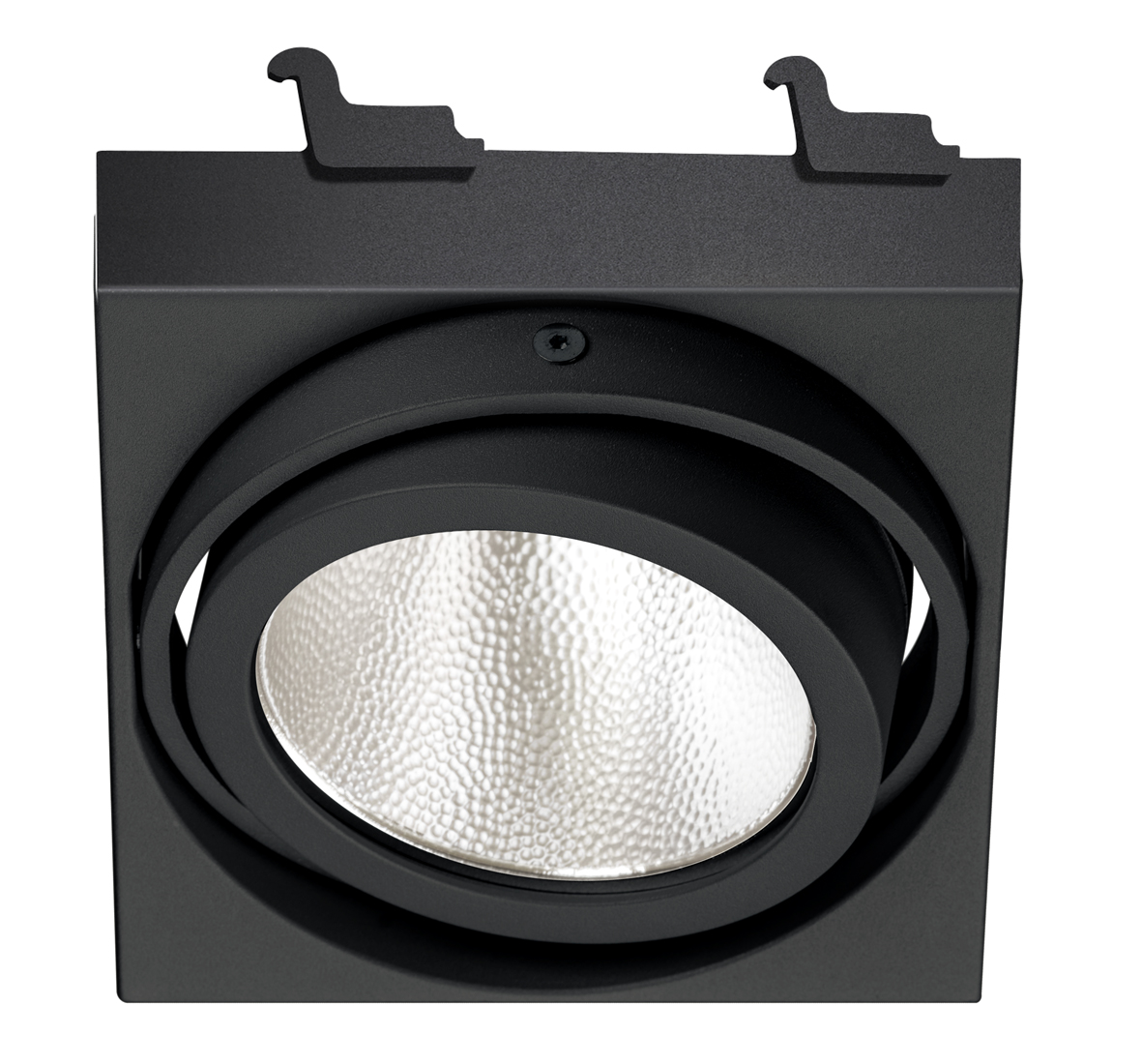

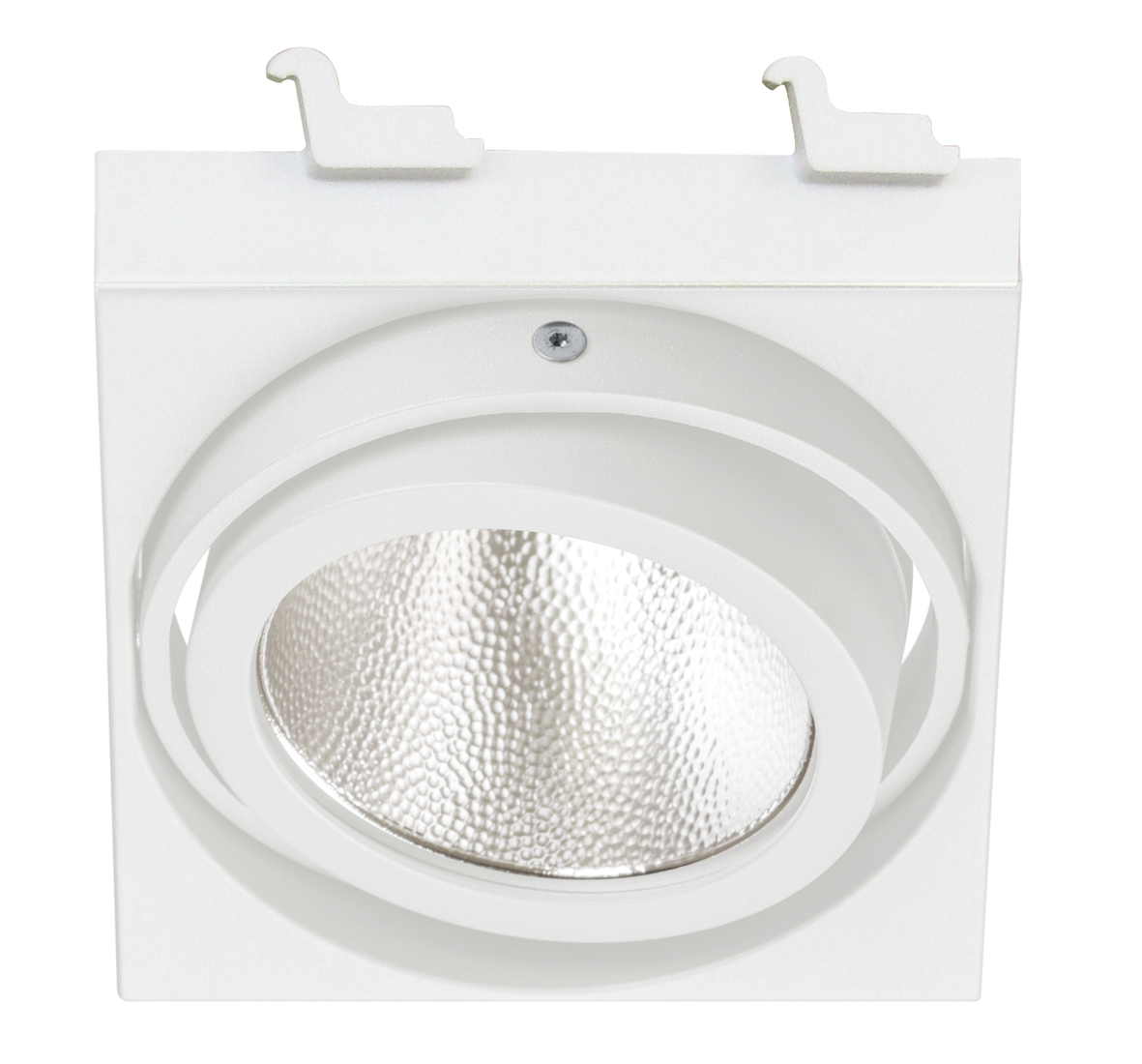

Lightstripe LCL

  • Lighting technology LED
  • Function panel (single module) with recessed
    spotlight, gimbal-mounted
  • Fitting of the function panel in the frame without the
    use of tools
  • Floor and wall mounting not permitted
  • Turning and tilting (360°/35°)
  • With integral reflector SP, MFL, FL or WFL
  • Supply unit included
  • Connection to power supply by Wieland plug
    GST18i3; wire length l = 0.5 m
  • Version with DALI or Casambi on request
    (Casambi not compatible with metal ceilings)
  • Colours : white, anthracite

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8302532lm19W133
8402658lm19W140
9272062lm19W109
N271536lm19W81
9302169lm19W114
9402279lm19W120
930PW2077lm19W109
8302978lm23W129
8403127lm23W136
9272426lm23W105
N271803lm23W78
9302552lm23W111
9402681lm23W117
930PW2438lm23W106
8303405lm27W126
8403575lm27W132
9272774lm27W103
N272055lm27W76
9302917lm27W108
9403065lm27W114
930PW2779lm27W103
8303807lm31W123
8403998lm31W129
9273101lm31W100
N272290lm31W74
9303433lm31W111
9403428lm31W111
930PW3095lm31W100
8304196lm35W120
8404405lm35W126
9273417lm35W98
N272517lm35W72
9303595lm35W103
9403778lm35W108
930PW3397lm35W97
Nmeat1604lm35W46
P System : The value can be up to 10% higher.

More information

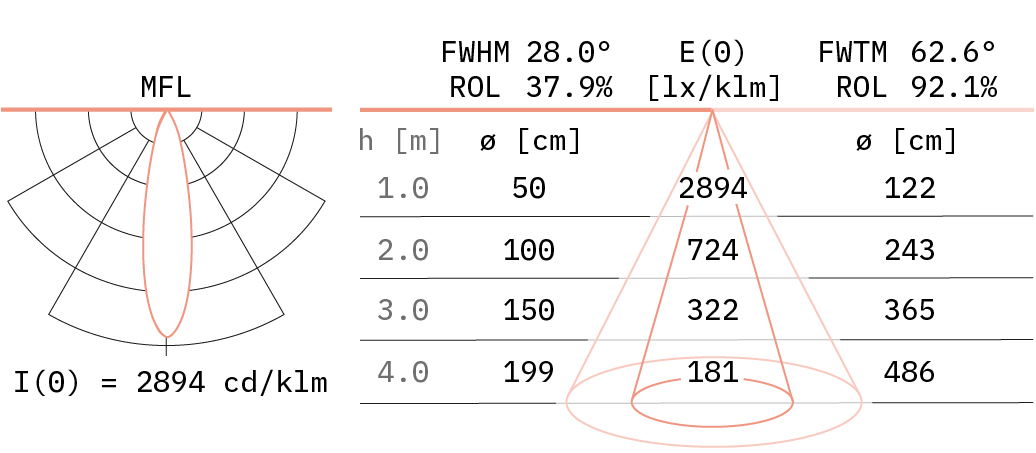

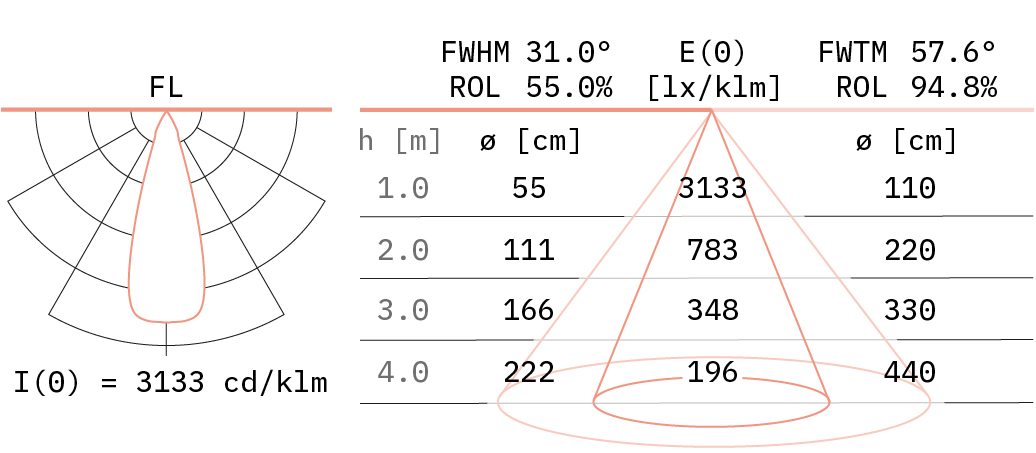

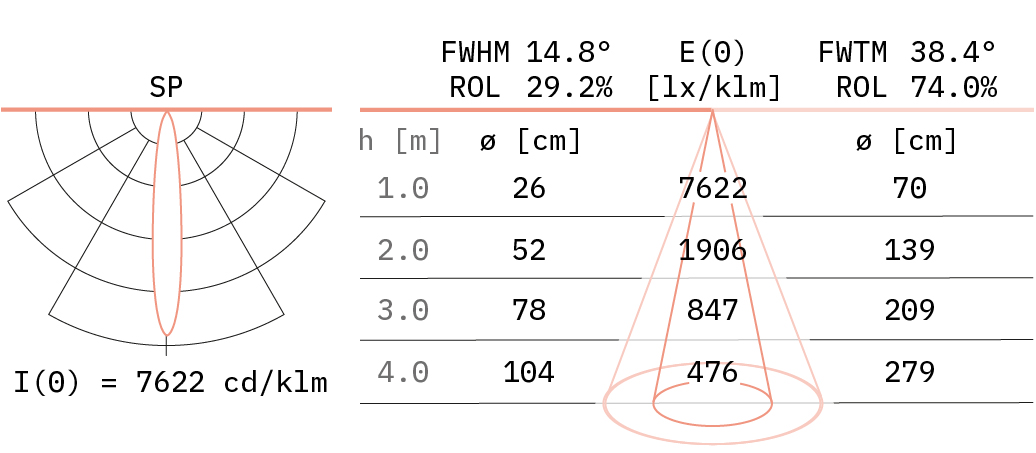

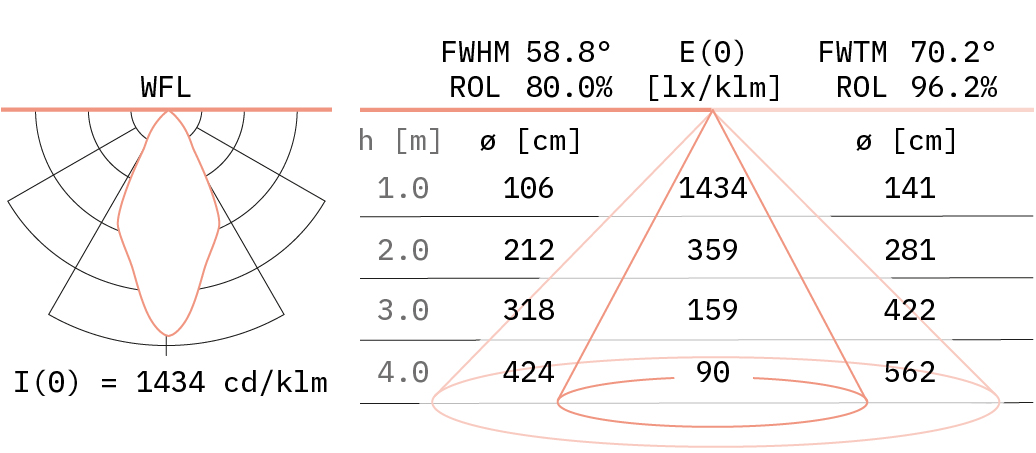

Lighting distribution

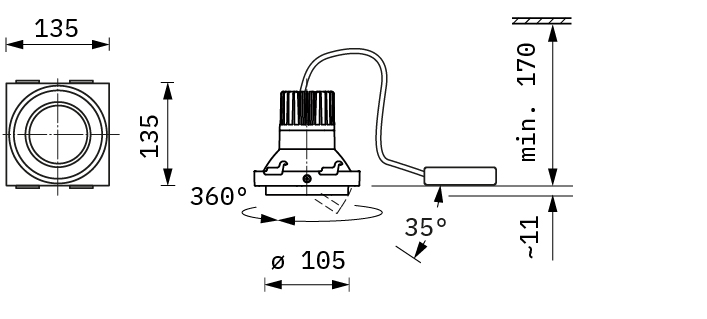

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 1,0 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A34
Protection class1
Type of protectionIP20
Certification mark

Documents and Downloads

Here you find all downloads for our luminaire Lightstripe LCL.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Lightstripe LCL 62BD0557-E_Lightstripe_LCL.pdfPDF | 2.0 MB
Technical data sheet Lightstripe LCL Lightstripe_LCL_EN_01.pdfPDF | 204.4 KB
LDT data Lightstripe LCL Lightstripe_LCL.zipZIP | 413.9 KB
