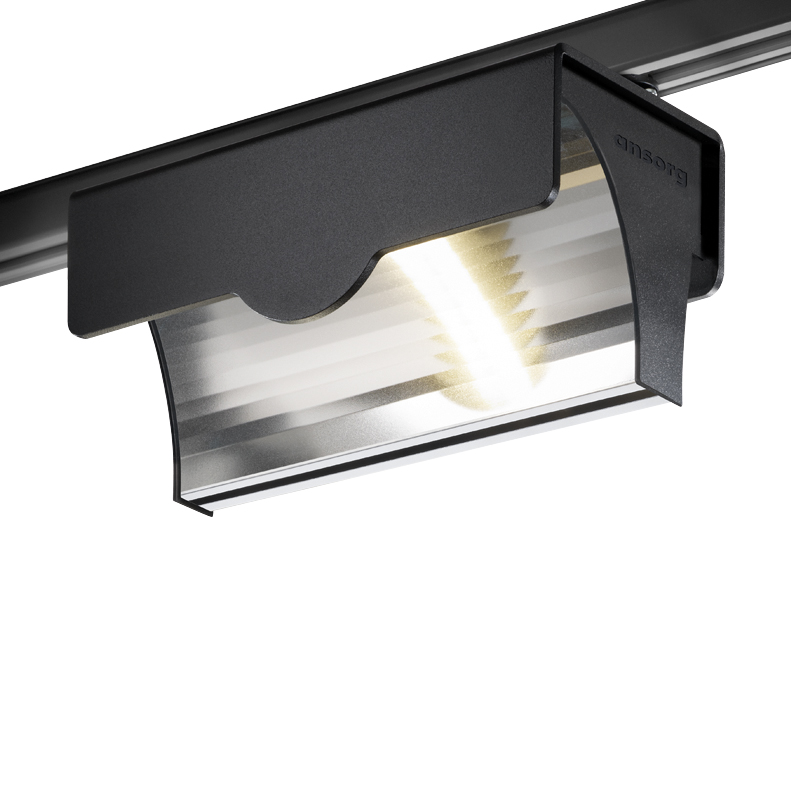

Navo NSK DF

  • Lighting technology LED
  • Spotlight as directional washer
  • Tool-less mounting with track adapter for three-circuit track
  • Ceiling mounting and wall mounting not permitted
  • Adapter turnable (180°)
  • With integral reflector DF-NB or reflector DF-NX
  • Interchangeable reflectors
  • Supply unit included
  • DALI lighting control system on request

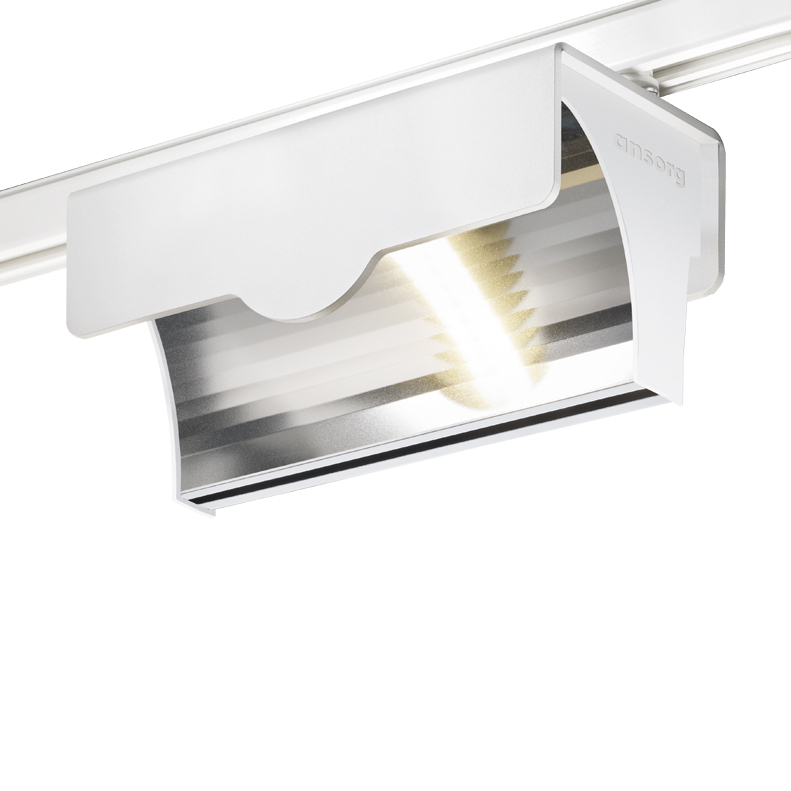

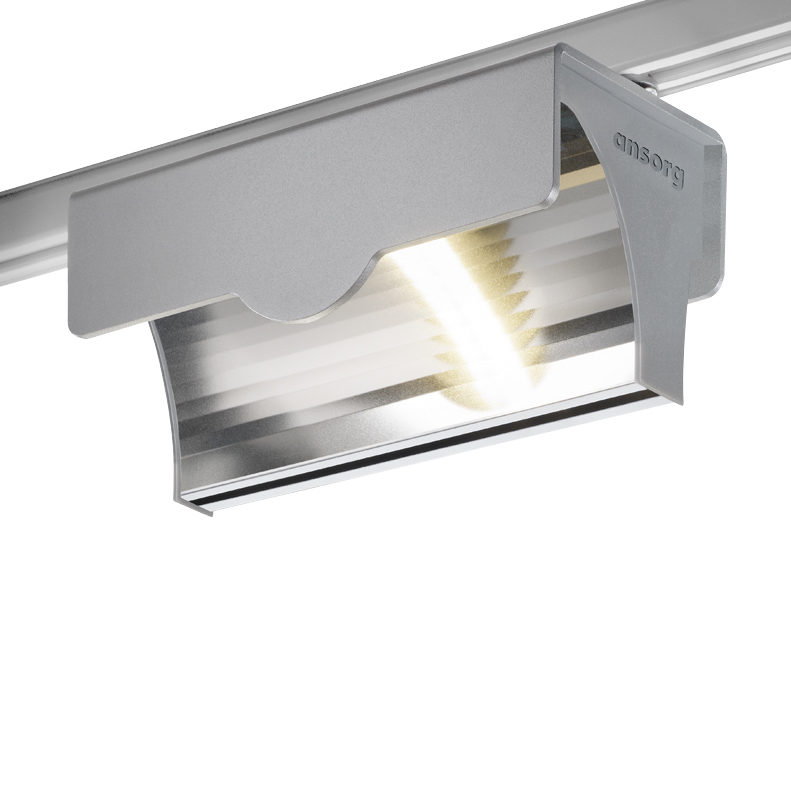

  • Colours: white, anthracite, silver (on request)

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8303842lm26W148
8404045lm26W156
9273130lm26W120
9303306lm26W127
8304781lm34W141
8405034lm34W148
9273896lm34W115
9304115lm34W121
8307684lm52W148
8408090lm52W156
9276260lm52W120
9306613lm52W127
8309562lm68W141
84010068lm68W148
9277791lm68W115
9308230lm68W121
P System : The value can be up to 10% higher.

More information

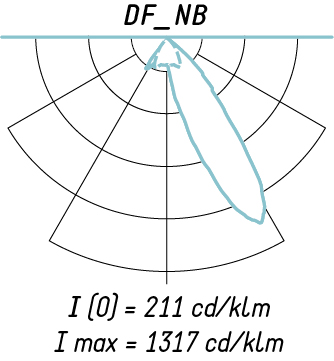

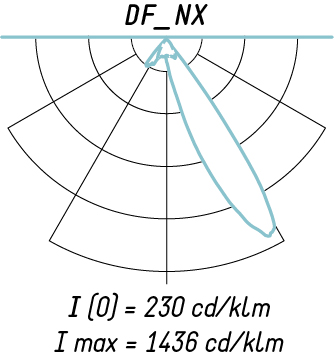

Lighting distribution

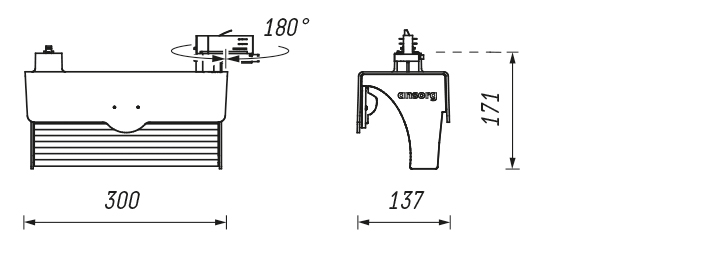

Technical drawing

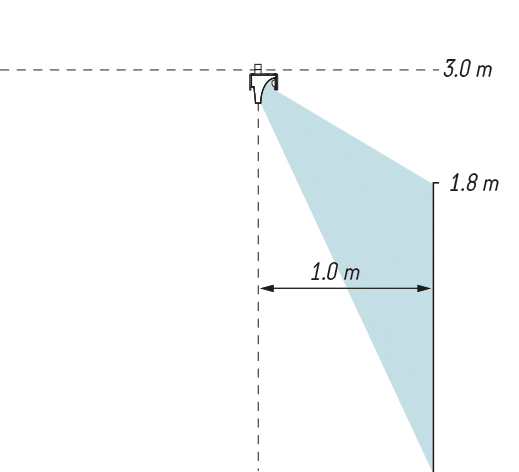

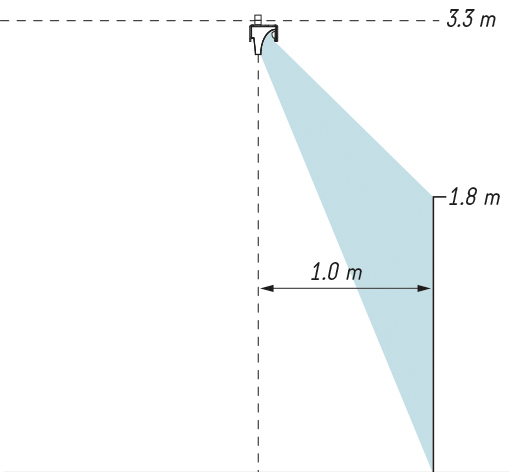

Planning information

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 1,6 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A   34 / 24
Protection class1
Type of protectionIP20
Certification markENEC / EAC

Documents and Downloads

Here you find all downloads for our luminaire Navo NSK DF.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Navo NSK DF 62BD0585-E_Navo_NSK_DF.PDFPDF | 1.7 MB
Technical data sheet Navo NSK DF Navo_NSK_DF_EN_01.pdfPDF | 330.0 KB
LDT data Navo NSK DF Navo_NSK_DF.zipZIP | 801.4 KB
