Navo NSW

  • Lighting technology LED
  • Wallwasher
  • Tool-less mounting with track adapter for three-circuit track
  • Ceiling mounting and wall mounting not permitted
  • Adapter turnable (180°)
  • With integral reflector WW
  • Supply unit included
  • DALI lighting control system on request

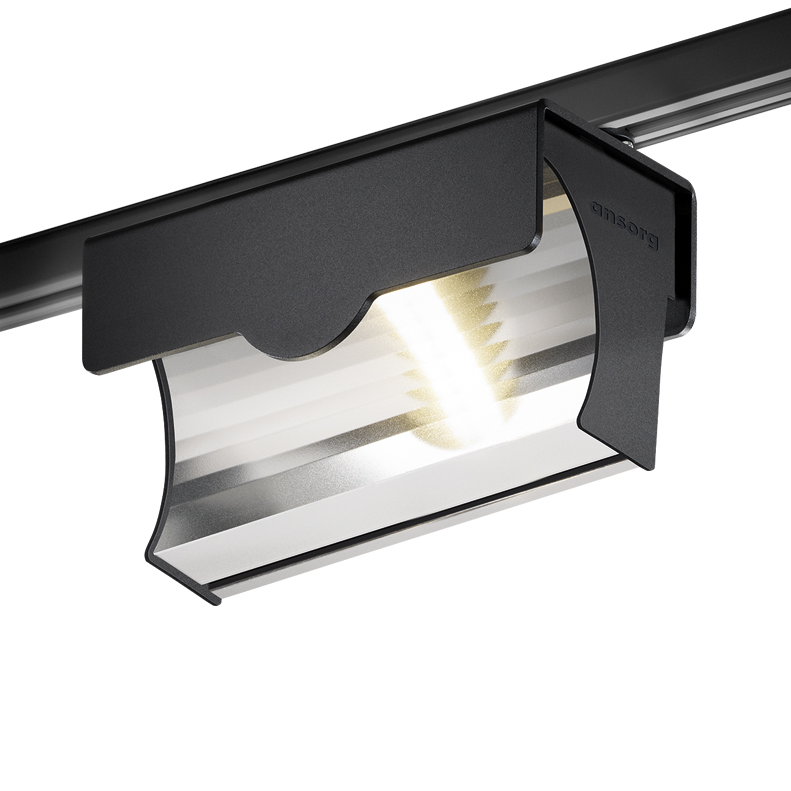

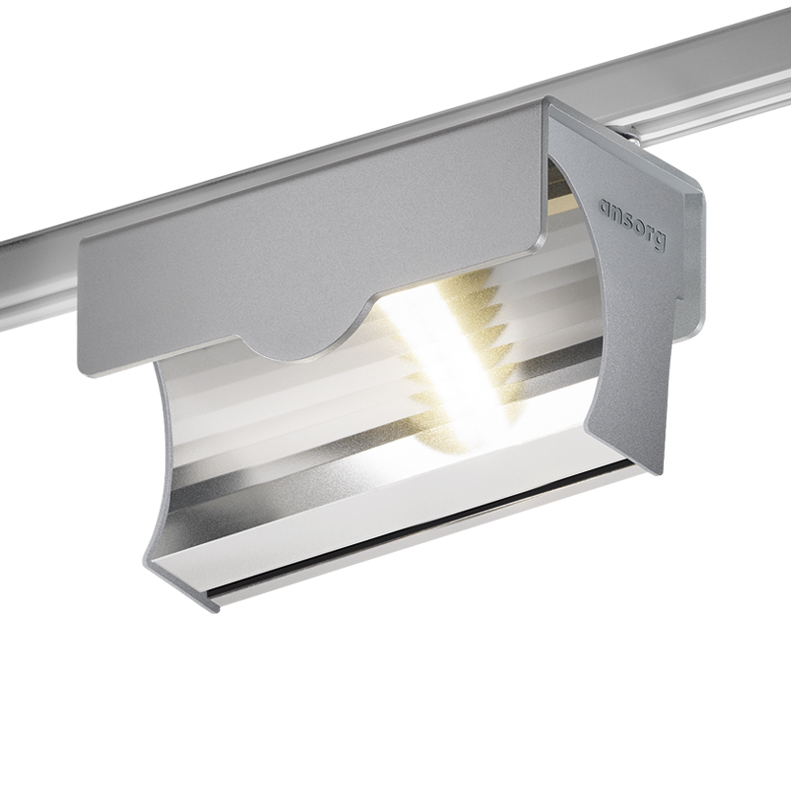

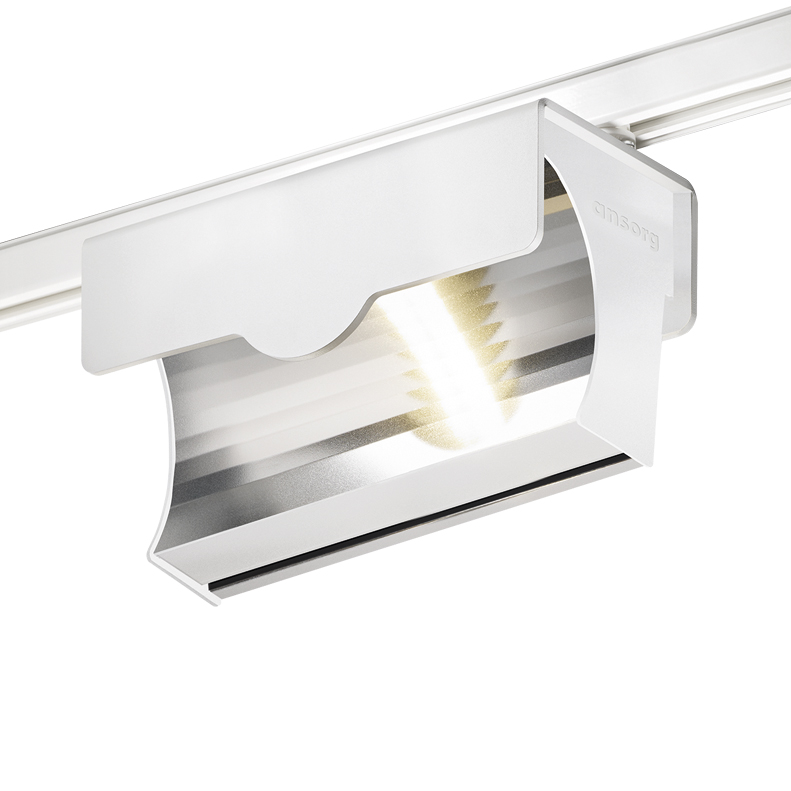

  • Colours: white, anthracite, silver (on request)

Product details

Power level [W]

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8303967lm26W153
8404177lm26W161
9273232lm26W124
9303415lm26W131
9403579lm26W138
930PW3243lm26W125
8304937lm34W145
8405198lm34W153
9274022lm34W118
9304249lm34W125
9404454lm34W131
Meat2365lm34W70
930PW4008lm34W118
Nmeat1884lm34W55
P System : The value can be up to 10% higher.

More information

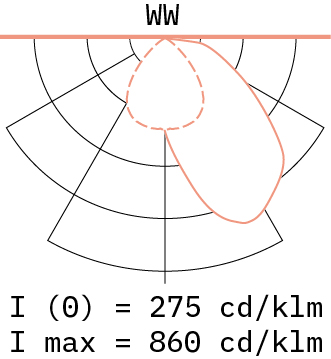

Lighting distribution

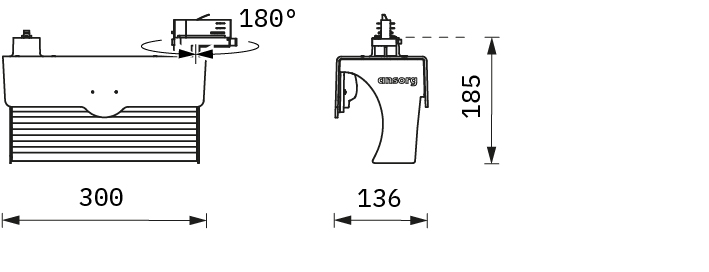

Technical drawing

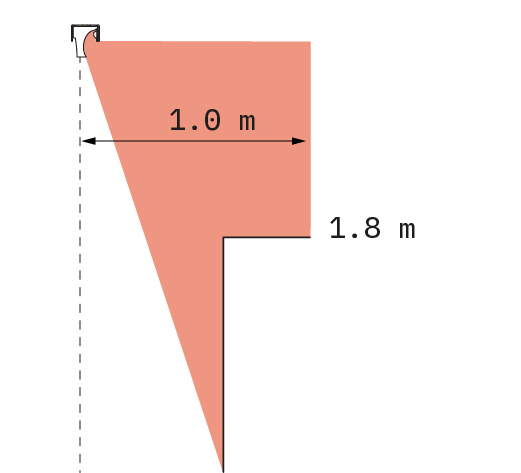

Planning information

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 2,1 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A34/24
Protection class1
Type of protectionIP20
Certification markENEC / EAC

Documents and Downloads

Here you find all downloads for our luminaire Navo NSW.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Navo NSW 62BD0585-E_Navo_NSW.PDFPDF | 1.7 MB
Technical data sheet Navo NSW Navo_NSW_EN_01.pdfPDF | 272.9 KB
LDT data Navo NSW Navo_NSW.zipZIP | 624.2 KB
