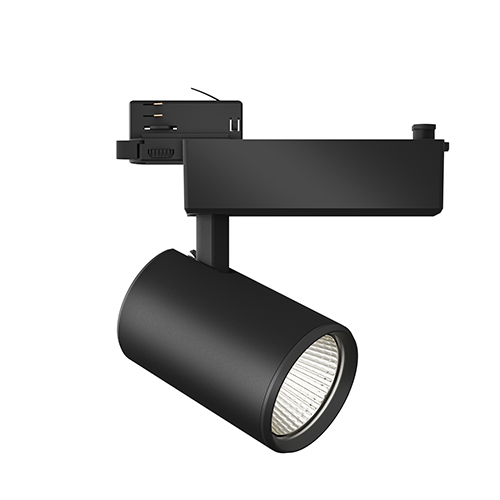

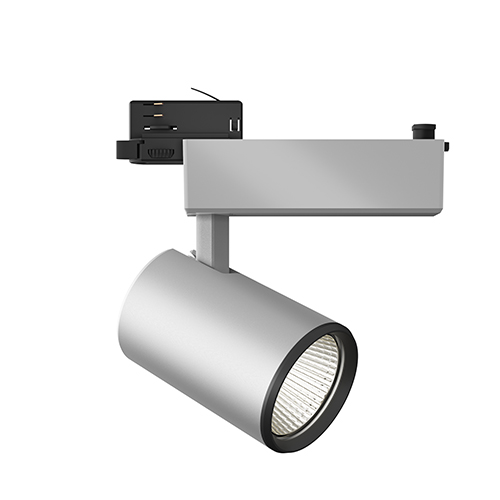

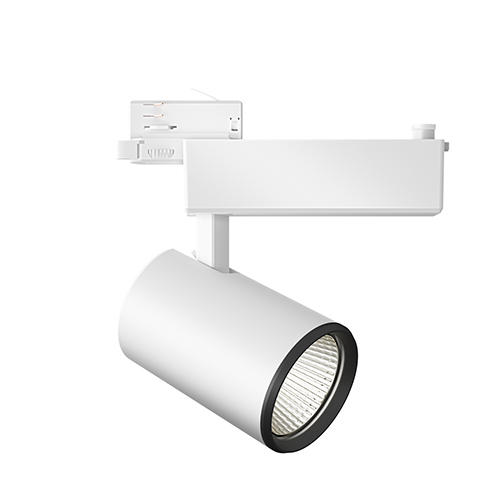

Iqona IMM

  • Lighting technology LED
  • Tool-less mounting with track adapter for three-circuit track
  • Turning and tilting (360°/110°)
  • With integral reflector SSP, SP, MFL, FL, WFL, VWFL or included adjustable lens (SP - MFL - FL)
  • Supply unit included
  • Colours: white, anthracite, silver (on request)

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8302415lm19W127
8402536lm19W133
9271967lm19W104
N271466lm19W77
9302069lm19W109
9402175lm19W114
930PW1981lm19W104
8302841lm23W124
8402983lm23W130
9272314lm23W101
N271720lm23W75
9302434lm23W106
9402558lm23W111
930PW2326lm23W101
8303249lm27W120
8403410lm27W126
9272646lm27W98
N271960lm27W73
9302783lm27W103
9402924lm27W108
930PW2651lm27W98
8303632lm31W117
8403814lm31W123
9272958lm31W95
N272185lm31W70
9303112lm31W100
9403270lm31W105
930PW2952lm31W95
8304003lm35W114
8404202lm35W120
9273260lm35W93
N272401lm35W69
9303430lm35W98
9403604lm35W103
930PW3241lm35W93
Nmeat1531lm35W44
P System : The value can be up to 10% higher.

More information

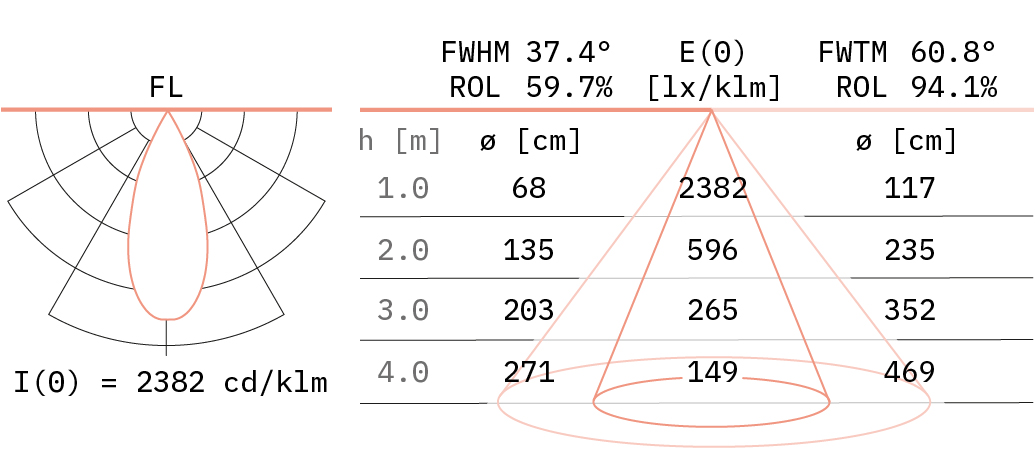

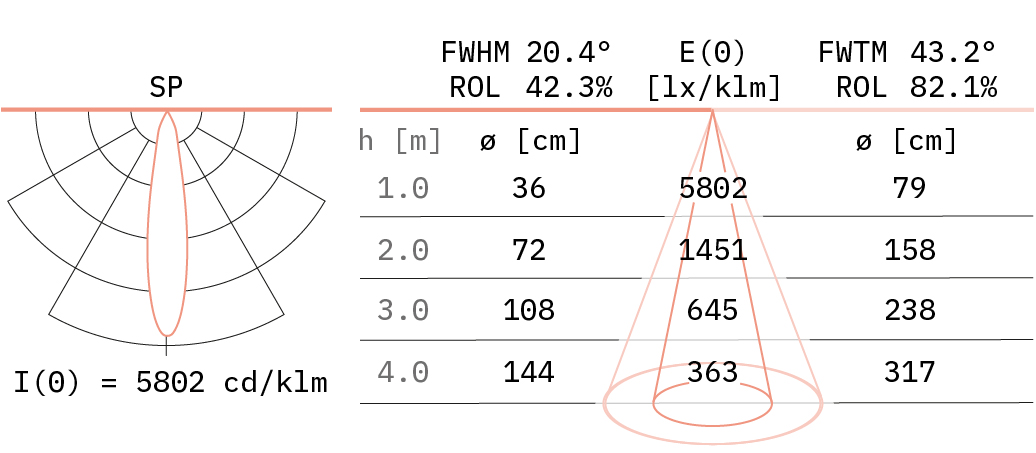

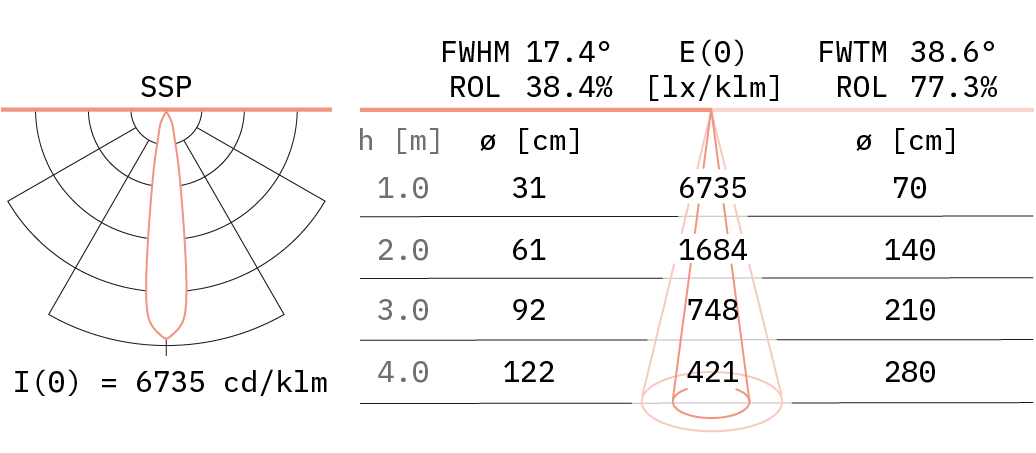

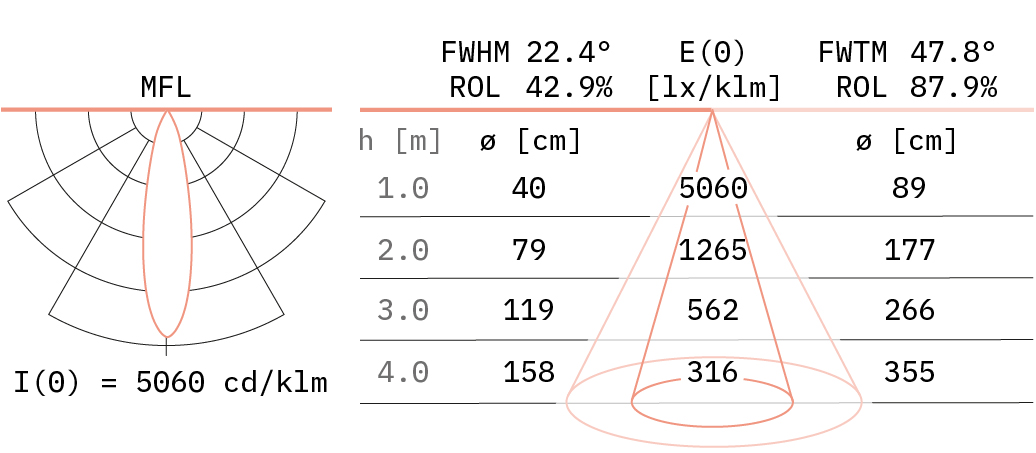

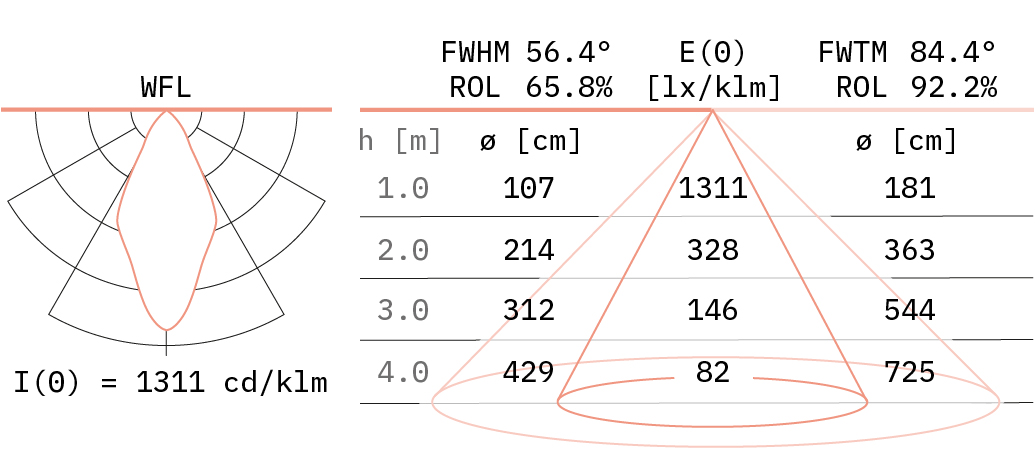

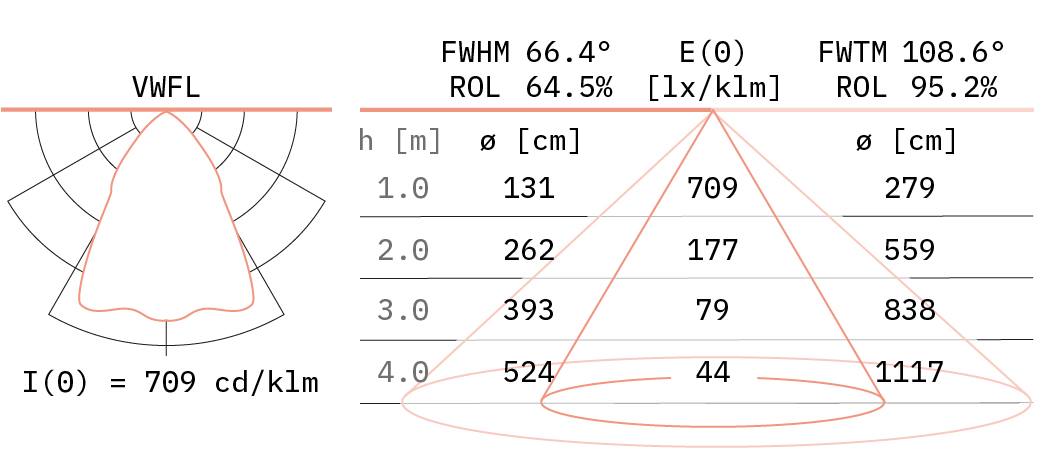

Light distribution (with reflector)

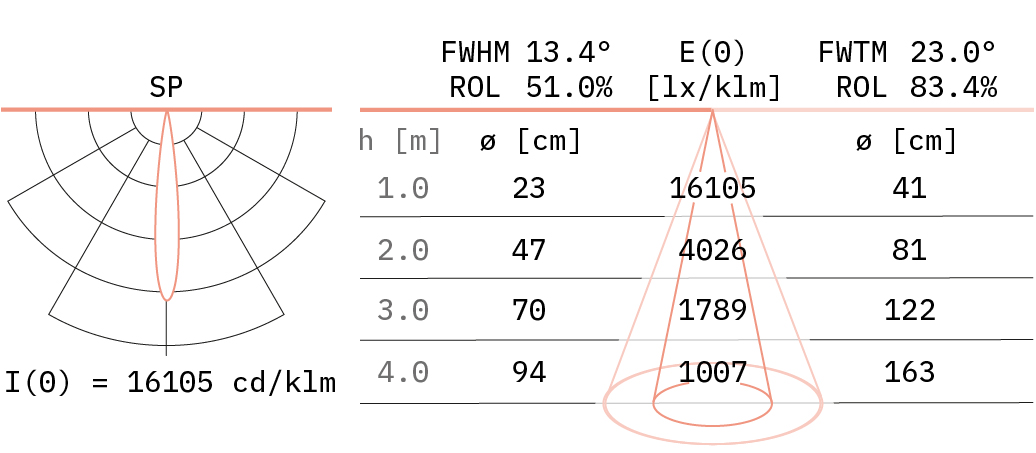

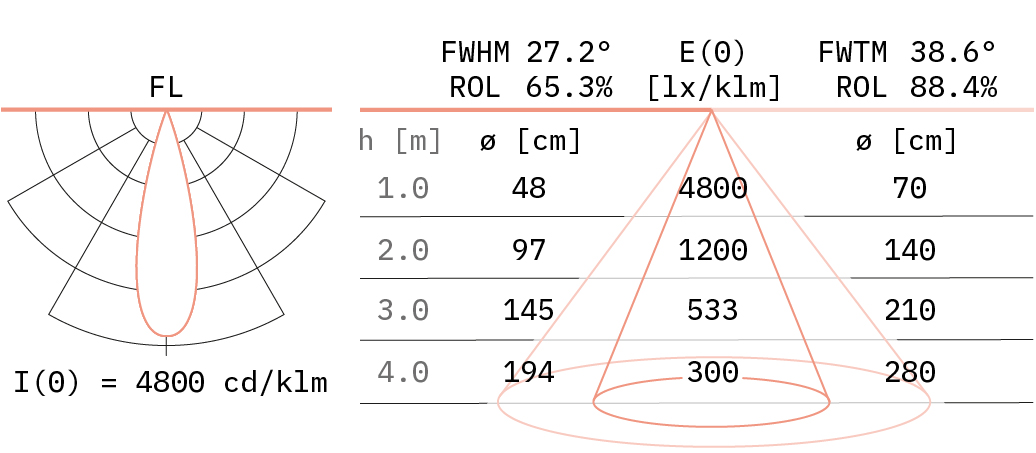

Light distribution (with lens)

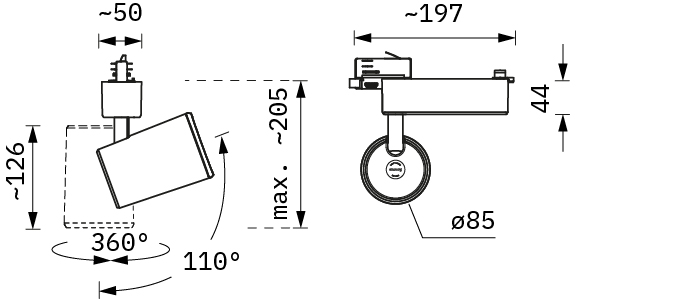

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,9 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A25
Protection class1
Type of protectionIP20
Certification markENEC / CB

Documents and Downloads

Here you find all downloads for our luminaire Iqona IMM.



TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Iqona IMM 62BD0742-B_Iqona_IMM.pdfPDF | 973.5 KB
LDT data Iqona IMM Iqona_IMM.zipZIP | 437.4 KB
DATA_Iqona_IMM_EN.pdf DATA_Iqona_IMM_EN.pdfPDF | 397.5 KB
