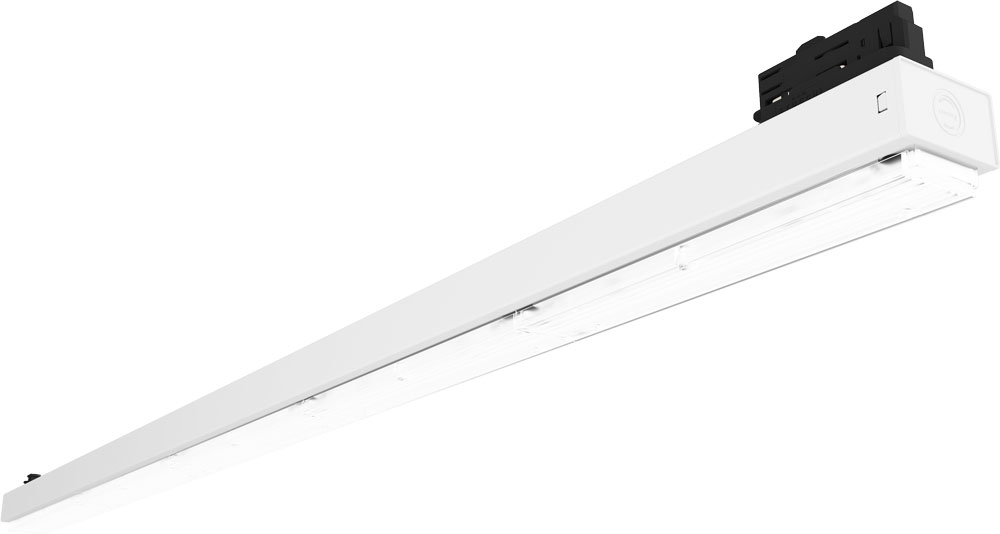

Lintra LLT

  • Lighting technology LED
  • Linear module for three-circuit track
  • Tool-less mounting with track adapter for three-
    circuit track (Global or Stucchi)
  • Lineare optics with beam characteristic DNB, DMB, DWB or WB
  • Supply unit included
  • Version with DALI on request

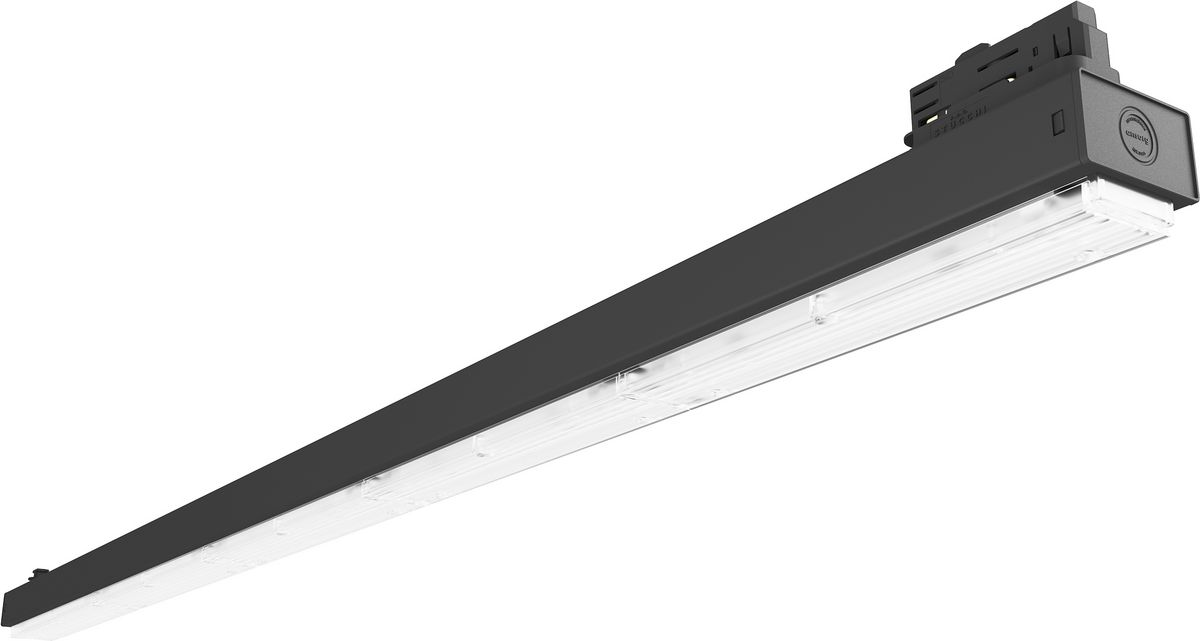

    Colours : white, anthracite

Product details

Power level [W]

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8309460lm63W150
8409460lm63W150
8359460lm63W150
83012198lm71,8W172
83011946lm71,8W168
84012857lm71,8W181
84012592lm71,8W177
83512528lm71,8W176
83512269lm71,8W173
P System : The value can be up to 10% higher.

More information

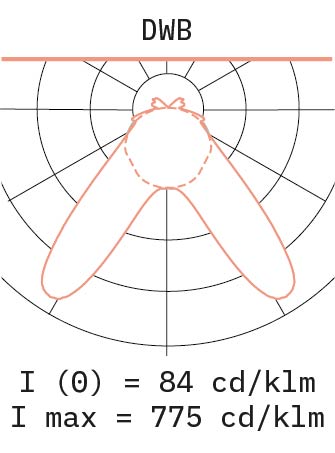

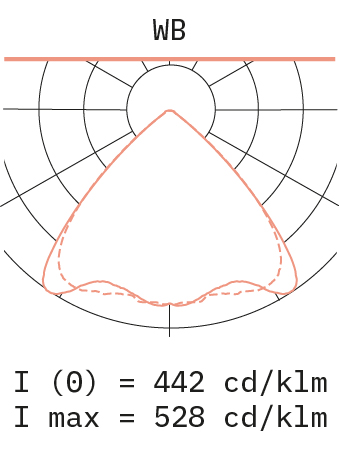

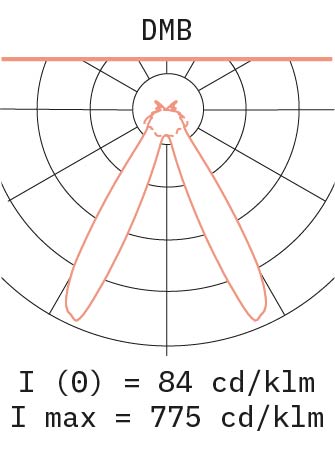

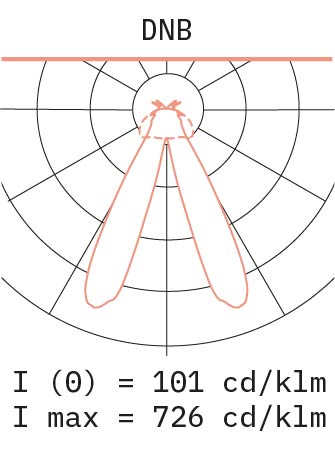

Light distribution

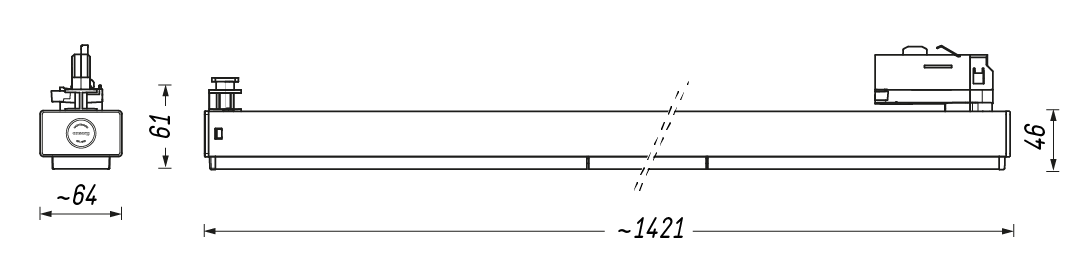

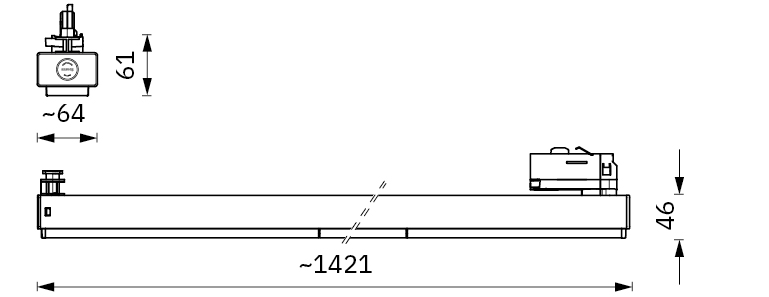

Technical drawing

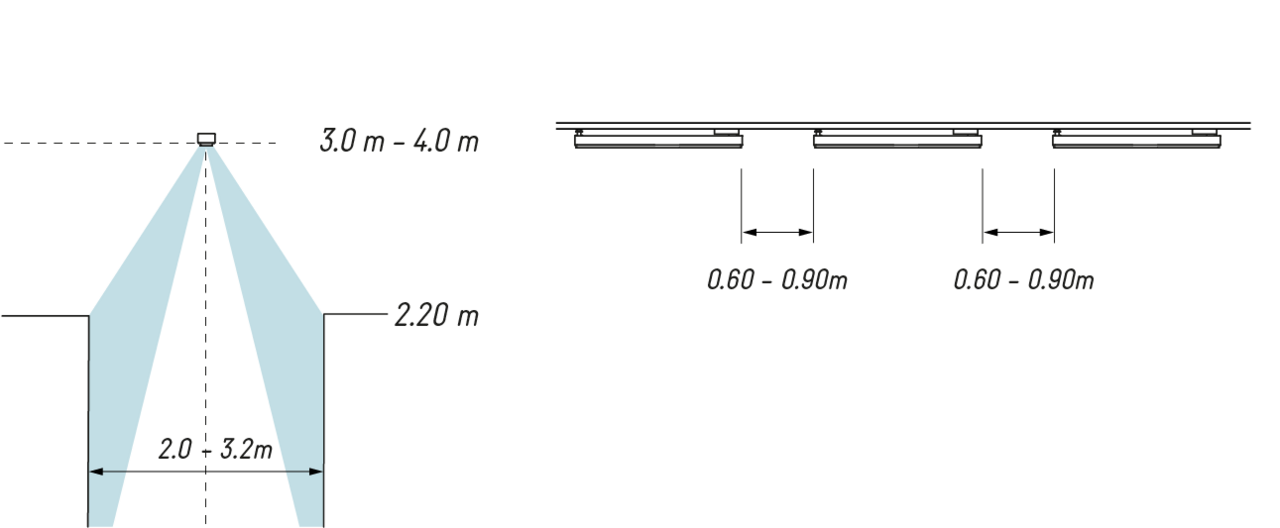

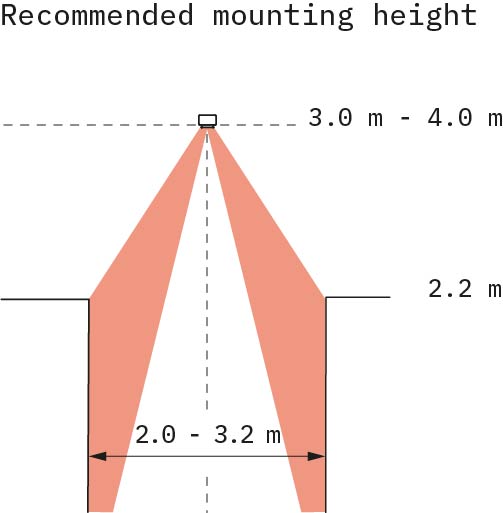

Planning information

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 2,2 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A30
Protection class1
Type of protectionIP20
Certification markENEC / CB in preparation



Documents and downloads


Here you find all downloads for our luminaire Lintra LLT.





TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Linta LLT 62BD0759_Lintra_LLT.pdfPDF | 704.5 KB
Data sheet Lintra LLT DATA_Lintra_LLT_EN.pdfPDF | 497.6 KB
