Bit BMT

  • Lighting technology LED
  • Tool-less mounting with track adapter for three-circuit track or ceiling mounting
  • Wall mounting not permitted
  • Spotlights tilting and turning (360°/120°)
  • With integral reflector SSP, SP, MFL, FL, WFL or VWFL
  • Supply unit included
  • DALI or INspire lighting control system on request
  • Colours: white, anthracite, silver (on request)

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
830241519127
840253619133
927196719104
N2714661977
930206919109
940217519114
Brilliant198119104
830284123124
840298323130
927231423101
N2717202375
930243423106
940255823111
Brilliant232623101
830324927120
840341027126
92726462798
N2719602773
930278327103
940292427108
Brilliant26512798
830363231117
840381431123
92729583195
N2721853170
930311231100
940327031105
Brilliant29523195
NMeat14503443
830400335114
840420235120
92732603593
N2724013569
93034303598
940360435103
Brilliant32413593
NMeat15313544
P System : The value can be up to 10% higher.

More information

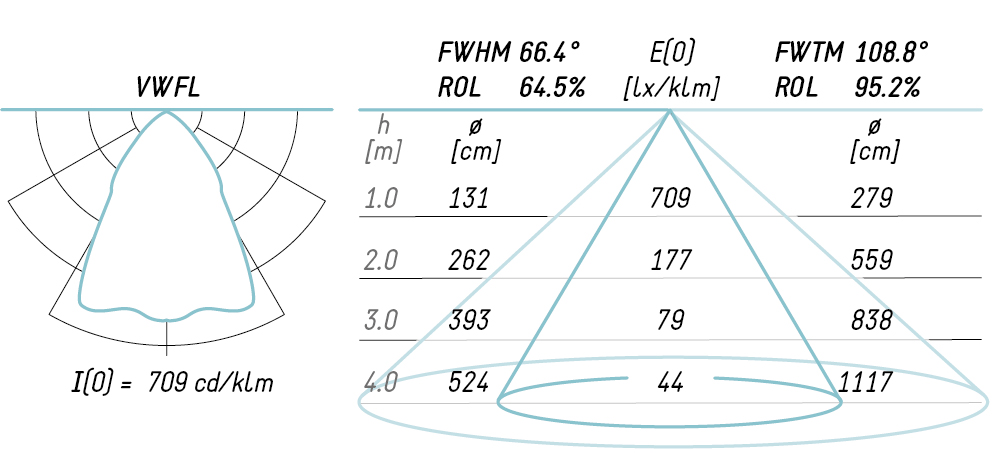

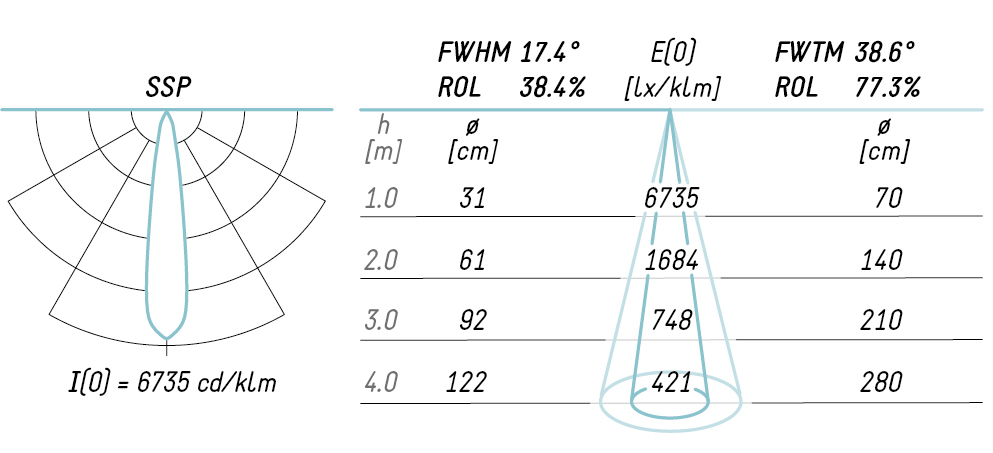

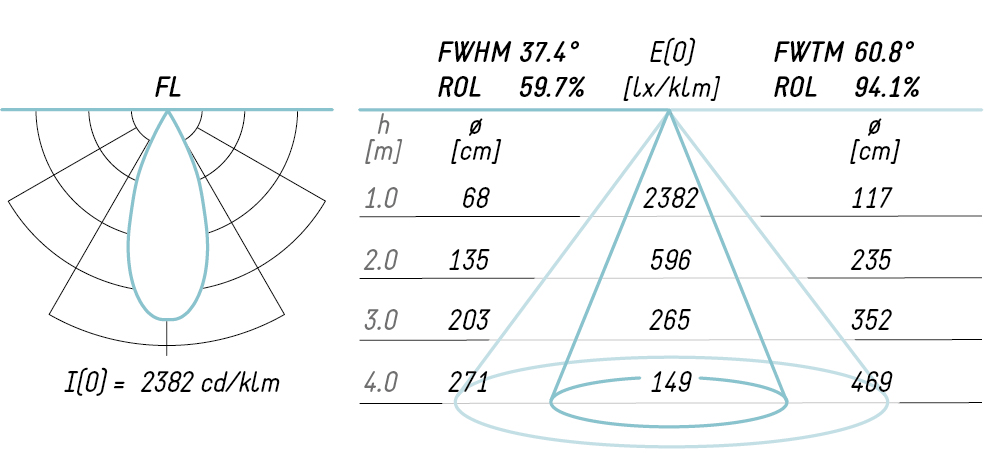

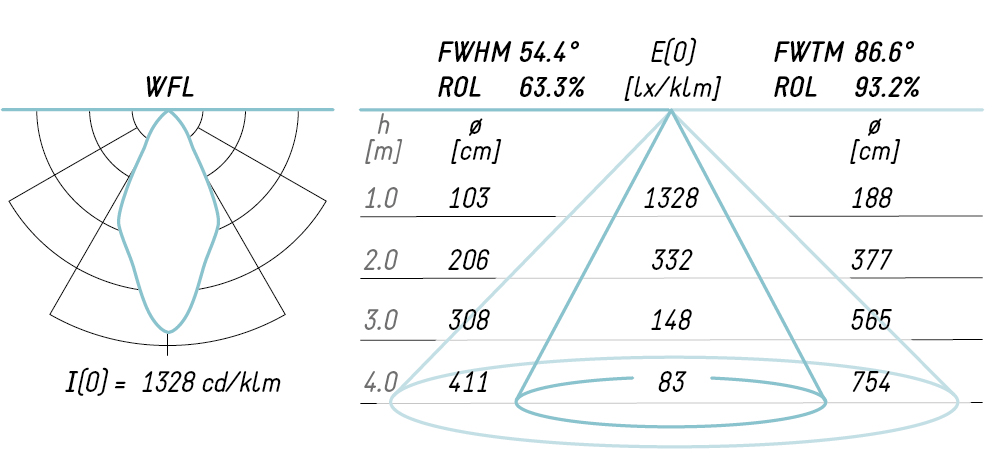

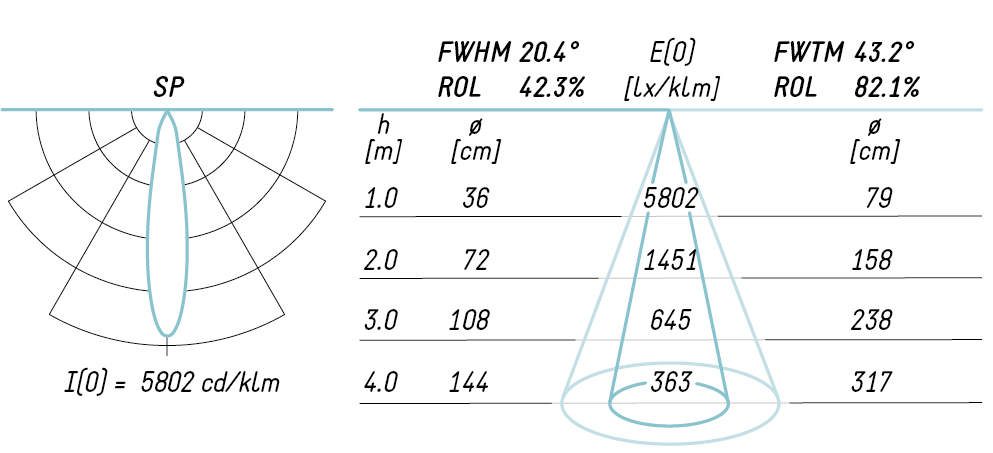

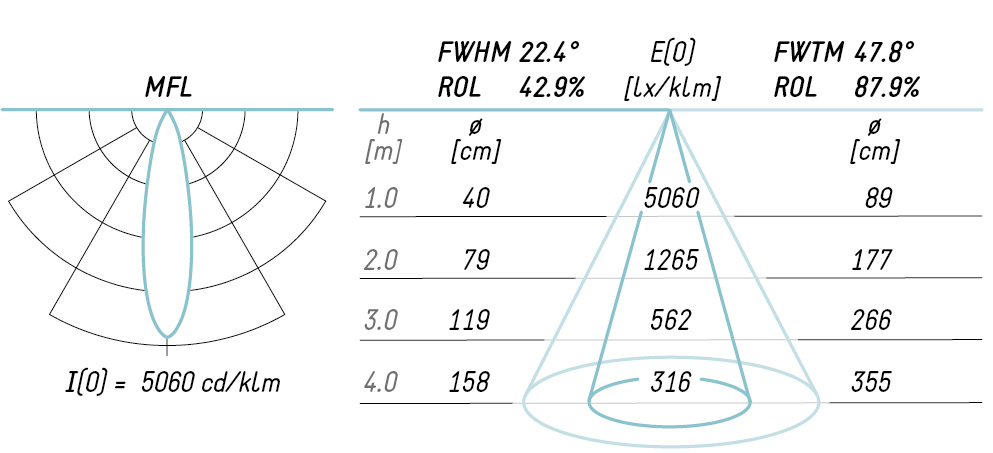

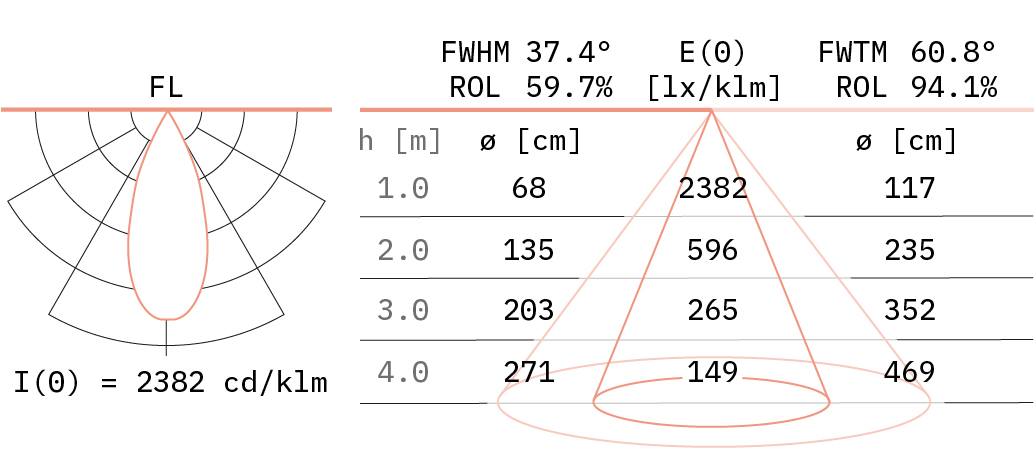

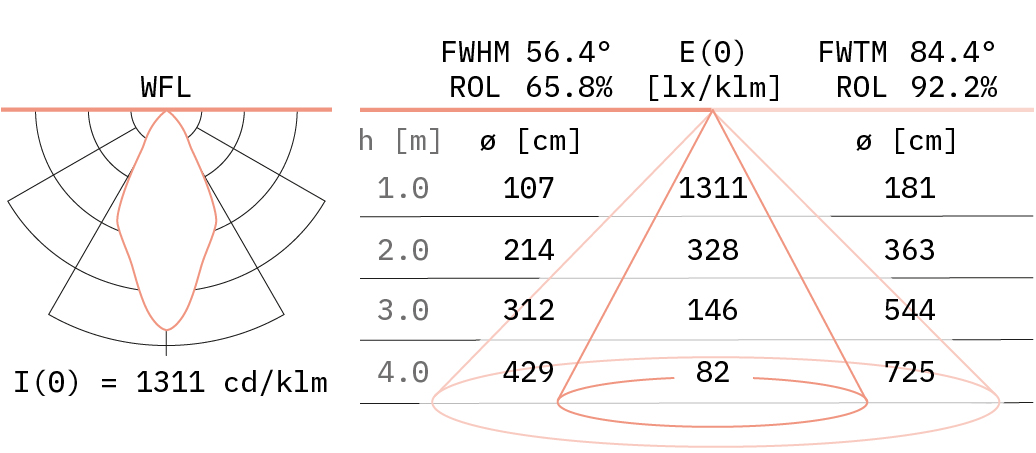

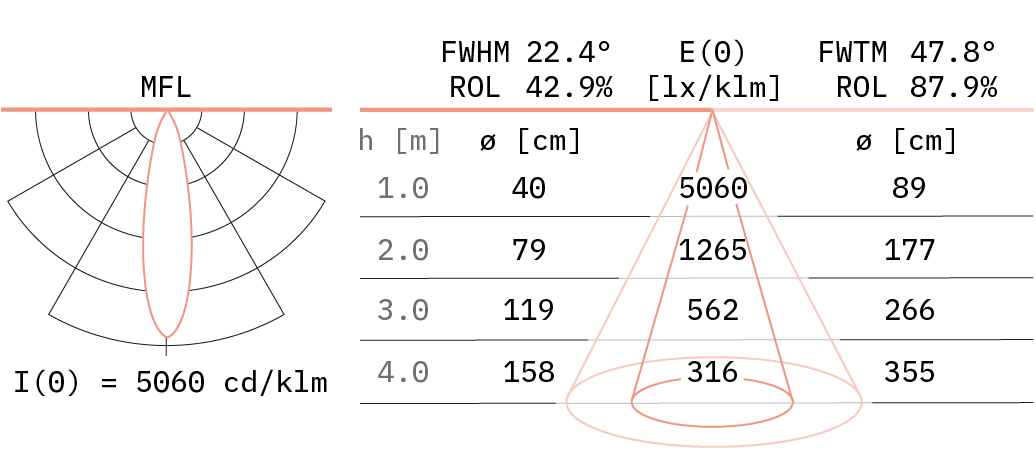

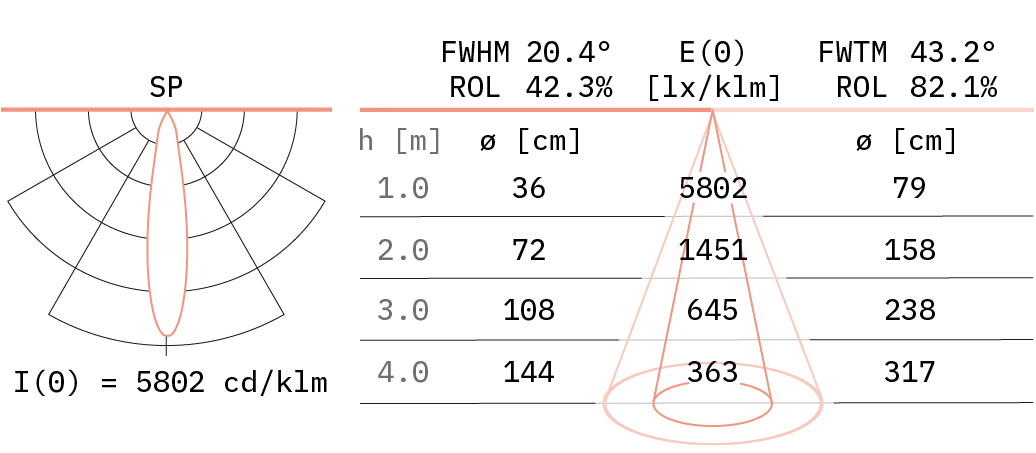

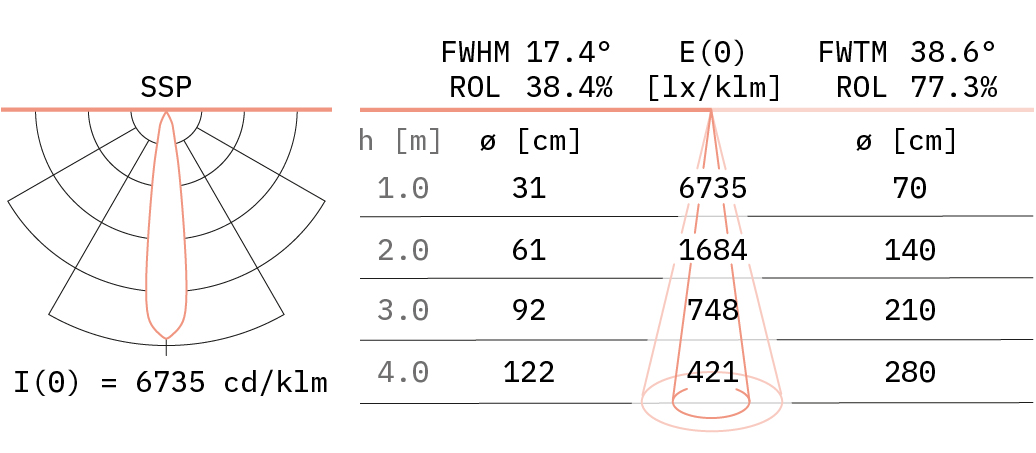

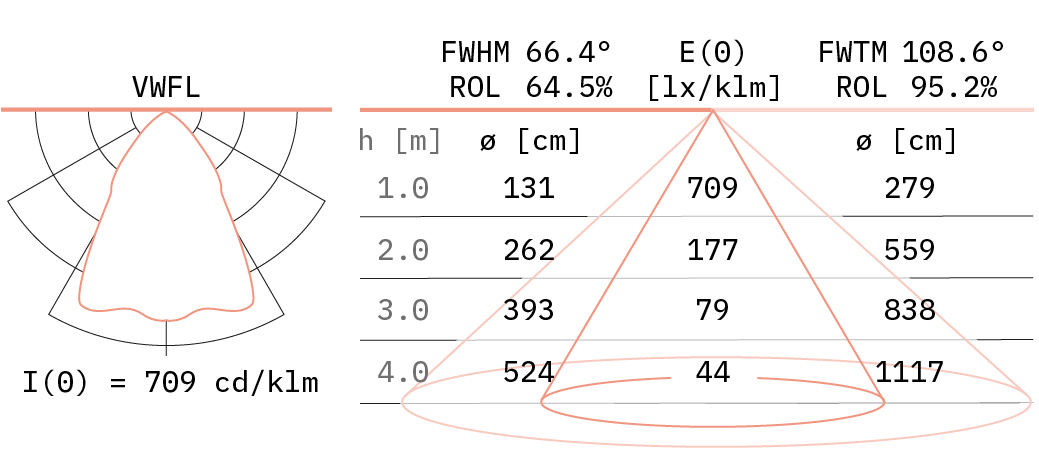

Lighting distribution

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,8 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A34
Protection class2
Type of protectionIP20
Certification markENEC / EAC



Documents and Downloads


Here you find all downloads for our luminaire Bit BMT.



TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Bit BMT 62BD0593-H_Bit_BMT.pdfPDF | 1.3 MB
Technical data sheet Bit_BMT_EN_01.pdfPDF | 736.2 KB
LDT data Bit BMT Bit_BMT.zipZIP | 433.9 KB
