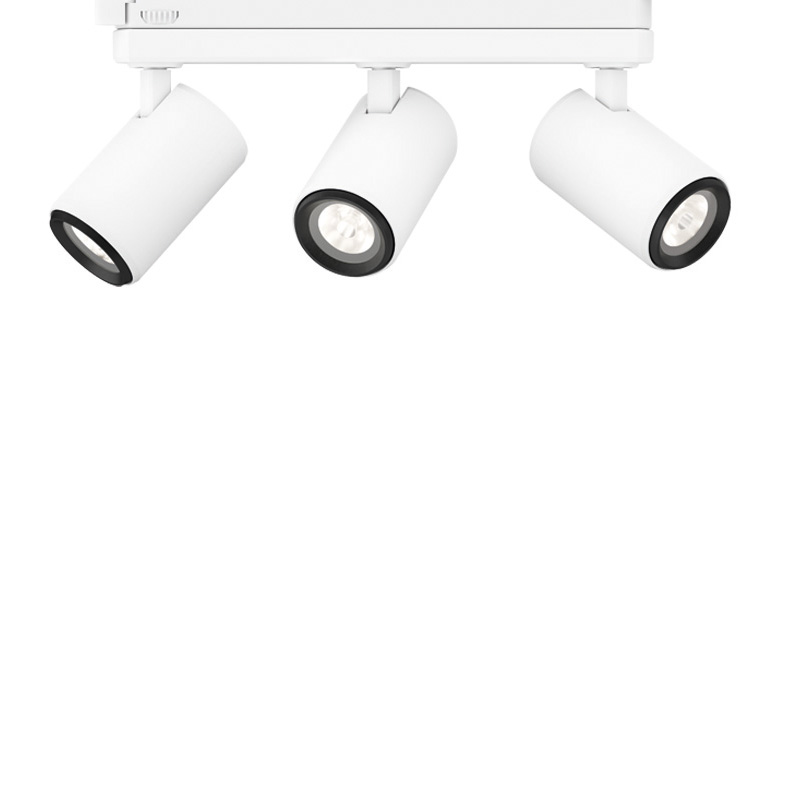

Coray CXT

  • Lighting technology LED
  • Tool-less mounting with track adapter for
    three-circuit track
  • Floor and wall mounting not permitted
  • Turning and tilting (360°/90°)
  • With integral collimator SSP, SP or MFL
  • Supply unit included
  • Version with DALI on request

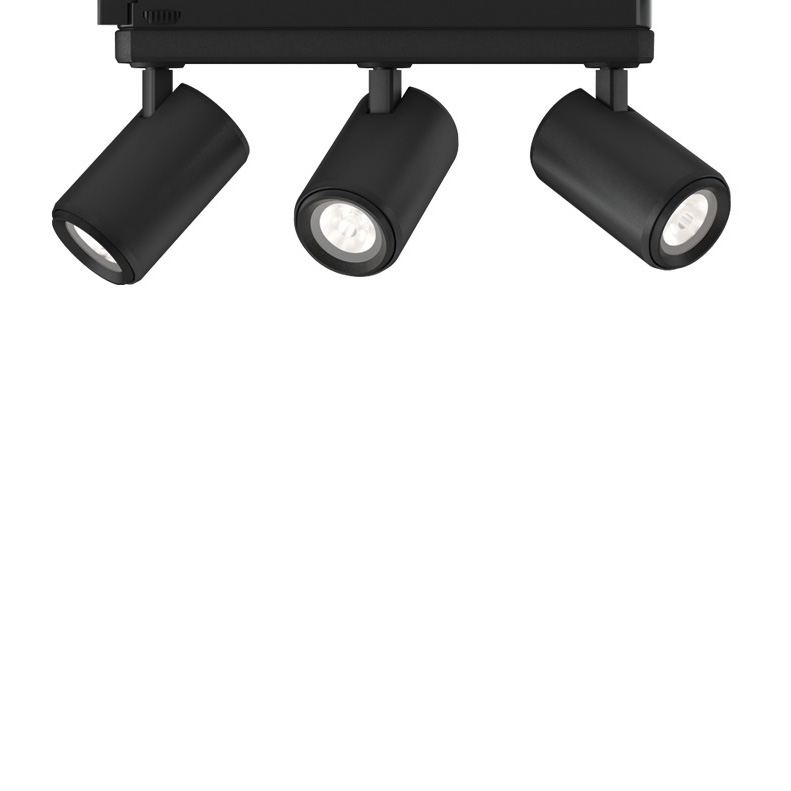

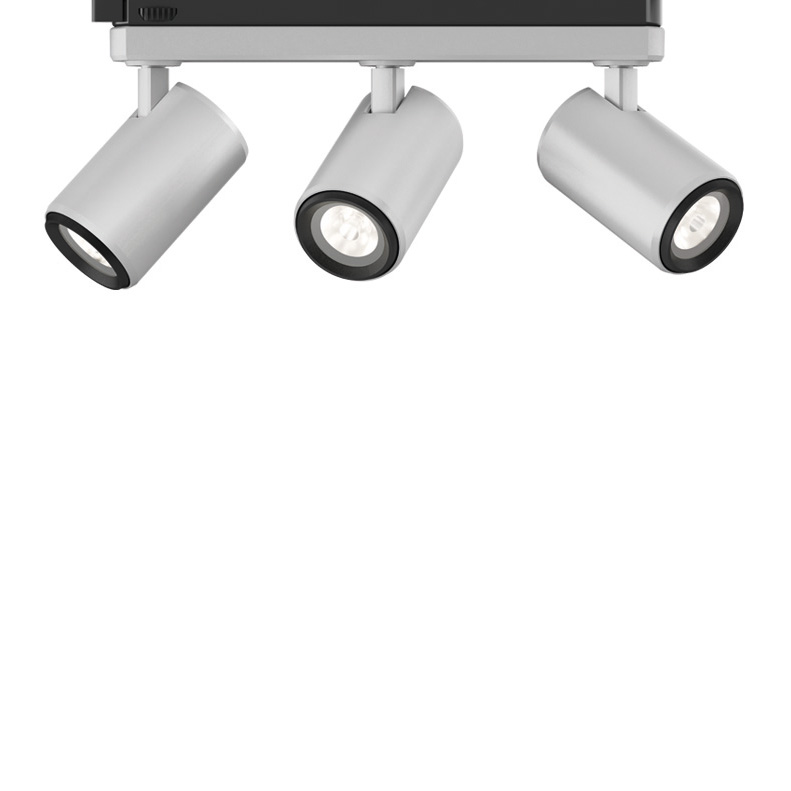

  • Colours: white, anthracite, silver on request

Product details

Power level [W]

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8302594lm27,9W96
9272094lm27,9W78
9302205lm27,9W82
9402719lm27,9W101
P System : The value can be up to 10% higher.

More information

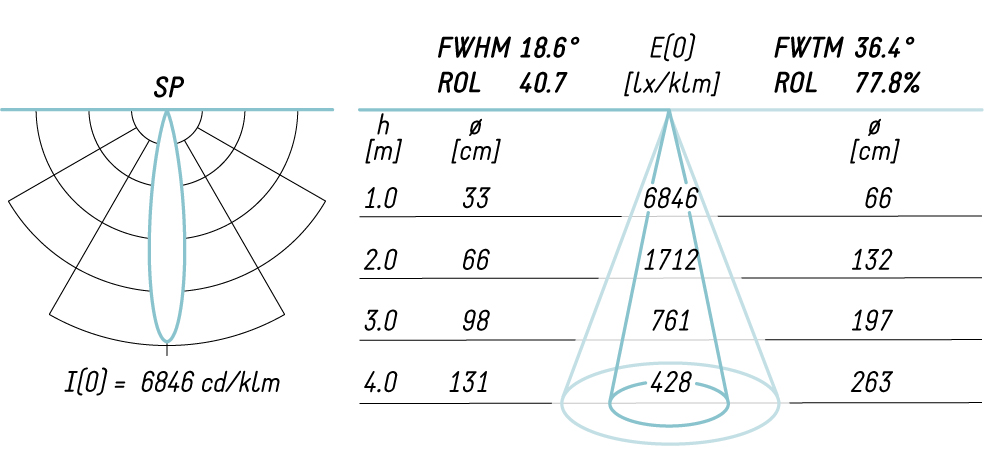

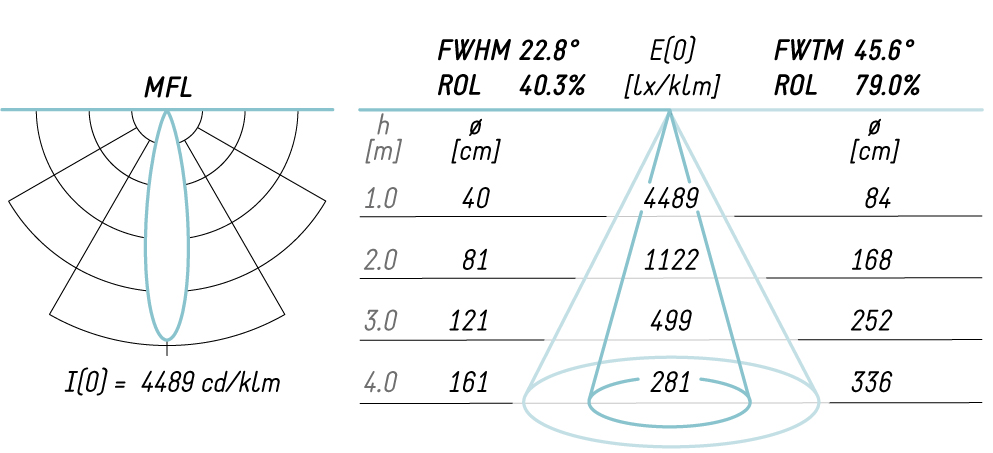

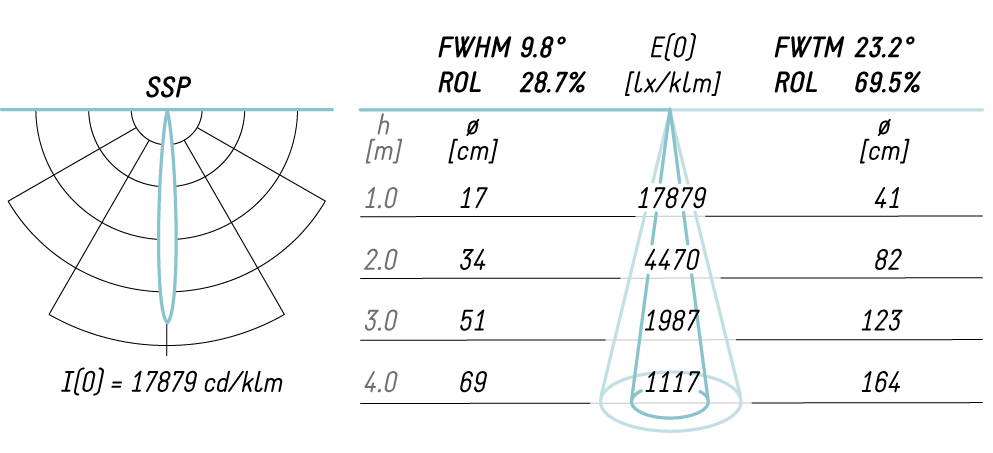

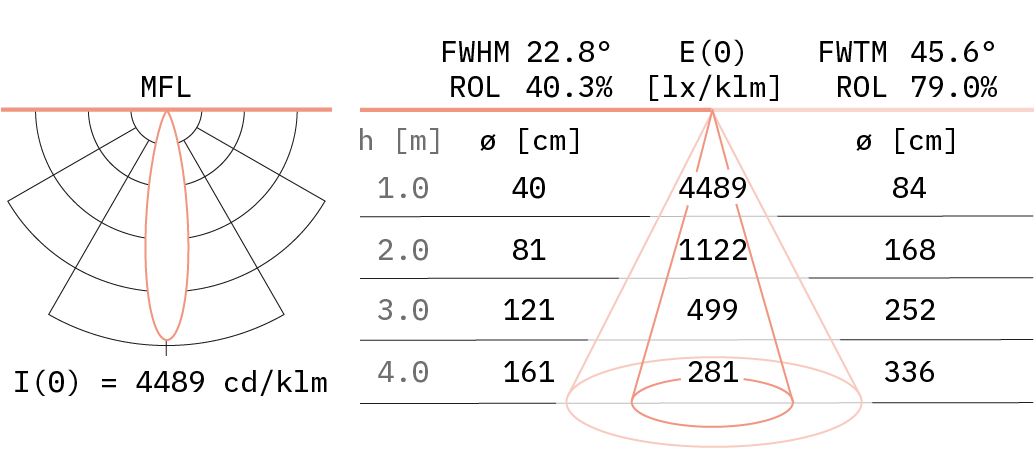

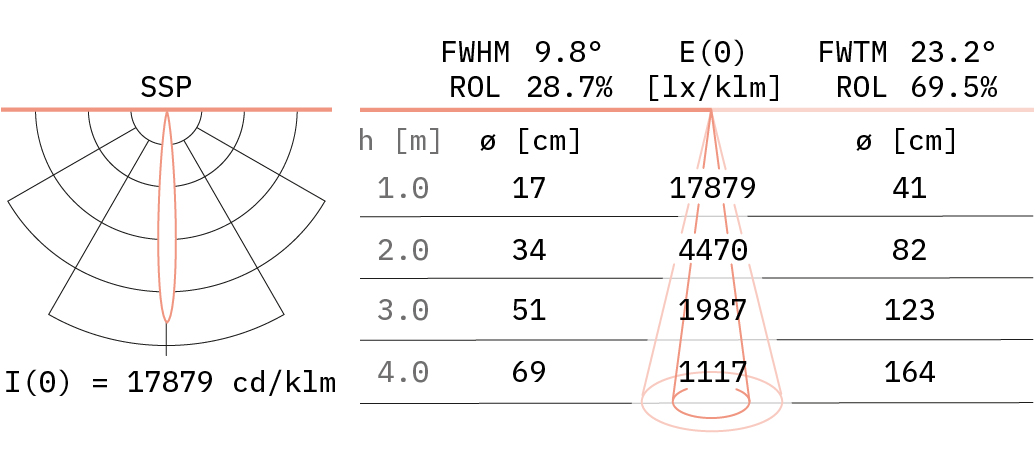

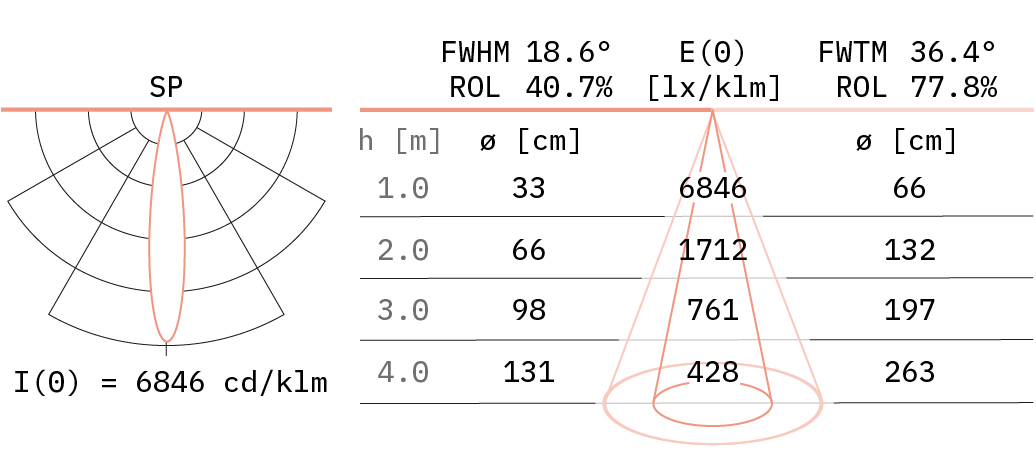

Lighting distribution

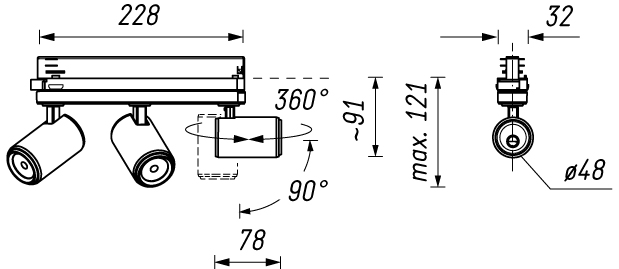

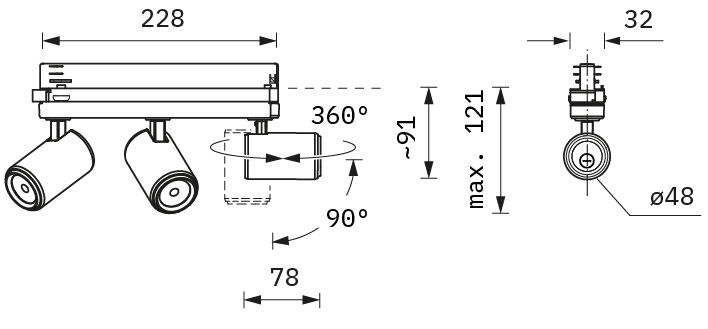

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,8 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
AusfallrateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG2
Number per circuit breaker B 16A50
Protection class2
Type of protectionIP20
Certification markENEC / CB



Documents and Downloads

Here you find all downloads for our luminaire Coray CXT.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Coray CXT 62BD0696-D_Coray_CXT.pdfPDF | 1.1 MB
Technical data sheet Coray_CXT_EN.pdfPDF | 356.8 KB
LDT data Coray CXT Coray_CXT.zipZIP | 375.5 KB
