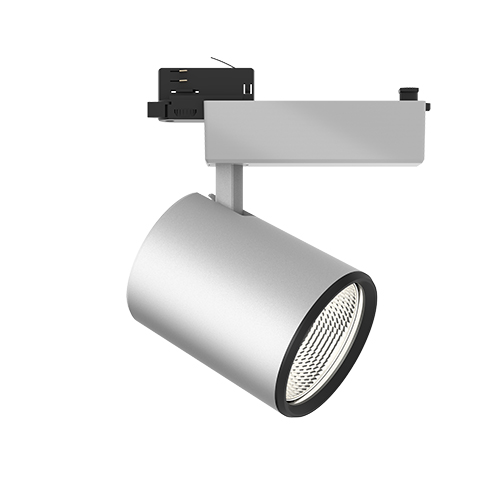

- Lighting technology LED
- Tool-less mounting with track adapter for
three-circuit track - Floor and wall mounting not permitted

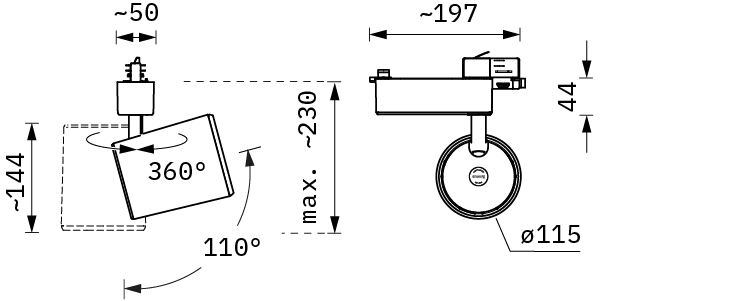

- Turning and tilting (360°/110°)

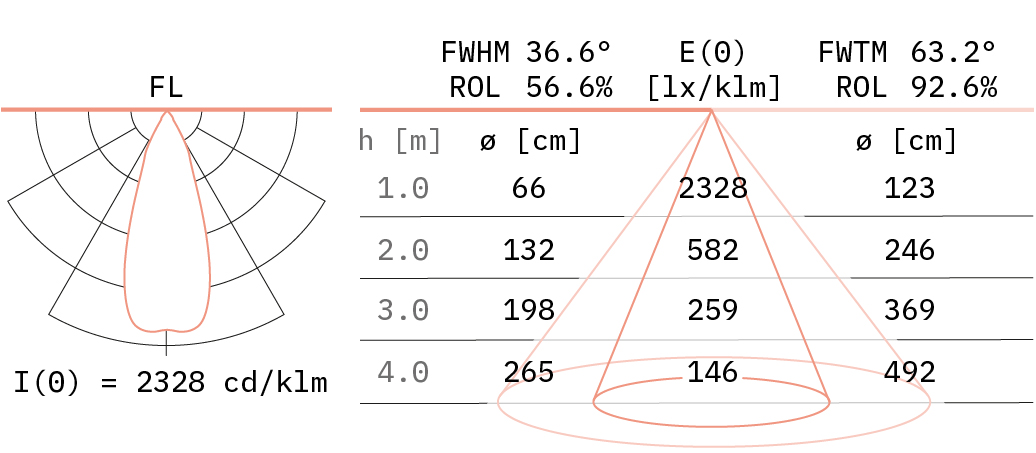

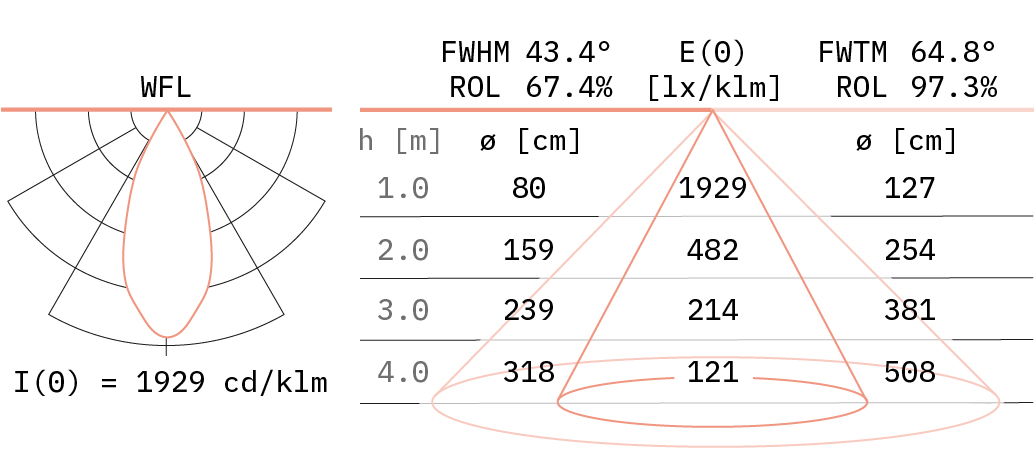

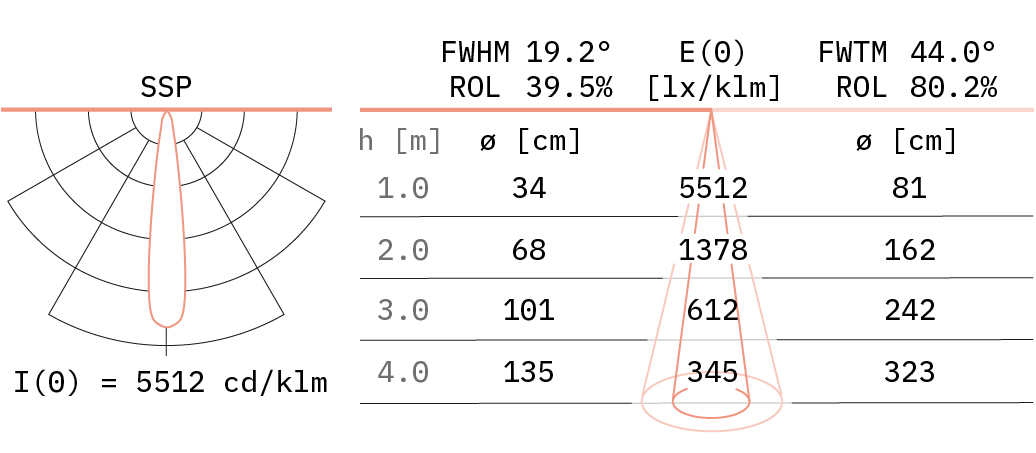

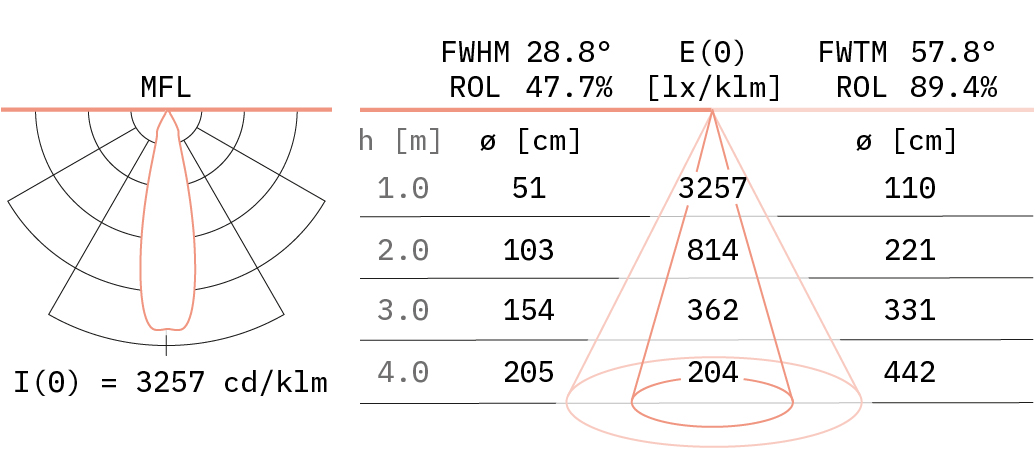

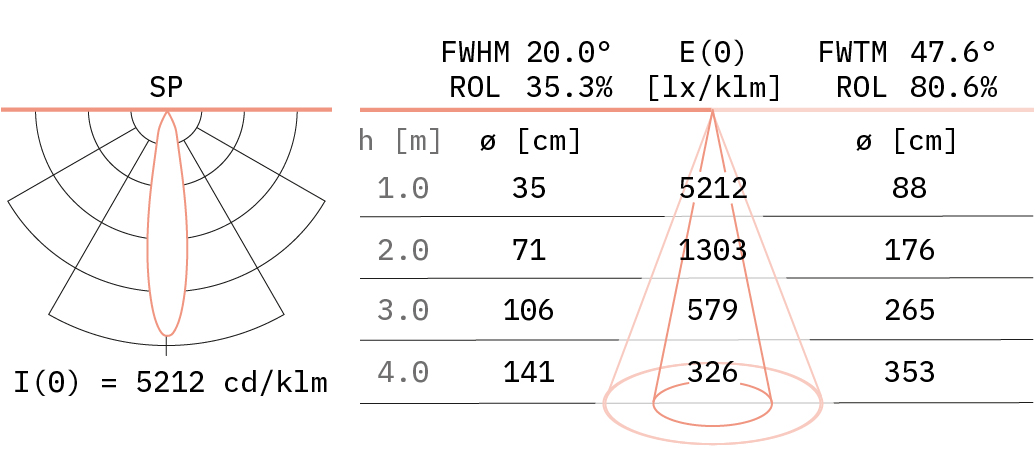

- With integral reflector SSP, SP, MFL, FL or WFL
- Supply unit included
- Version with DALI or Casambi on request

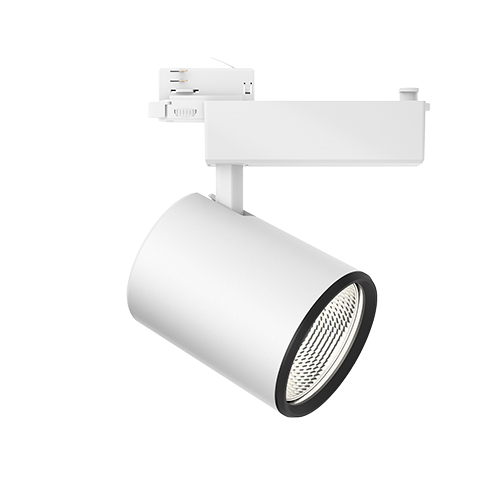

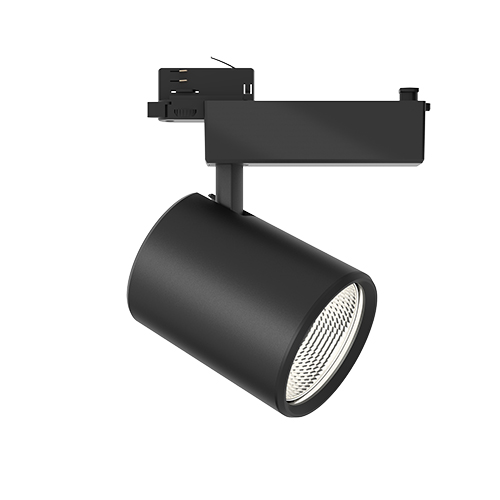

- Colours: white, anthracite, silver on request
Product details
| Light colourLight colour | Luminous flux [lm] | P System *[W] | System efficiency [lm/w] |
|---|---|---|---|
| 830 | 3989lm | 30W | 133 |
| 840 | 4200lm | 30W | 140 |
| 927 | 3250lm | 30W | 108 |
| N27 | 2388lm | 30W | 80 |
| 930 | 3433lm | 30W | 114 |
| 940 | 3599lm | 30W | 120 |
| Meat | 1922lm | 30W | 64 |
| NMeat | 1529lm | 30W | 51 |
| 930PW | 3251lm | 30W | 108 |
| 830 | 4417lm | 34W | 130 |
| 840 | 4651lm | 34W | 137 |
| 927 | 3599lm | 34W | 106 |
| N27 | 2633lm | 34W | 77 |
| 930 | 3802lm | 34W | 112 |
| 940 | 3985lm | 34W | 117 |
| 930PW | 3586lm | 34W | 105 |
| 830 | 5029lm | 40W | 126 |
| 840 | 5295lm | 40W | 132 |
| 927 | 4097lm | 40W | 102 |
| N27 | 2976lm | 40W | 74 |
| 930 | 4328lm | 40W | 108 |
| 940 | 4536lm | 40W | 113 |
| Meat | 2374lm | 40W | 59 |
| NMeat | 1904lm | 40W | 48 |
| 930PW | 4052lm | 40W | 101 |
| P System : The value can be up to 10% higher. | |||
More information
Technical information
| Informationen | Werte |
| Connection data | 220-240 V, 50/60 Hz (110-277 V on request) |
| Weight | approx. 1,1 kg |
| Colour tolerance | 3SDCM (MacAdam) |
| Maintenance of luminous flux | L80/B10 ≥ 50.000h, Ta 25 °C L90/B50 ≥ 50.000h, Ta 25 °C |
| Failure rate | C0/B10 ≥ 50.000h, Ta 25 °C |
| Photobiological safety | RG1 |
| Number per circuit breaker B 16A | 25 |
| Protection class | 1 |
| Type of protection | IP20 |
| Certification mark | ENEC / CB |
