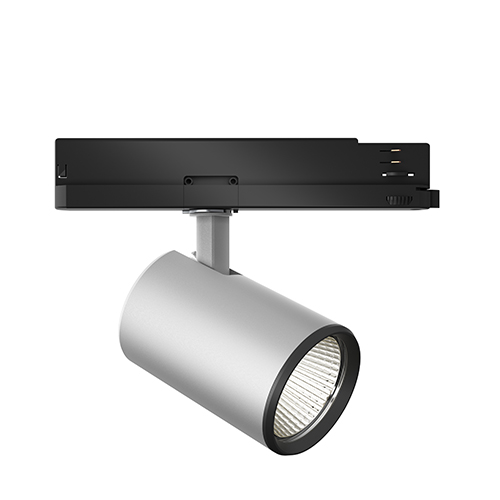

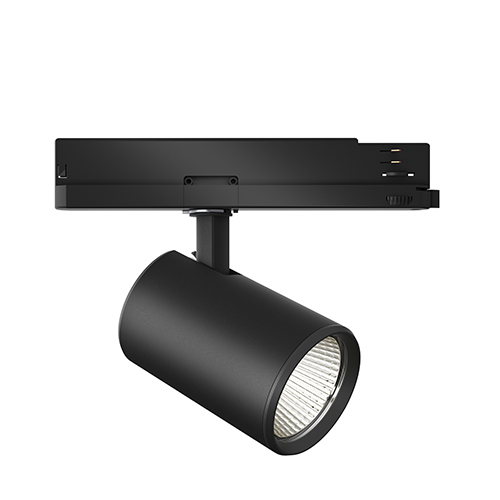

Iqona IMT

  • Lighting technology LED
  • Tool-less mounting with track adapter for
    three-circuit track (Global or Stucchi)
  • Floor and wall mounting not permitted
  • Turning and tilting (360°/110°)
  • With integral reflector SSP, SP, MFL, FL, WFL or
    VWFL
  • Optionally wit h lens insert focusable from
    SP to FL
  • Supply unit included
  • Version with DALI or Casambi on request

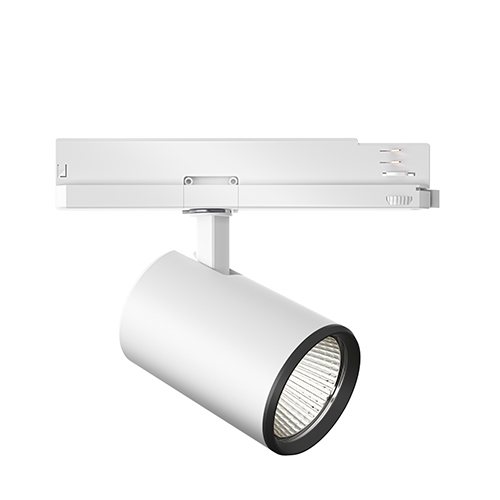

  • Colours: white, anthracite, silver on request

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8302415lm19W127
8402536lm19W133
9271967lm19W104
N271483lm19W78
N271466lm19W77
9402175lm19W114
930PW1981lm19W104
8302841lm23W124
8402983lm23W130
9272314lm23W101
N271720lm23W75
9302434lm23W106
9402558lm23W111
930PW2326lm23W101
8303249lm27W120
8403410lm27W126
9272646lm27W98
N271960lm27W73
9302783lm27W103
9402924lm27W108
930PW2651lm27W98
8303632lm31W117
8403814lm31W123
9272958lm31W95
N272185lm31W70
9303112lm31W100
9403270lm31W105
930PW2952lm31W95
8304003lm35W114
8404202lm35W120
9273260lm35W93
N272401lm35W69
N271531lm35W44
9303430lm35W98
9403604lm35W103
930PW3241lm35W93
P System : The value can be up to 10% higher.

More information

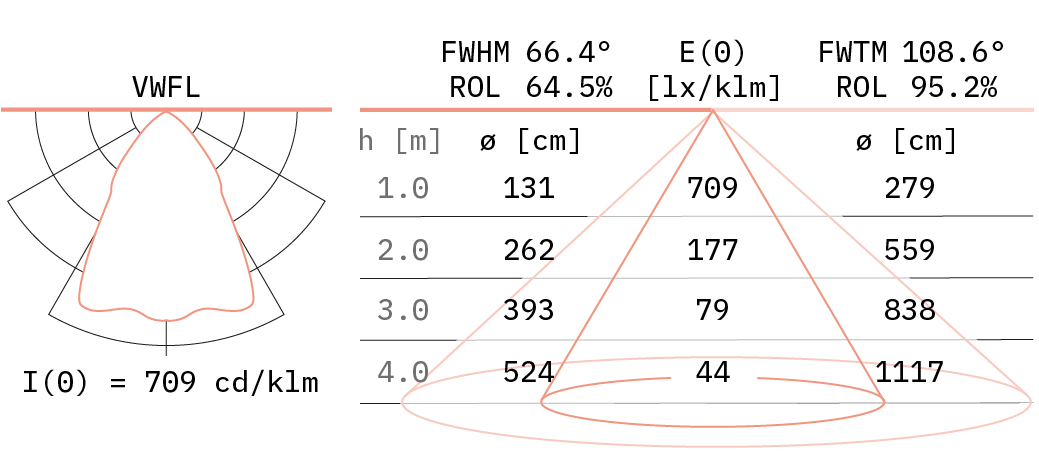

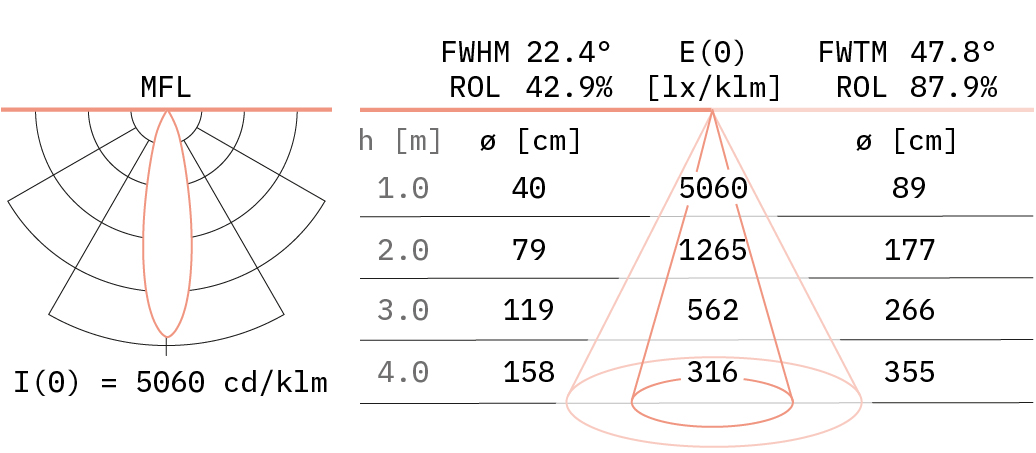

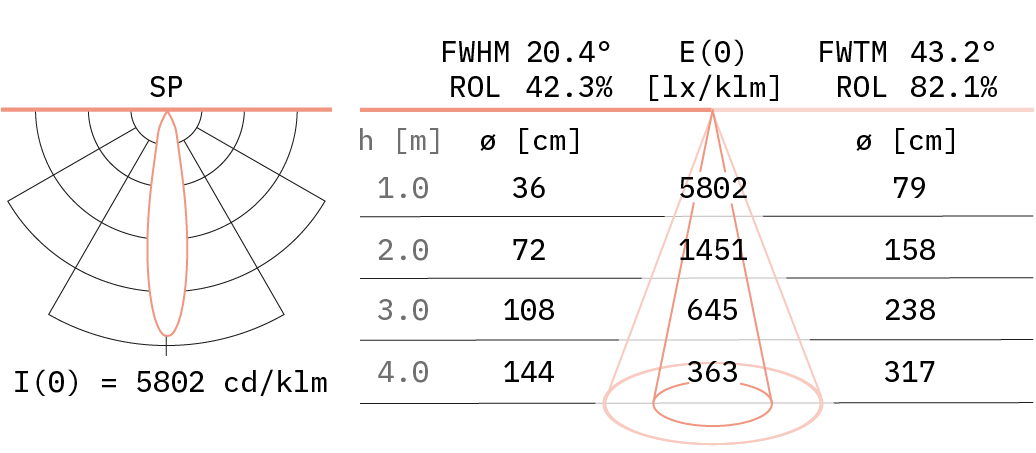

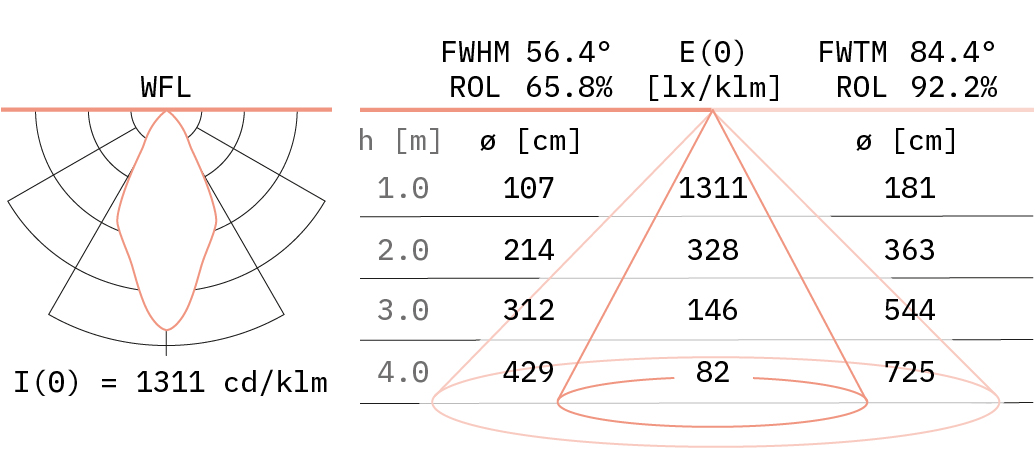

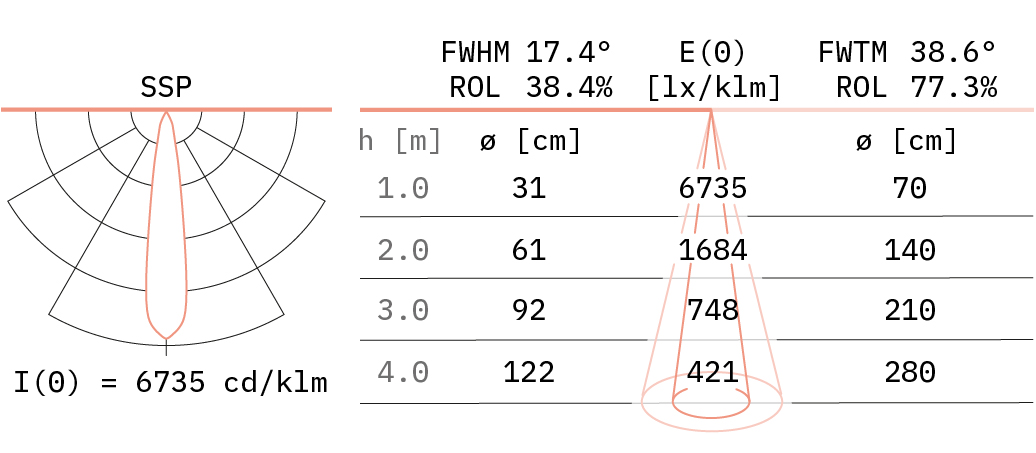

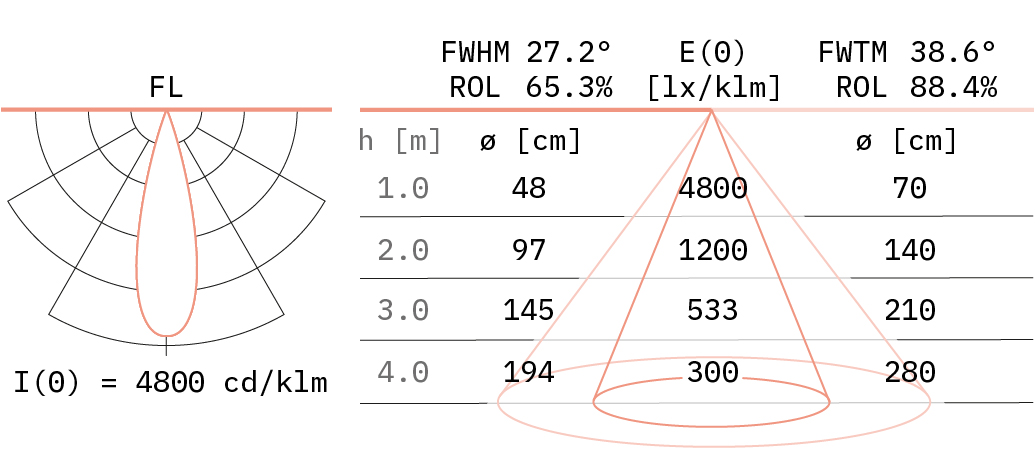

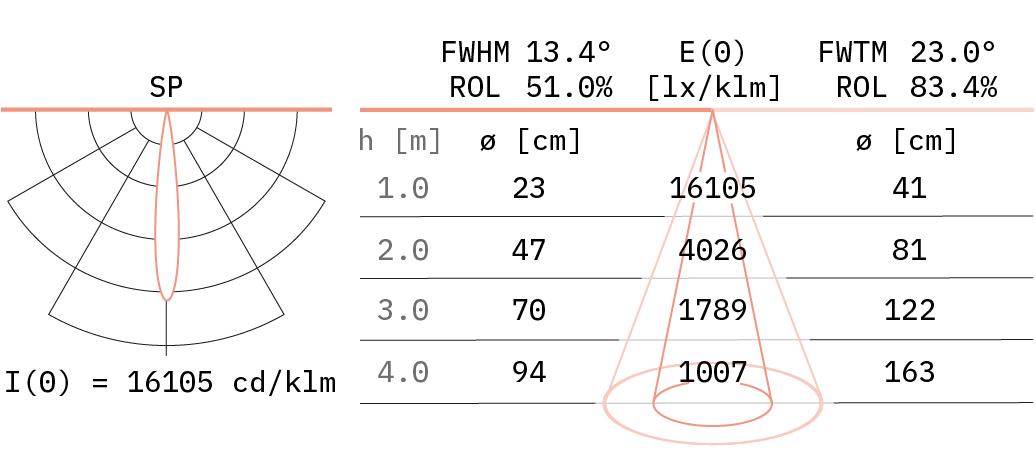

Lighting distribution (with reflector)

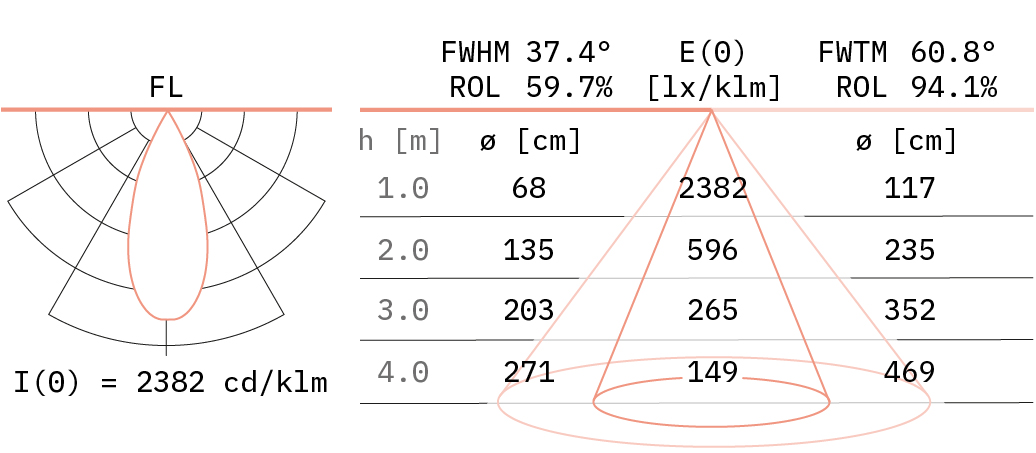

Lighting distribution (with lens)

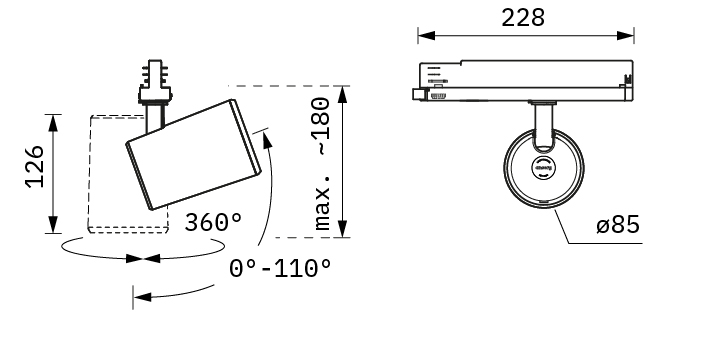

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,9 kg
Colour tolerance3SDCM (MacAdam)

Maintenance of luminous flux
LL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A25
Protection class1
Type of protectionIP20
Certification markENEC / CB



Documents and Downloads

Here you find all downloads for our luminaire Iqona IMT.

TitleFileType|Size
62BD0012-G_Montagehinweise.pdf 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Iqona IMT 62BD0741-F_Iqona_IMT.pdfPDF | 936.7 KB
Technical data sheet Iqona IMT Iqona_IMT_EN_01.pdfPDF | 341.1 KB
LDT data Iqona IMT Iqona_IMT.zipZIP | 437.4 KB
