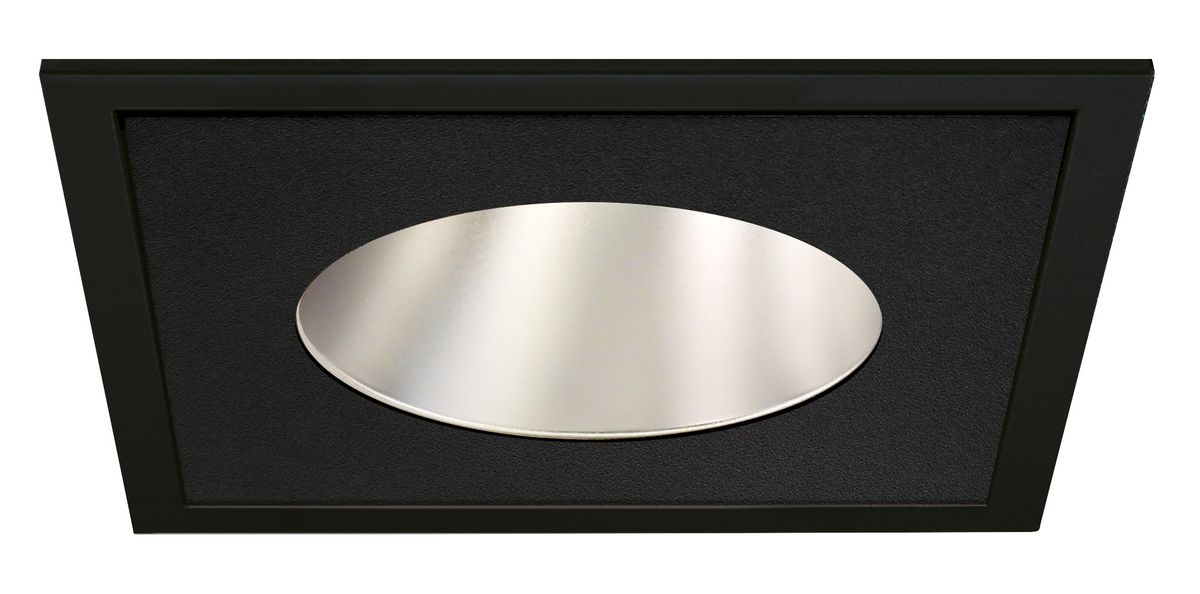

Lightstripe LEL

  • Lighting technology LED
  • Function panel (single module) with downlight
  • Fitting of the function panel in the frame without the
    use of tools
  • Floor and wall mounting not permitted
  • With integral reflector FL, WFL or VWFL
  • Supply unit included
  • Connection to power supply by Wieland plug
    GST18i3; wire length l = 0.5 m
  • Version with DALI or Casambi on request
    (Casambi not compatible with metal ceilings)

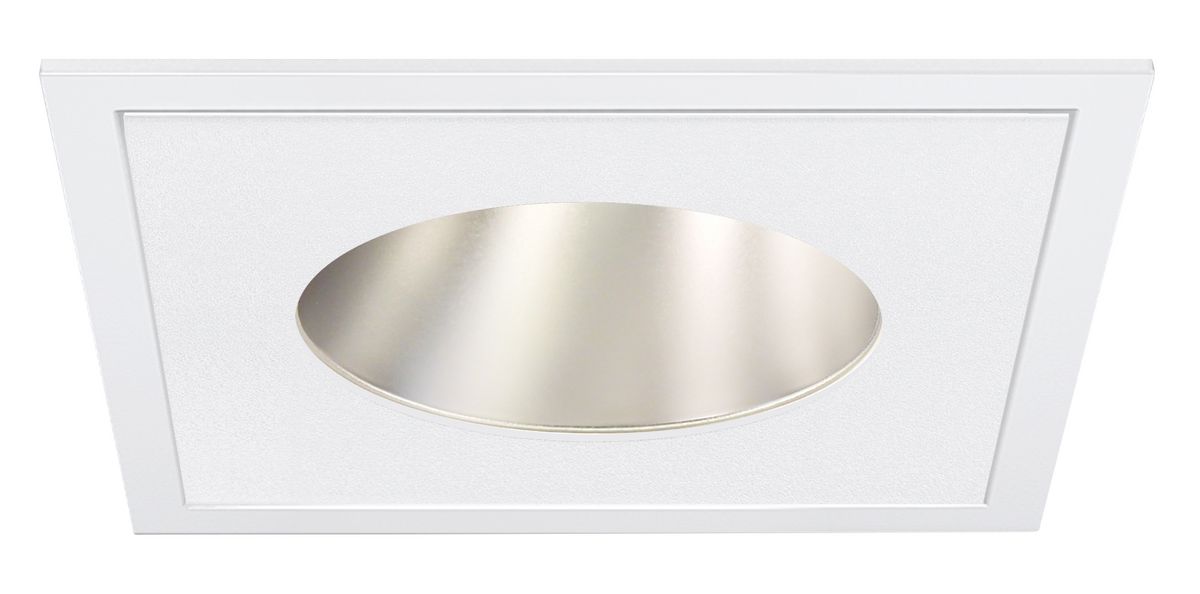

  • Colours : white, anthracite

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8301150lm22W52
8401196lm22W54
9271089lm22W50
N271126lm22W51
9301130lm22W51
9401147lm22W52
930PW1130lm22W51
Nmeat1007lm22W46
8302071lm26W80
8402153lm26W83
9272023lm26W78
N272079lm26W80
9302101lm26W81
9402066lm26W79
930PW2101lm26W81
8302978lm30W99
8403098lm30W103
9273016lm30W101
9302973lm30W99
9403048lm30W102
930PW2973lm30W99
8303972lm34W117
8404133lm34W122
8304324lm40W108
8404500lm40W113
9273448lm40W86
N272652lm40W66
9303579lm40W89
9403473lm40W87
930PW3579lm40W89
Nmeat1623lm40W41
P System : The value can be up to 10% higher.

More information

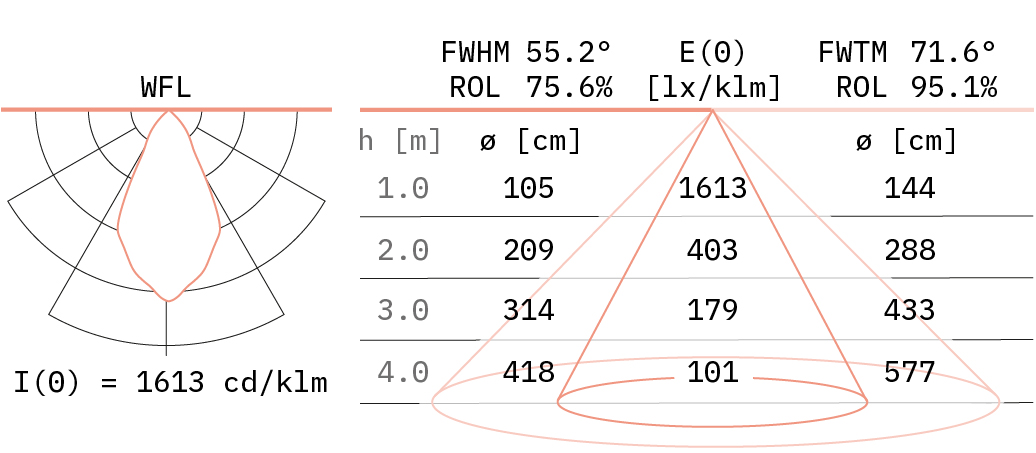

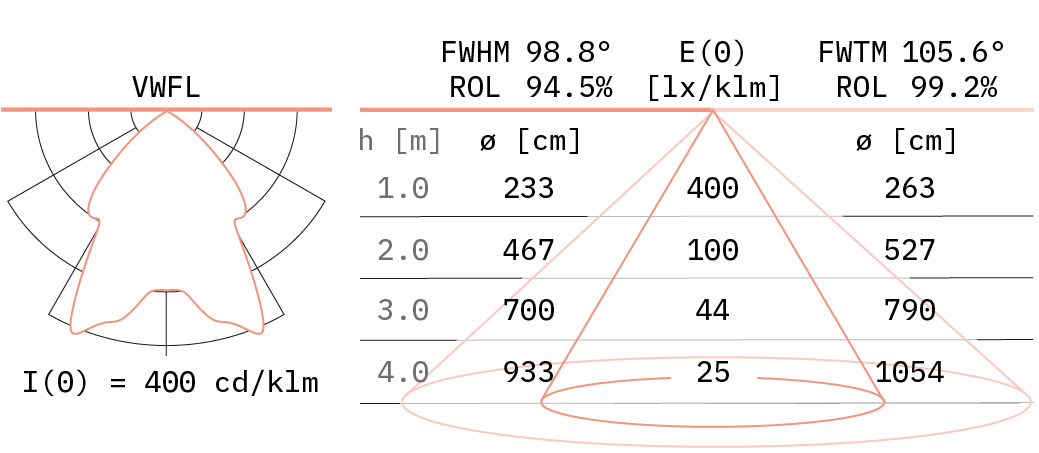

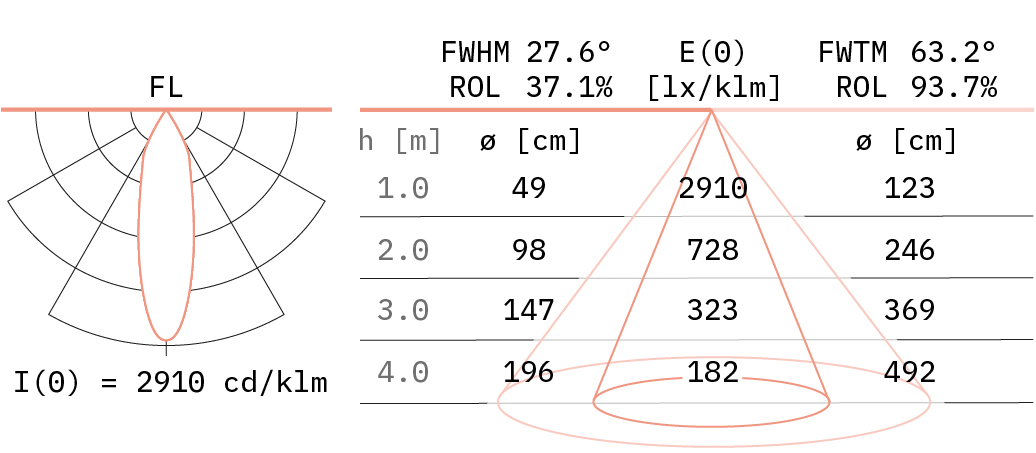

Lighting distribution

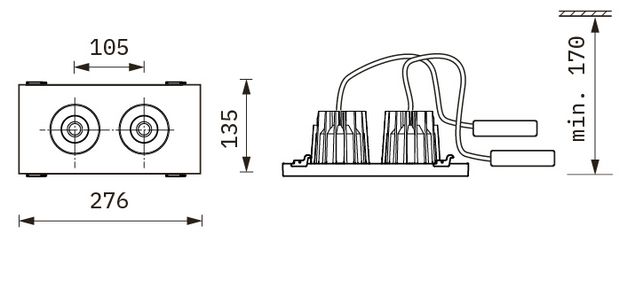

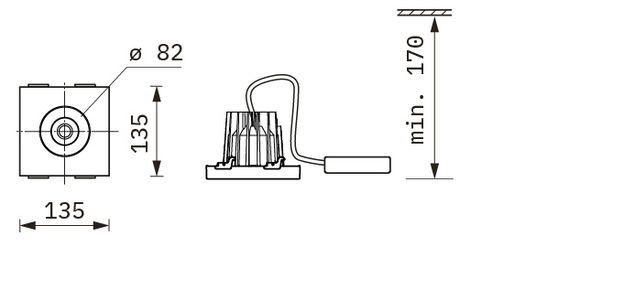

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0.9 kg (1 modul), approx. 1.5 kg (2 modules)
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A34
Protection class1
Type of protectionIP20
Certification markIn preparation

Documents and Downloads

Here you find all downloads for our luminaire Lightstripe LEL.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Lightstripe LEL 62BD0566-A_Lightstripe_LEL.pdfPDF | 1.4 MB
Technical data sheet Lightstripe LEL Lightstripe_LEL_EN_01.pdfPDF | 411.7 KB
LDT data Lightstripe LEL Lightstripe_LEL.zipZIP | 383.1 KB
