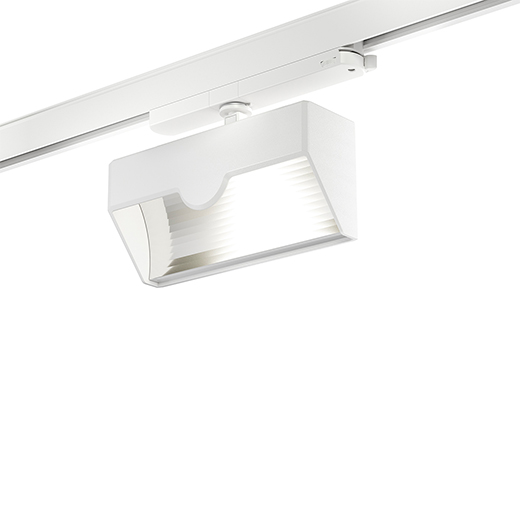

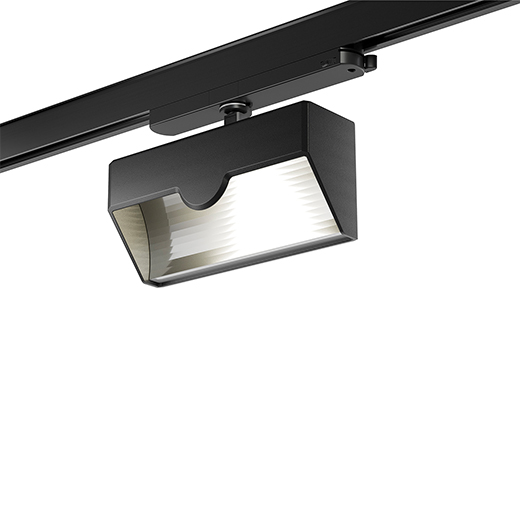

Navo NMT

  • Lighting technology LED
  • Tool-less mounting with track adapter for
    three-circuit track (Global or Stucchi)
  • Turning and tilting (360°/±10°)
  • With integral reflector DF-NB or WW
  • Supply unit included
  • Version with DALI or Casambi on request

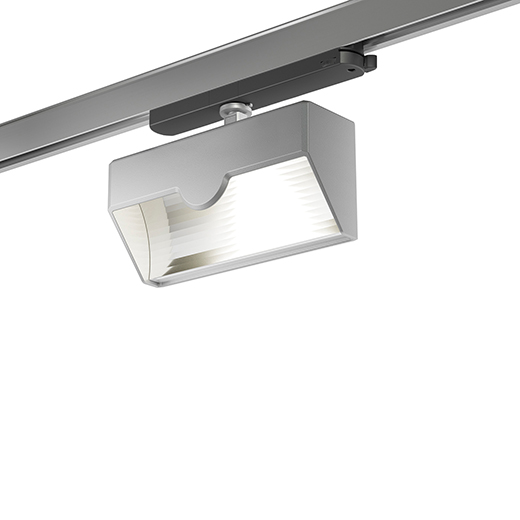

  • Colours: white, anthracite, silver on request

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8303444lm27W128
8403616lm27W134
9272805lm27W104
N272079lm27W77
9302951lm27W109
9403100lm27W115
930PW2811lm27W104
8303851lm31W124
8404044lm31W130
9273136lm31W101
N272316lm31W75
9303299lm31W106
9403467lm31W112
930PW3130lm31W101
8304244lm35W121
8404455lm35W127
9273457lm35W99
N272546lm35W73
9303636lm35W104
9403988lm35W114
930PW3436lm35W98
8304795lm40W120
8405034lm40W126
9273905lm40W98
N272862lm40W72
9304108lm40W103
9404316lm40W108
930PW3858lm40W96
P System : The value can be up to 10% higher.

More information

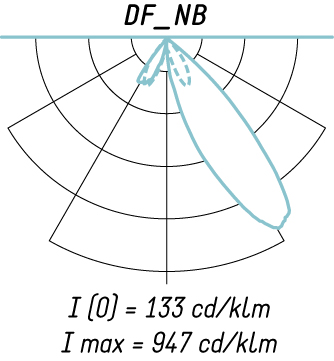

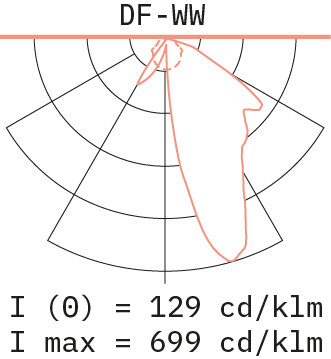

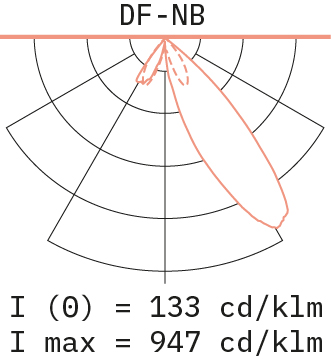

Lighting distribution

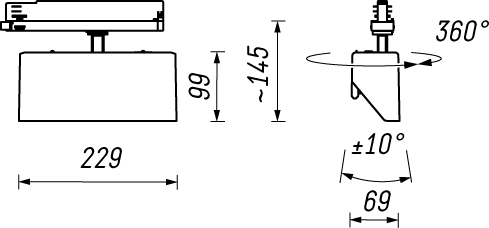

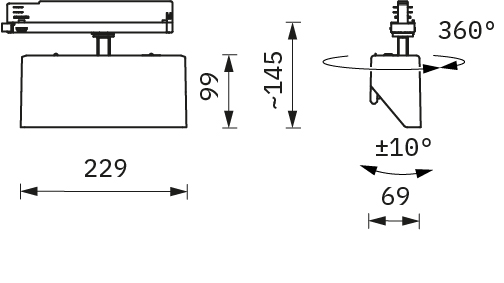

Technical drawing

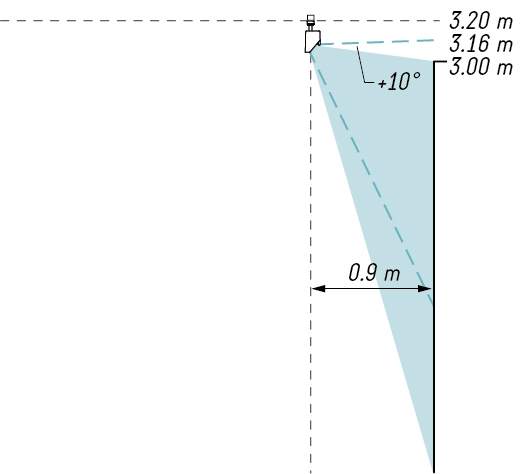

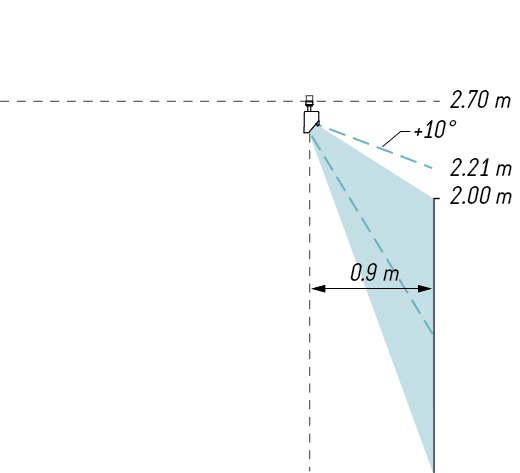

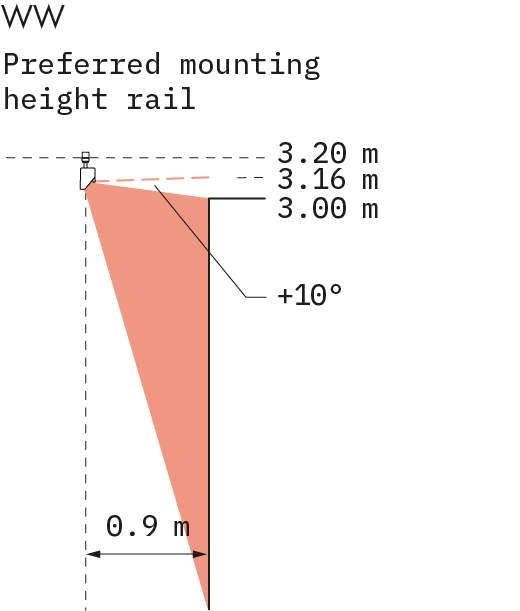

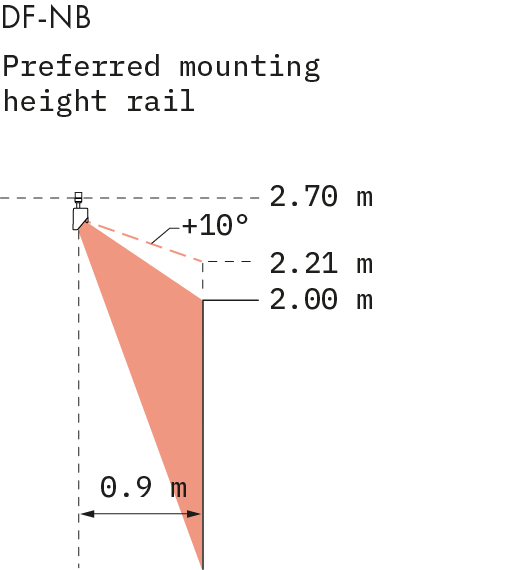

Planning information

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,8 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A50
Protection class2
Type of protectionIP20
Certification markENEC / CB

Documents and Downloads

Here you find all downloads for our luminaire Navo NMT.



TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Navo NMT 62BD0722-B_Navo_NMT.pdfPDF | 981.0 KB
Navo_NMT_EN.pdf Navo_NMT_EN.pdfPDF | 314.5 KB
LDT data Navo NMT Navo_NMT.zipZIP | 802.8 KB
