Punta PSR

  • Lighting technology LED
  • Tool-less ceiling mounting
  • Wall mounting not permitted
  • Spotlights tilting and turning (360°/0°–70°)
  • With integral reflector SP, MFL or FL
  • Supply unit included
  • Connection to power supply by Wieland plug GST18i3; wire length l = 0.5 m
  • DALI or INspire lighting control system on request (INspire Lighting Control not for use in metal ceilings)

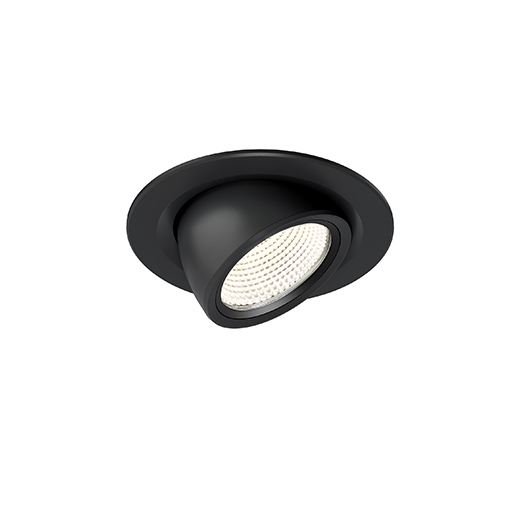

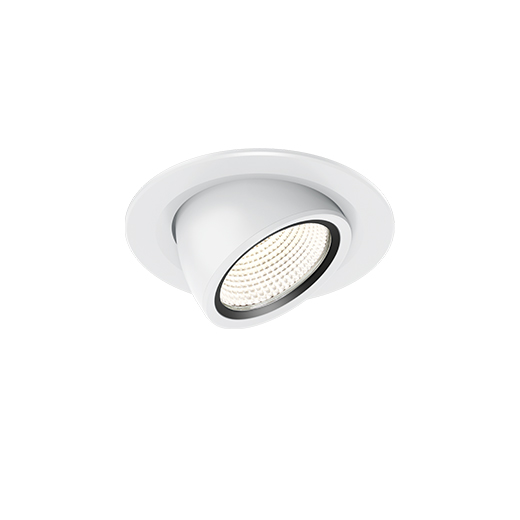

  • Colours: white, anthracite

Product details

Power level [W]
CRICRI light colour Luminous flux [lm] PSystem *[W] System efficiency [lm/w]
830194915130
840204715136
927158815106
930167015111
940175515117
Brilliant160015107
830238019125
840249819131
927193819102
930203819107
940214219113
Brilliant195119103
830278823121
840292723127
92722702399
930238823104
940251023109
Brilliant22782399
830336329116
840353129122
92727392994
93028812999
940302829104
Brilliant27272994
PSystem : The value can be up to 10% higher.

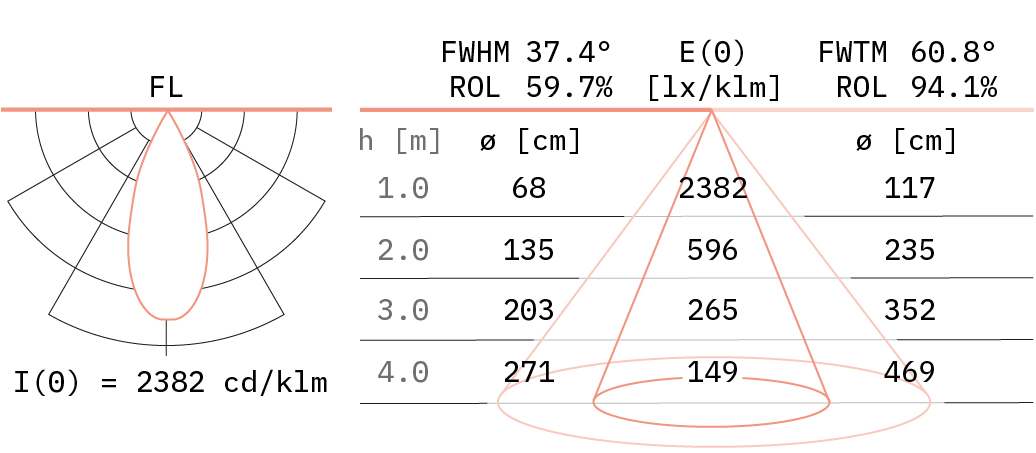

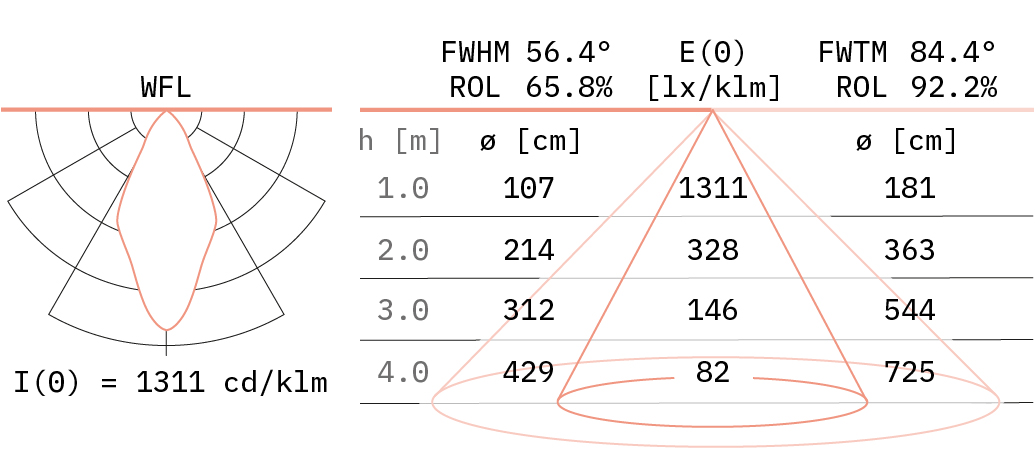

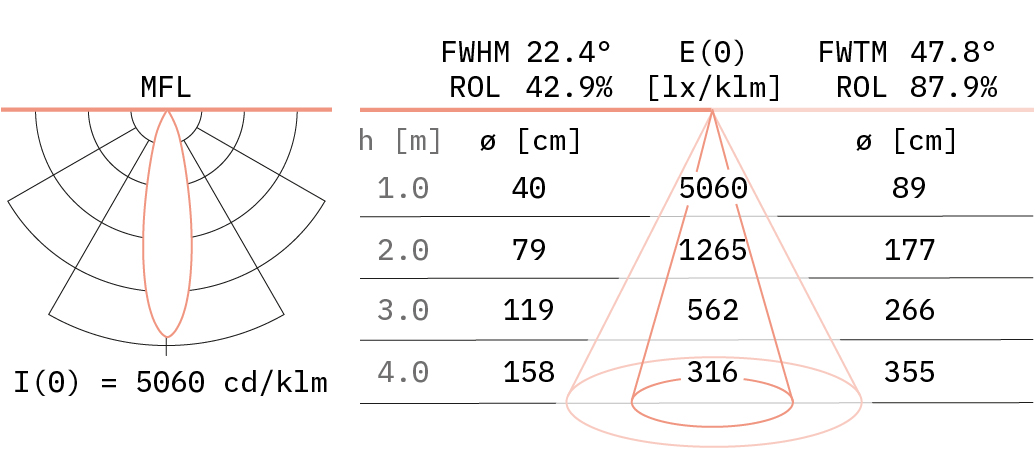

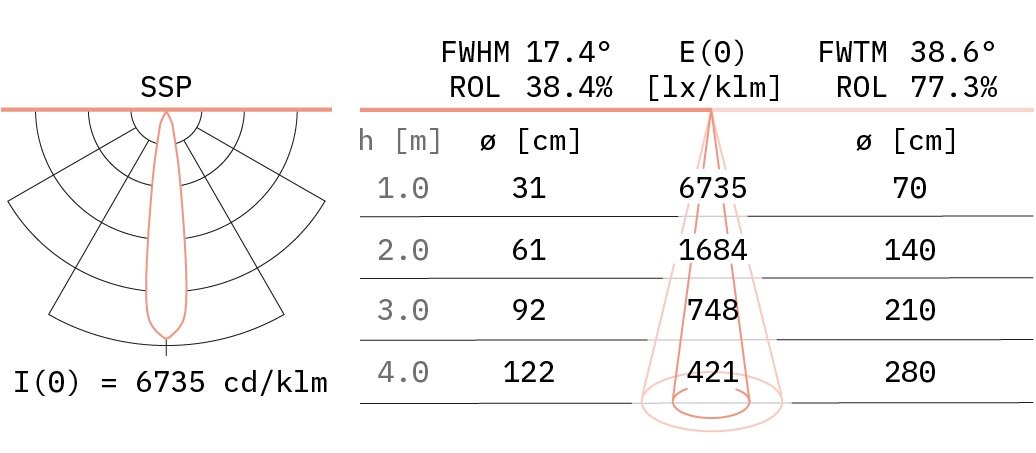

Lighting distribution

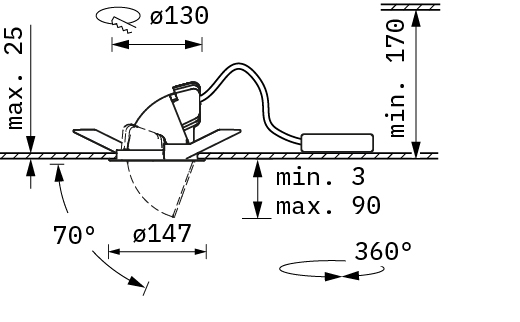

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V upon request)
Weightapprox. 0.72 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50,000h, Ta 25 °C
L90/B50 ≥ 50,000h, Ta 25 °C
Failure rateC0/B10 ≥ 50,000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A34
Protection class1
Type of protectionIP20
Certification markCE / EAC
