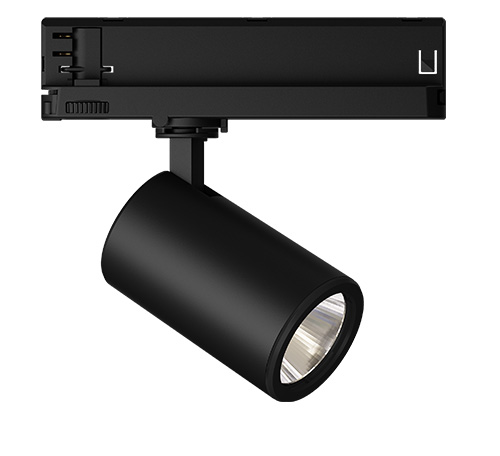

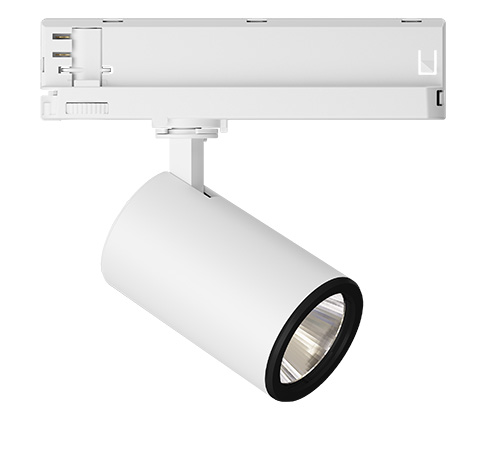

Iqona IST

  • Lighting technology LED
  • Tool-less mounting with track adapter for
    three-circuit track or ceiling mounting (Global or
    Stucchi)
  • Turning and tilting (360°/110°)
  • With integral reflector SP, MFL or FL
  • Supply unit included
  • Version with DALI or Casambi on request
  • Colours: white, anthracite, silver on request

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
930PW1640lm20W82
8302435lm24W101
9271983lm24W83
N271481lm24W62
P System : The value can be up to 10% higher.

More information

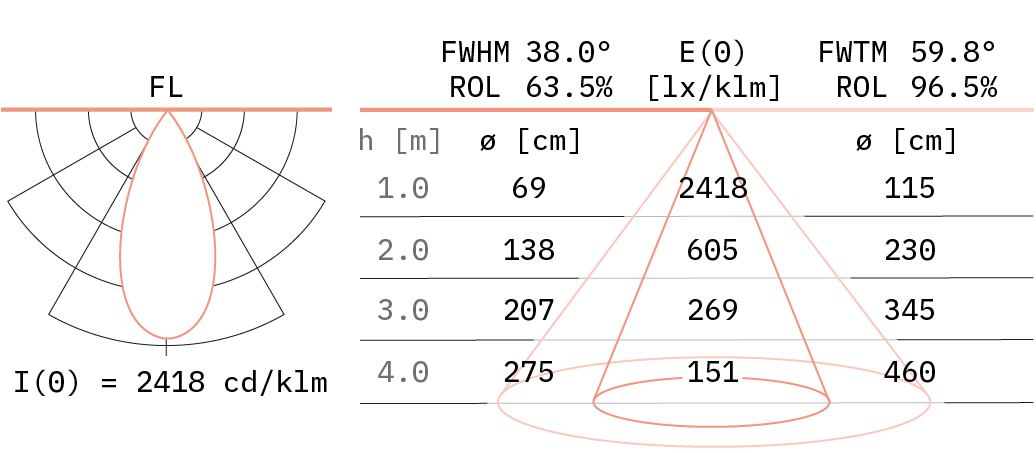

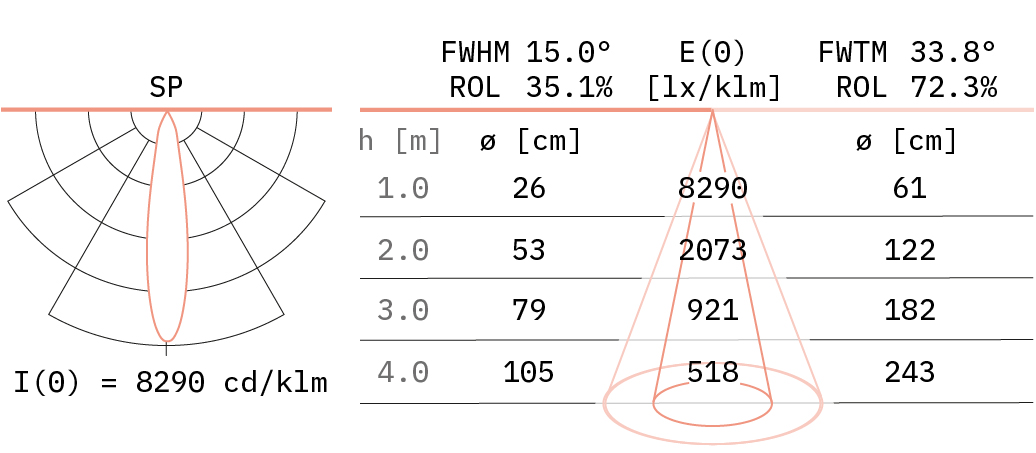

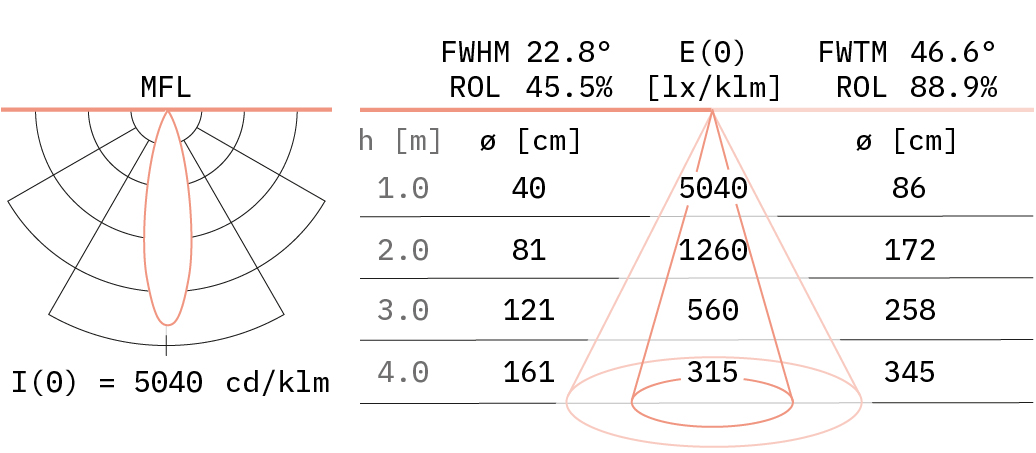

Lighting distribution

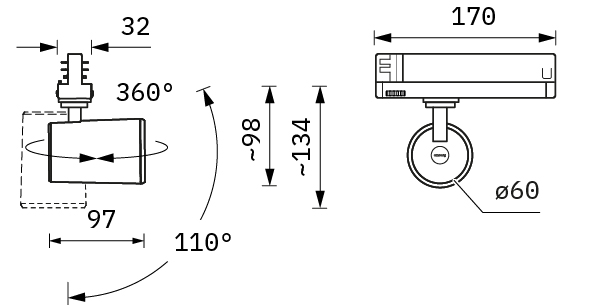

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,3 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A50
Protection class2
Type of protectionIP20
Certification markENEC / CB
Optional accessoriesProductOption
 Interchangeable reflectorSP, MFL, FL
 GlassesSafety glass, Safety glass (anti-glare), Ribbed glass (oval light image)
 Glare reductionSnoot, honeycomb grid, black

Documents and Downloads


Here you find all downloads for our luminaire Iqona IST.

TitleFileType|Size
62BD0012-G_Montagehinweise.pdf 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting information Iqona IST 62BD0755-E_Iqona_IST.pdfPDF | 962.2 KB
Technical data sheet Iqona IST Iqona_IST_EN.pdfPDF | 174.6 KB
