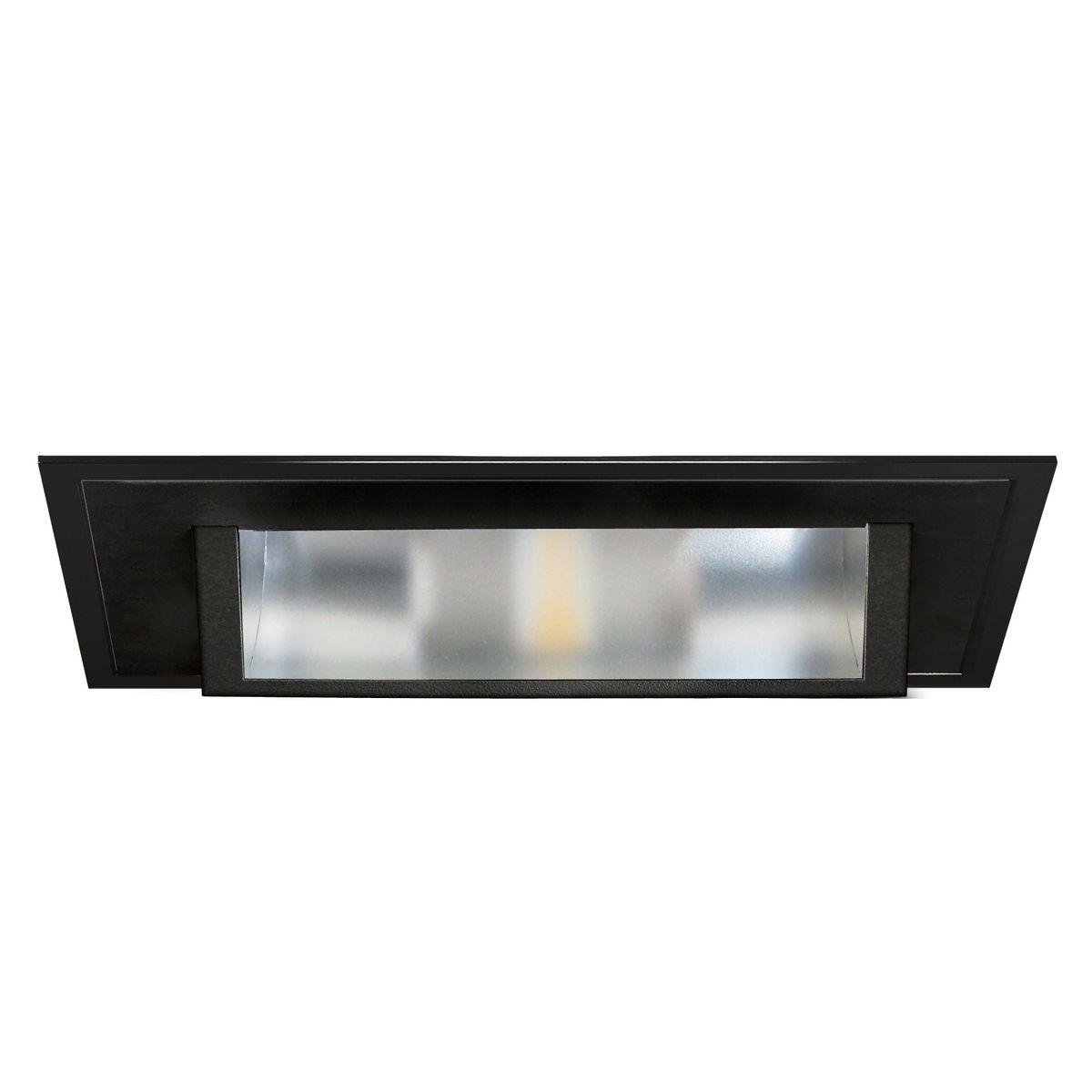

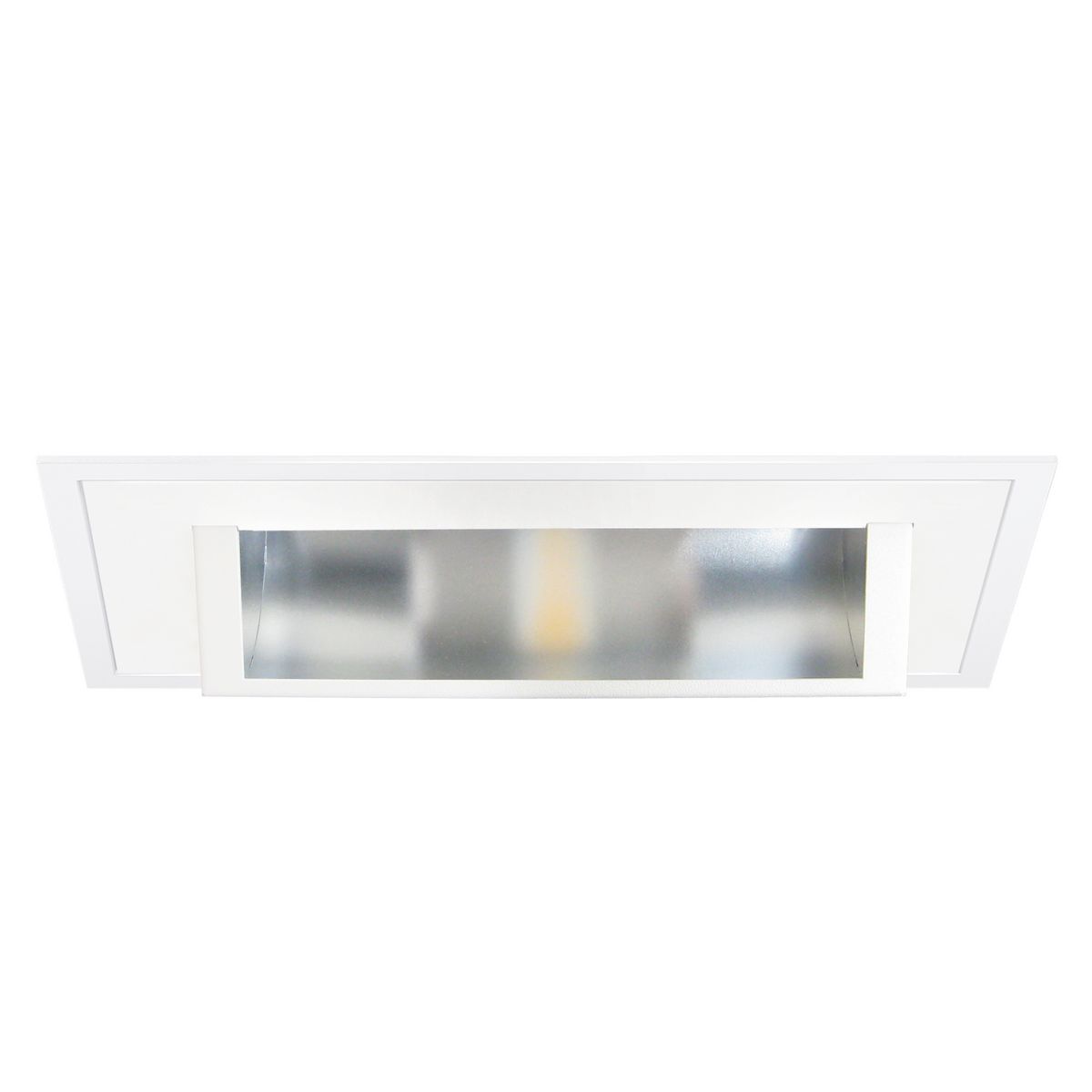

Lightstripe LWL

  • Lighting technology LED
  • Function panel (double module) with wallwasher (tilt angle ~132°)
  • Fitting of the function panel in the frame without the use of tools
  • Wall mounting not permitted
  • With integral reflector WW
  • Supply unit included
  • Connection to power supply by Wieland plug GST18i3; wire length l = 0.5 m
  • DALI or INspire lighting control system on request (INspire Lighting Control not for use in metal ceilings)
  • Colours: white, anthracite, silver

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
Brilliant115011105
830160013123
Brilliant225022102
92721002391
830310026119
840320026123
92730503295
93027003577
830410036114
840420036117
94030003683
940400039103
93037004288
NMeat21504647
Brilliant42004789
94050005198
P System : The value can be up to 10% higher.

More information

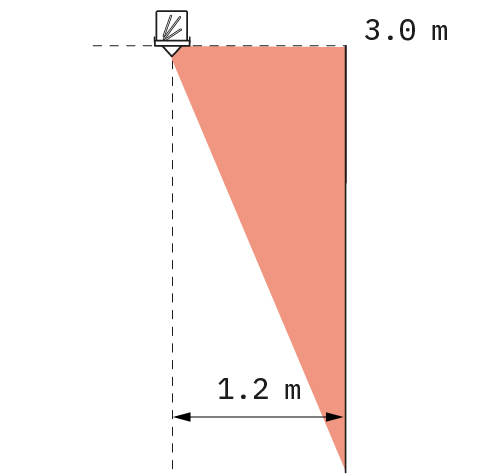

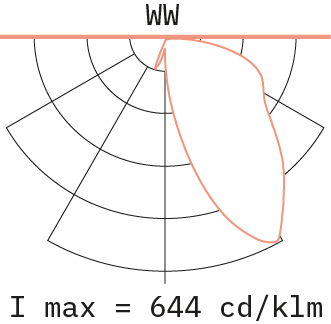

Lighting distribution

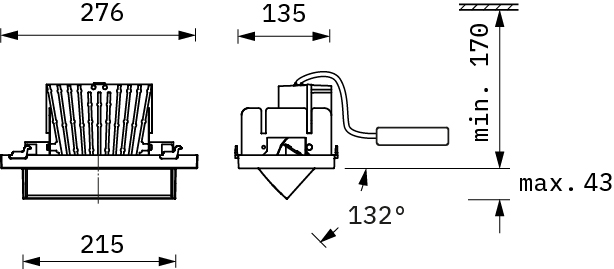

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 1,3 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A34
Protection class1
Type of protectionIP20
Certification markENEC / EAC

Documents and Downloads

Here you find all downloads for our luminaire Lightstripe LWL.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Lightstripe LWL 62BD0573-D_Lightstripe_LWL.pdfPDF | 1.6 MB
Technical data sheet Lightstripe LWL Lightstripe_LWL_EN_01.pdfPDF | 460.6 KB
LDT data Lightstripe LWL Lightstripe_LWL.zipZIP | 437.9 KB
