Maxx MSD

  • Lighting technology LED
  • Downlight
  • Tool-less ceiling mounting
  • Ceiling cut-out Ø95 mm
  • With integral reflector FL, WFL or VWFL
  • Supply unit included
  • Connection to power supply by Wieland plug
    GST18i3; wire length l = 0.5 m
  • Version with DALI or Casambi on request
    (Casambi not compatible with metal ceilings)

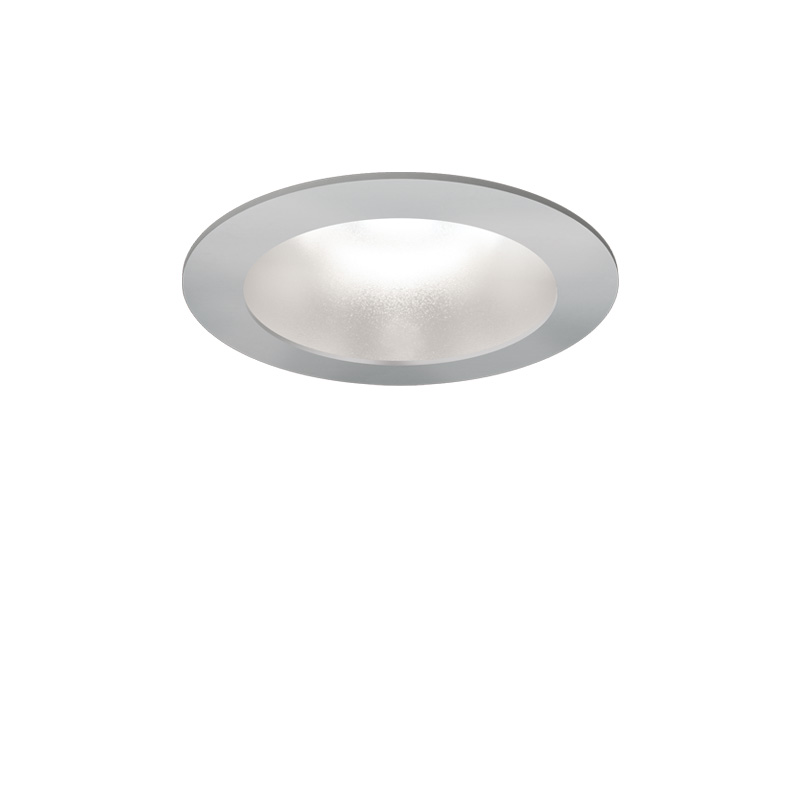

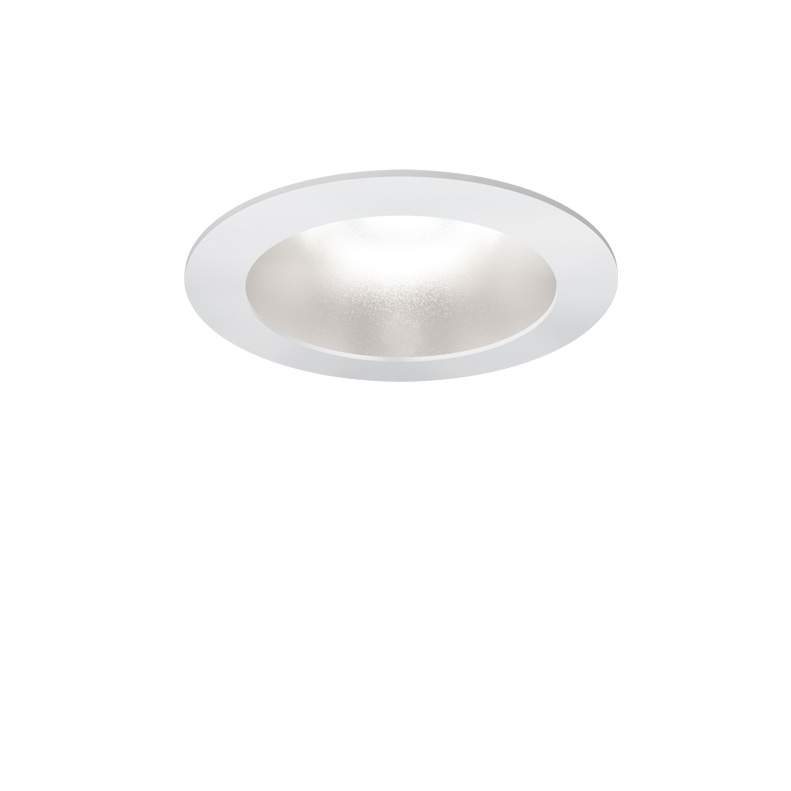

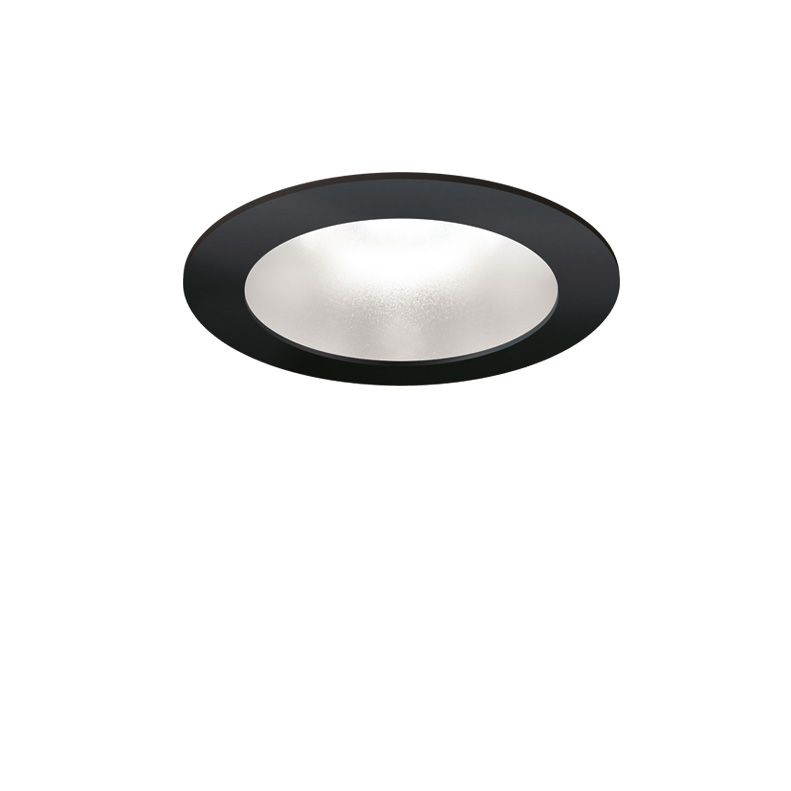

  • Colours: white, anthracite, silver on request

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8302019lm15W135
8402121lm15W141
9271645lm15W110
9301730lm15W115
9401818lm15W121
930PW1658lm15W111
8302466lm19W130
8402589lm19W136
9272008lm19W106
9302112lm19W111
9402220lm19W117
930PW2022lm19W106
Nmeat957lm19W50
8302889lm23W126
8403032lm23W132
9272352lm23W102
9302474lm23W108
9402601lm23W113
930PW2360lm23W103
8303293lm27W122
8403471lm27W129
9272681lm27W99
9302821lm27W104
9402964lm27W110
930PW2678lm27W99
8303670lm31W118
8403854lm31W124
9272989lm31W96
9303145lm31W101
9403305lm31W107
930PW2968lm31W96
Nmeat1374lm31W44
P System : The value can be up to 10% higher.

More information

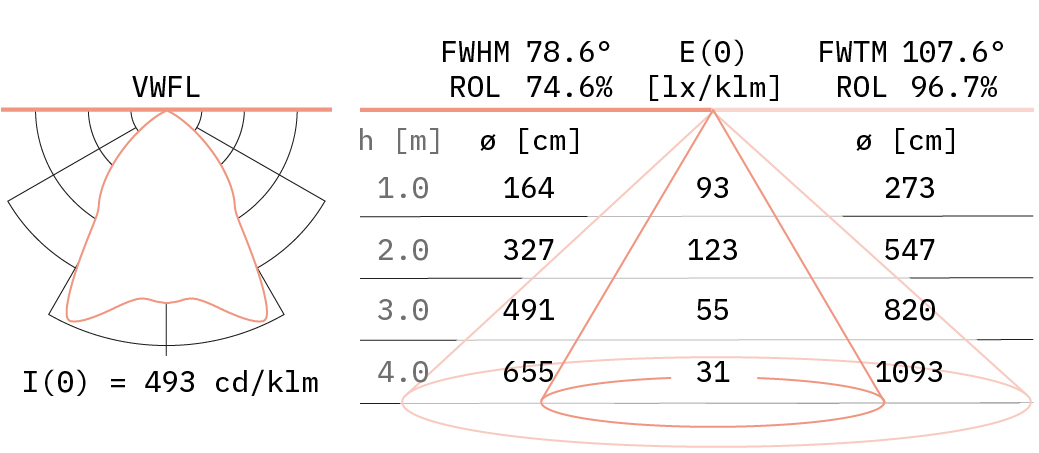

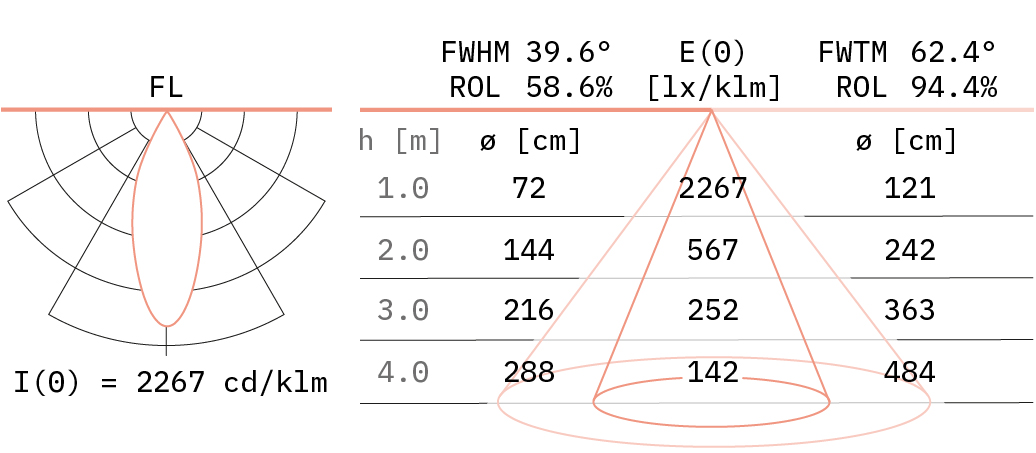

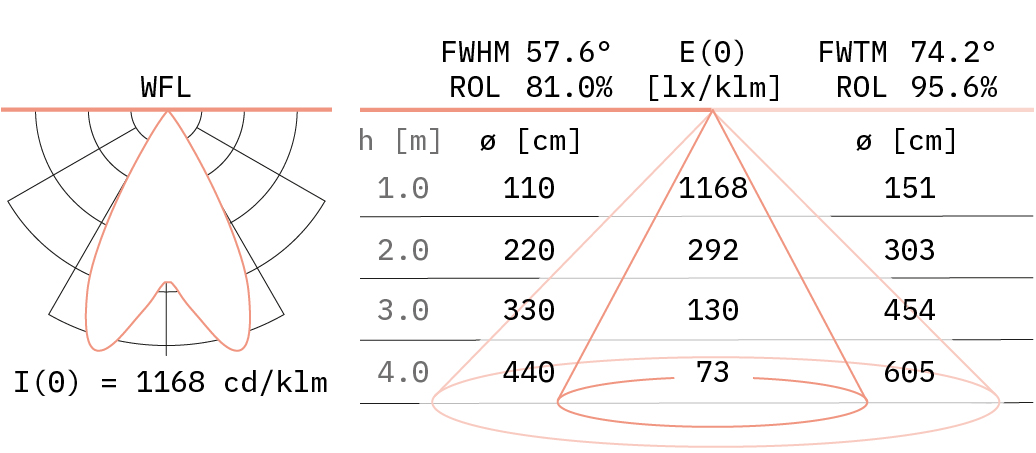

Lighting distribution

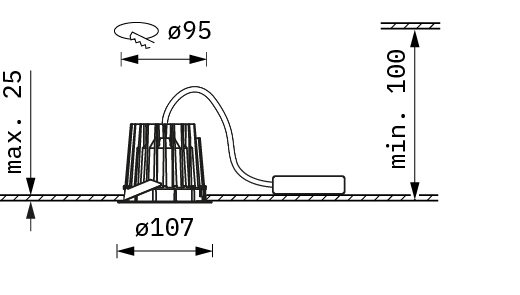

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,5 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A25
Protection class1
Type of protectionIP20
Certification markENEC / CB

Documents and Downloads

Here you find all downloads for our luminaire Maxx MSD.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Maxx MSD 62BD0589-J_Maxx_MSD.pdfPDF | 817.6 KB
Technical data sheet Maxx MSD Maxx_MSD_EN_01.pdfPDF | 236.4 KB
LDT data Maxx MSD Maxx_MSD.zipZIP | 393.9 KB
