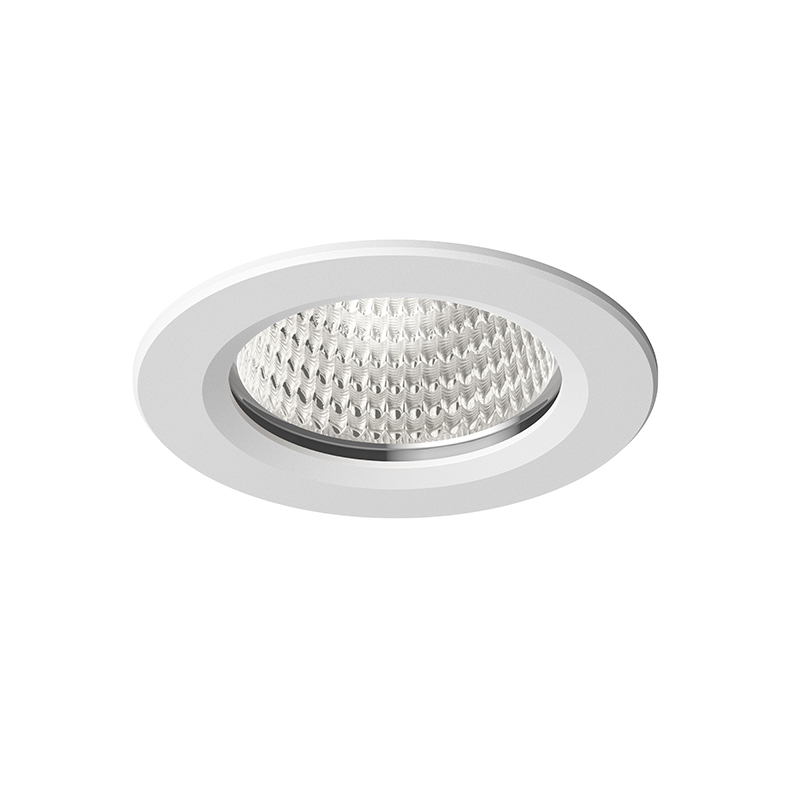

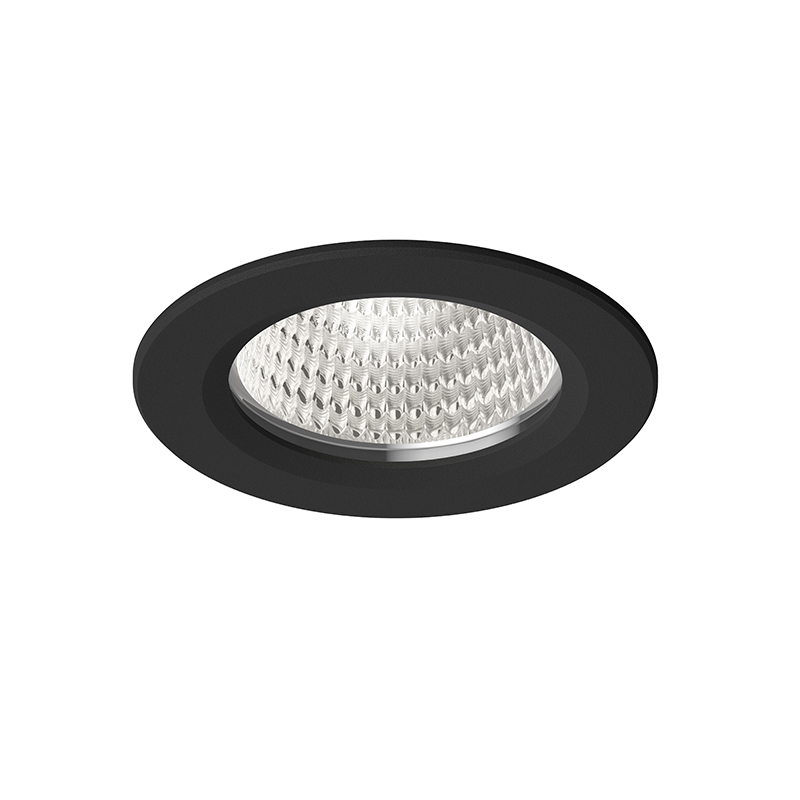

Maxx MXD

  • Lighting technology LED
  • Downlight
  • Tool-less ceiling mounting
  • Ceiling cut-out Ø95-100 mm
  • Floor and wall mounting not permitted
  • With integral reflector SSP, SP, MFL, FL, WFL or
    VWFL
  • Supply unit included
  • Connection to power supply by Wieland plug
    GST18i3; wire length l = 0.5 m
  • On request: version with colour filter, safety
    glas, ribbed glass, honeycomb grid or glare
    reduction, version avec DALI or Casambi
    (Casambi not compatible with metal ceilings)

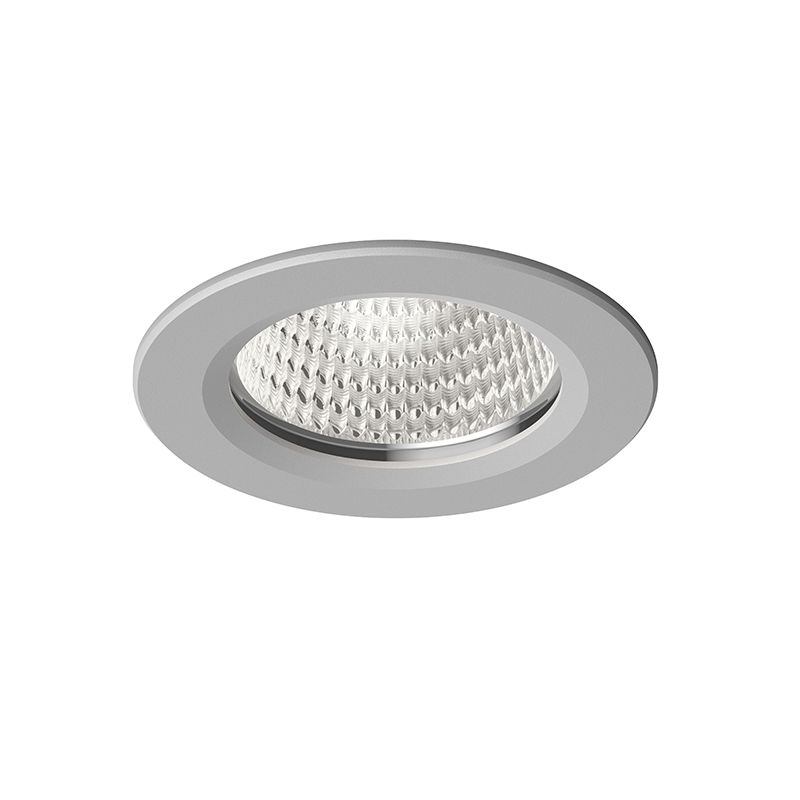

  • Colours: white, anthracite, silver on request

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8302019lm15W135
8402121lm15W141
9271645lm15W110
9301730lm15W115
9401818lm15W121
930PW1600lm15W107
8302466lm19W130
8402589lm19W136
92720008lm19W1053
9302112lm19W111
9402220lm19W117
930PW2022lm19W106
P System : The value can be up to 10% higher.

More information

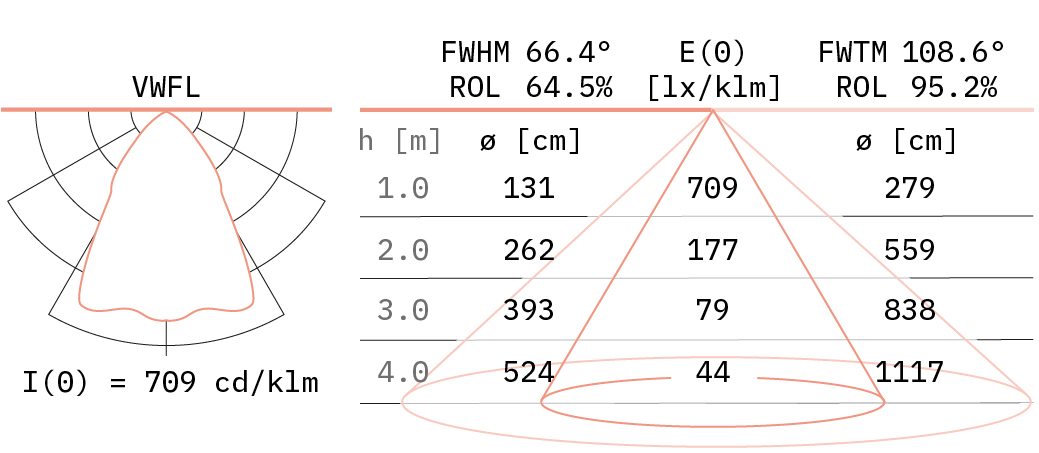

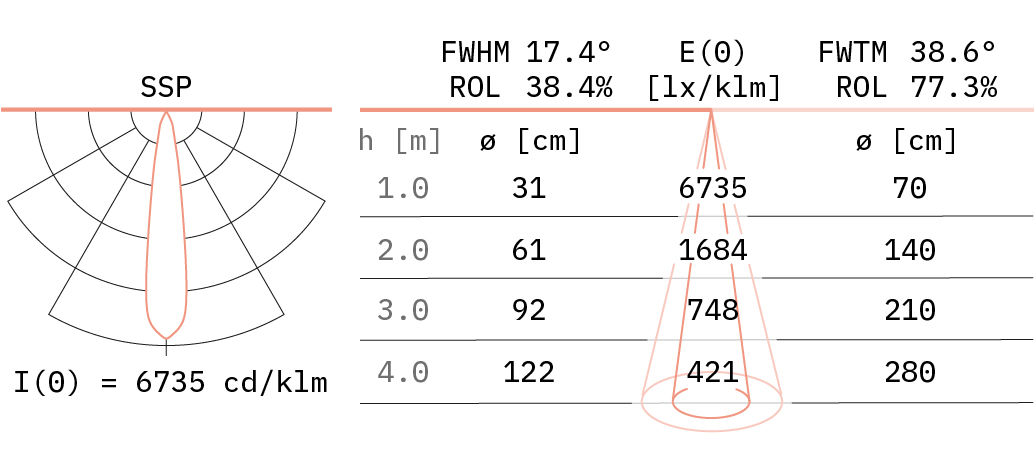

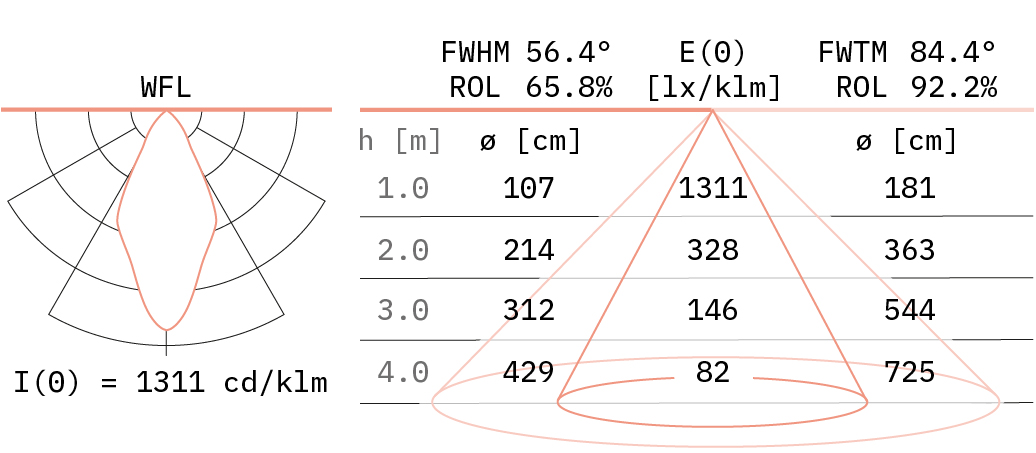

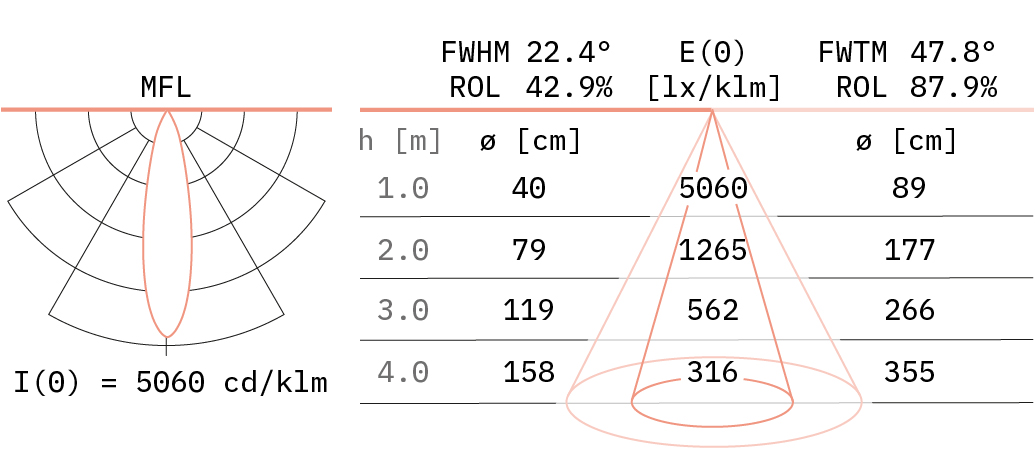

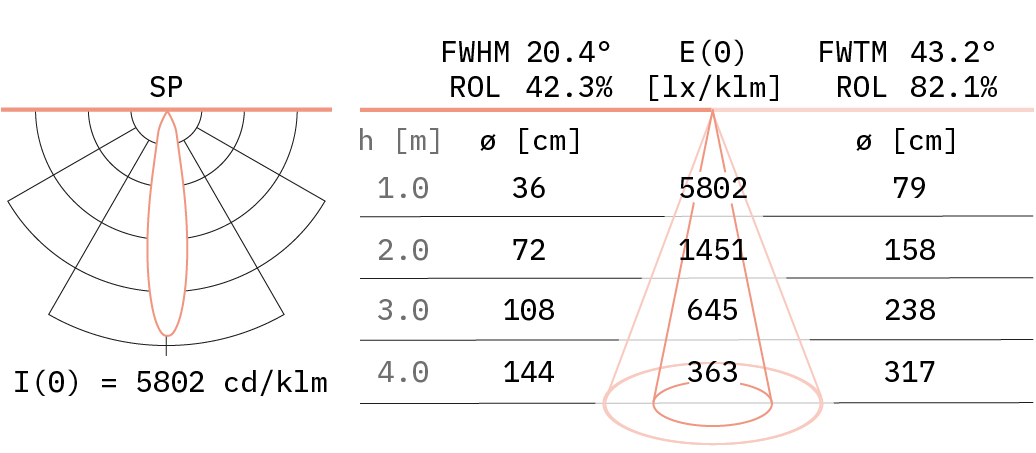

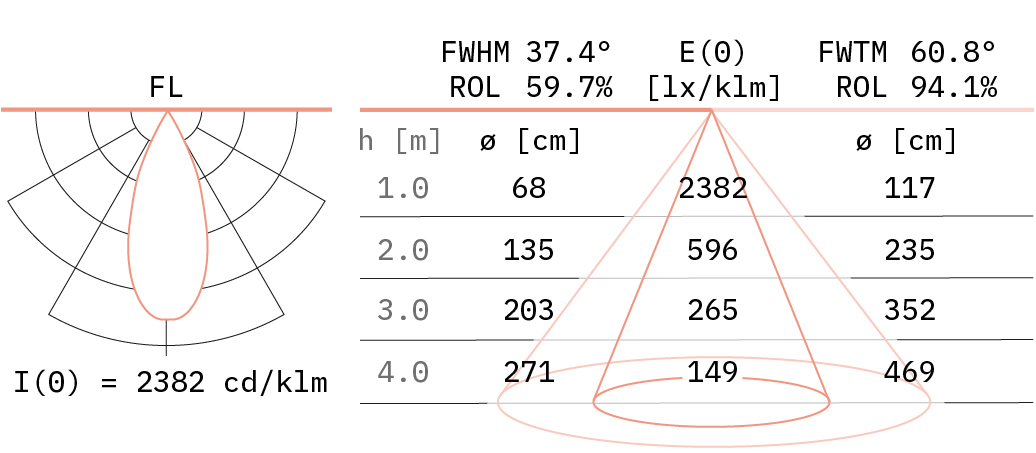

Lighting distribution

(Kopie 5)

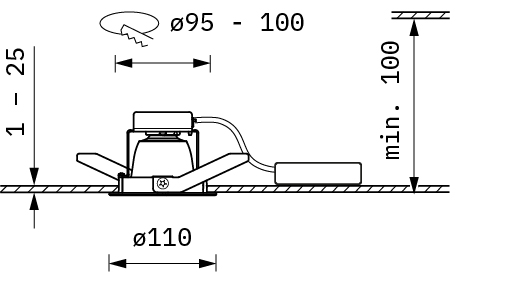

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,4 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A25
Protection class1
Type of protectionIP20
Certification markENEC / CB in preparation

Documents and Downloads

Here you find all downloads for our luminaire Maxx MXD.

TitleFileType|Size
Mounting instructions Maxx MXD 62BD0739-B_Maxx_MXD.pdfPDF | 1.1 MB
Mounting instructions Maxx MXD 62BD0739-B_Maxx_MXD.pdfPDF | 1.1 MB
Technical data sheet Maxx MXD Maxx_MXD_EN_01.pdfPDF | 219.0 KB
LDT data Maxx MXD Maxx_MXD.zipZIP | 418.4 KB
