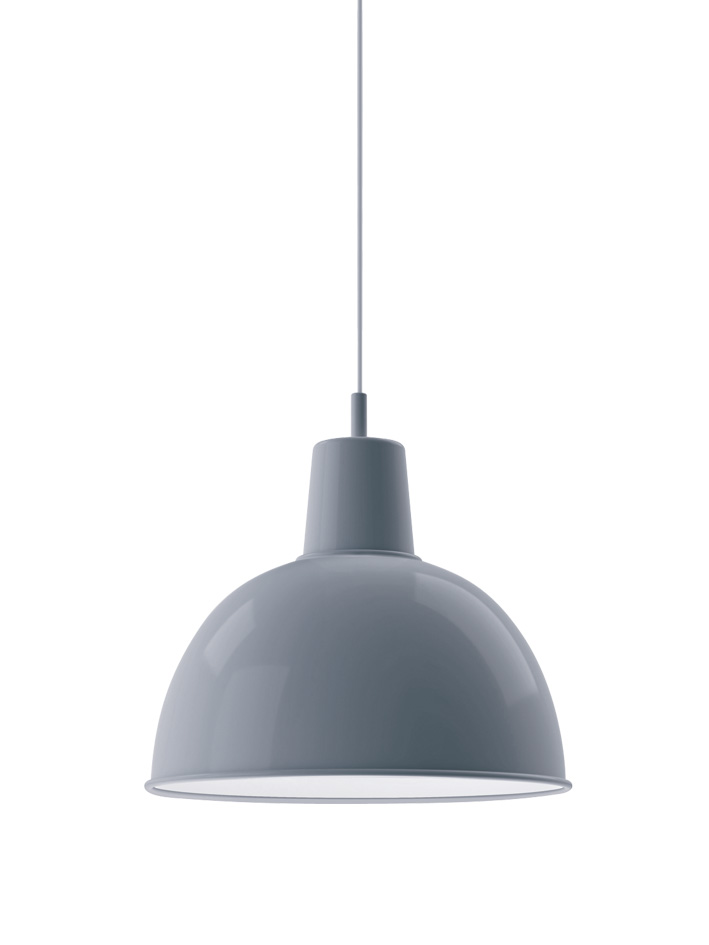

Mona MIL

  • Lighting technology LED
  • Suspended luminaire for t hree-circuit track or
    surface mount ing
  • Lamp shade in two sizes and three colours
  • Textile suspension wire, black or white
  • With integral reflector SSP, SP, MFL, FL or WFL
  • Supply unit included
  • Connection to mains by means of 3-pole terminal
    block or 3-circuit adapter
  • Version with DALI on request

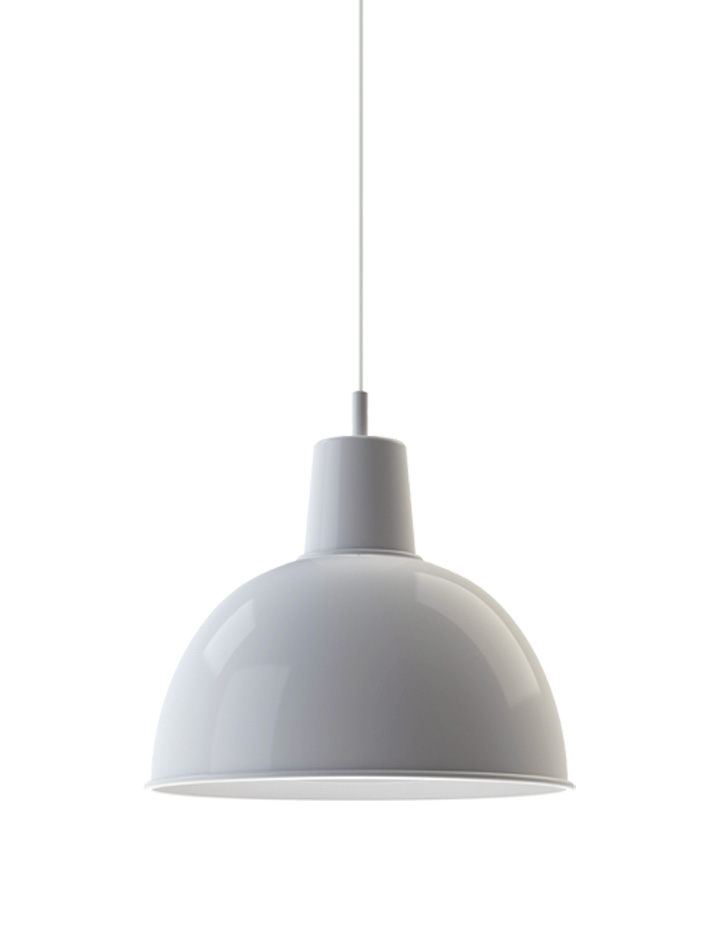

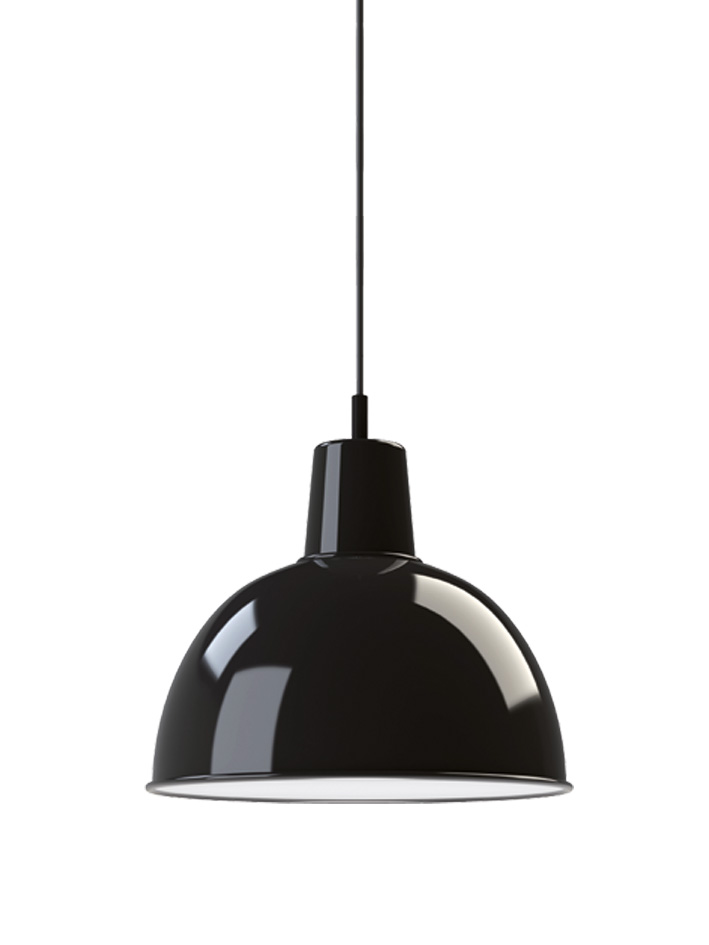

  • Colours: lamp shade white, black, grey - available
    in all RAL colours on request, lamp shade inside
    colour is always white

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8303550lm26,0W137
8403737lm26,0W144
9272892lm26,0W111
9303055lm26,0W118
9403202lm26,0W123
930PW2902lm26,0W112
8303989lm30,0W133
8404200lm30,0W140
9273250lm30,0W108
N272350lm30,0W78
9303433lm30,0W114
9403599lm30,0W120
930PW3251lm30,0W108
8304417lm34,0W130
8404651lm34,0W137
9273599lm34,0W106
9303802lm34,0W112
9403985lm34,0W117
930PW3586lm34,0W105
8305029lm40,0W126
8405086lm40,0W127
9274097lm40,0W102
N273081lm40,0W77
9304328lm40,0W108
9404536lm40,0W113
Meat2374lm40,0W59
930PW4052lm40,0W101
Nmeat1904lm40,0W48
P System : The value can be up to 10% higher.

More information

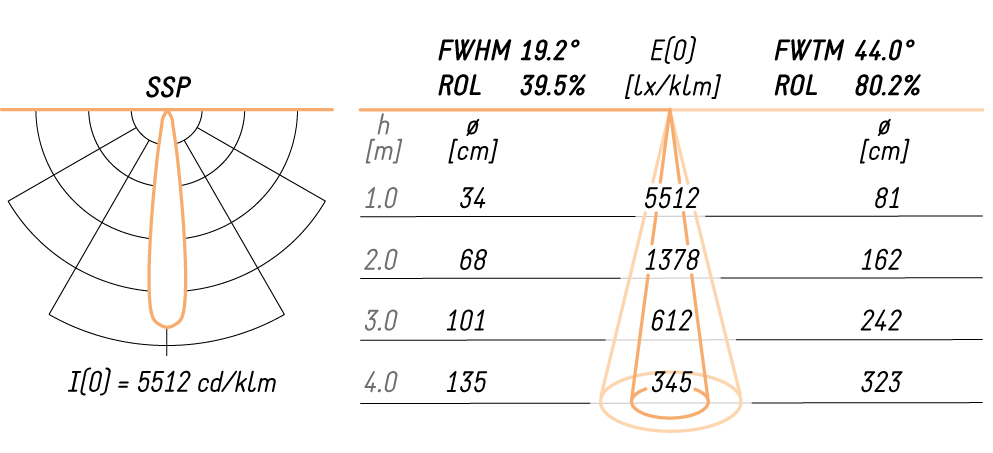

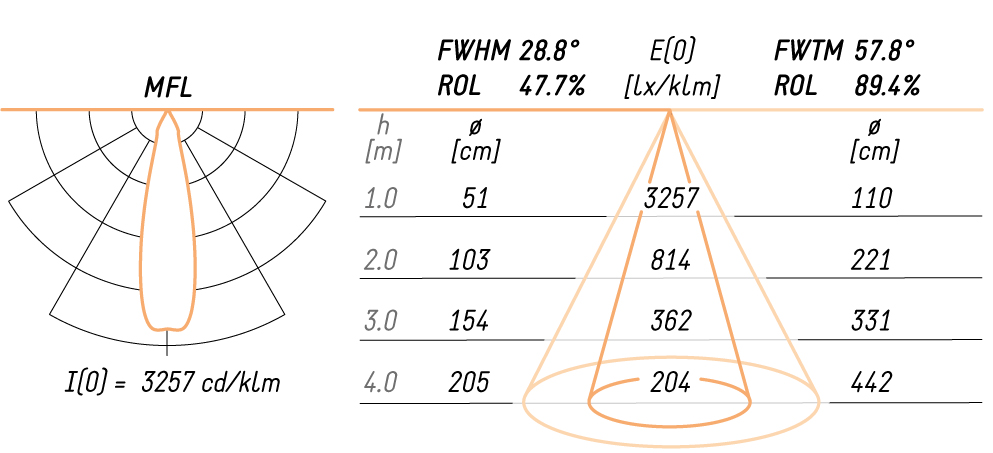

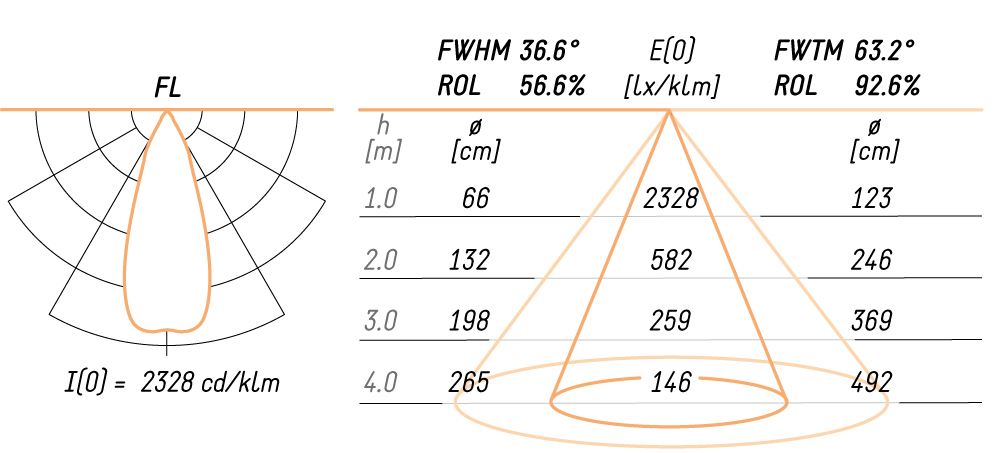

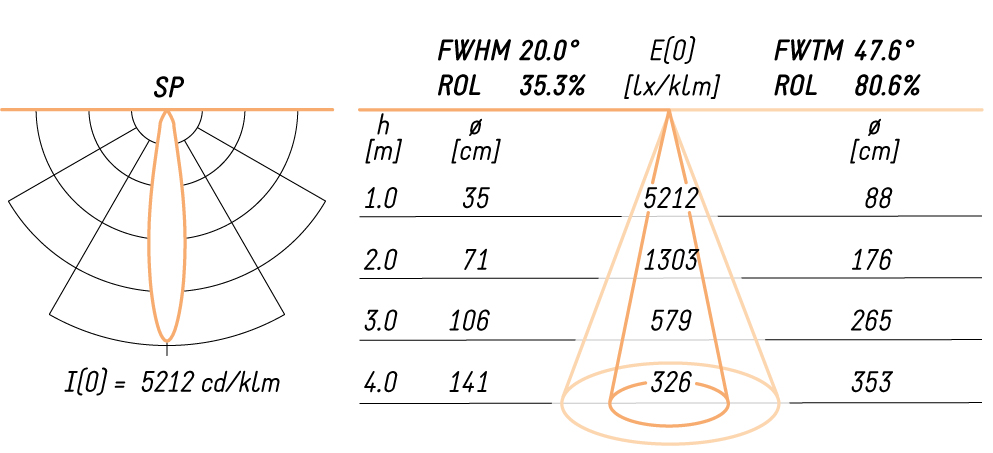

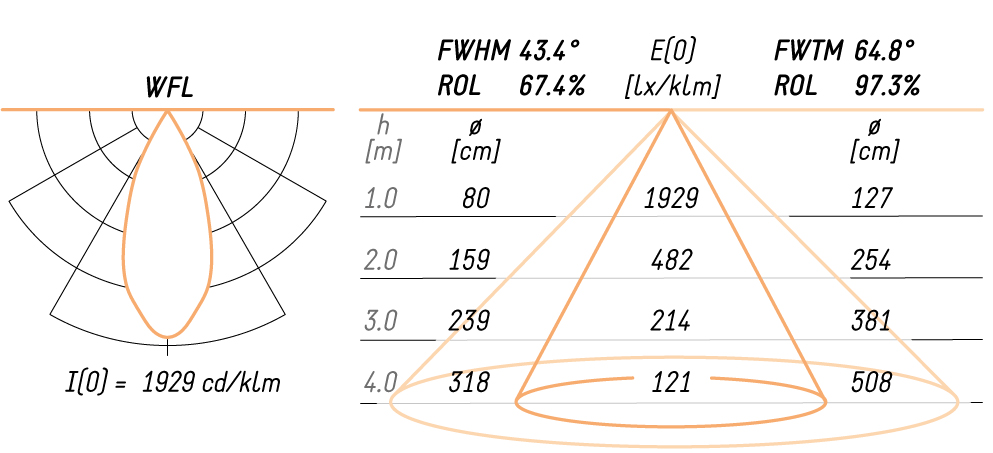

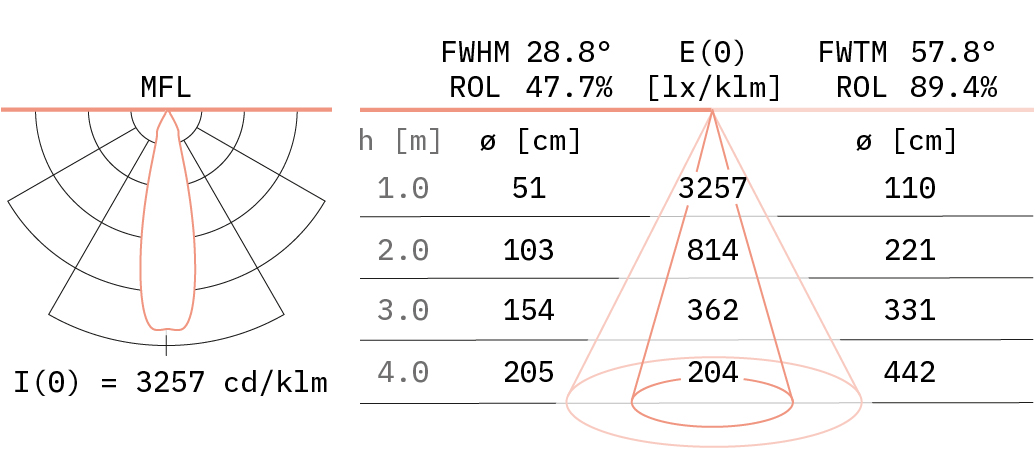

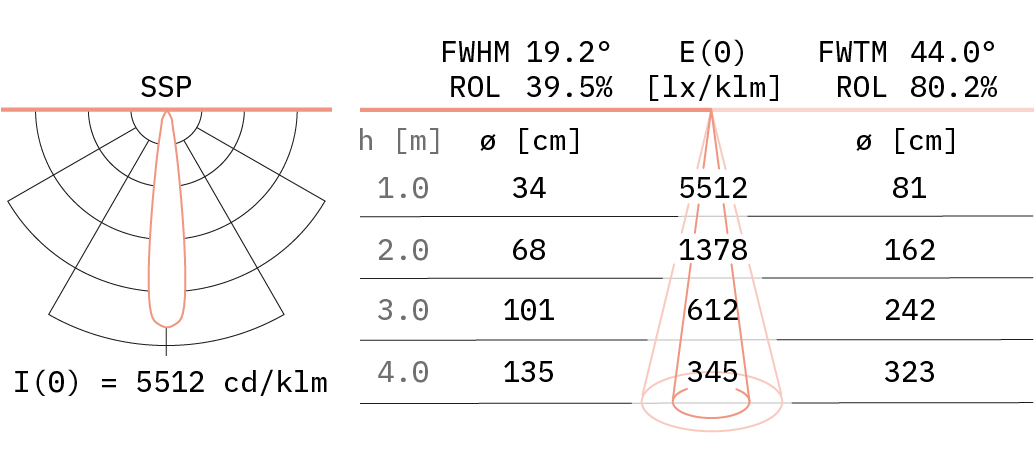

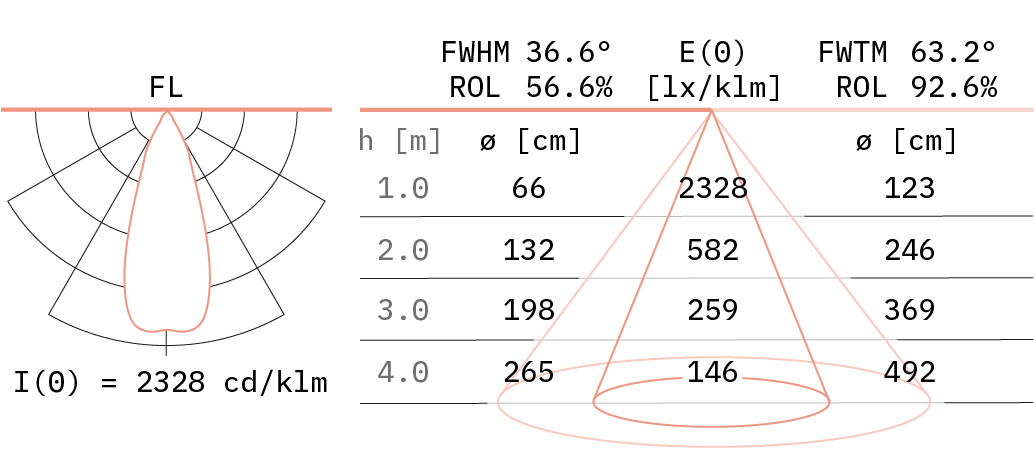

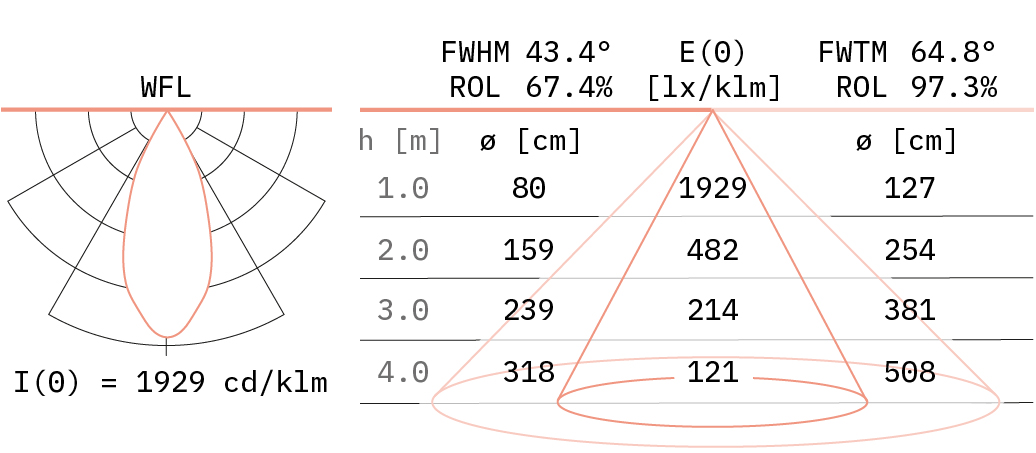

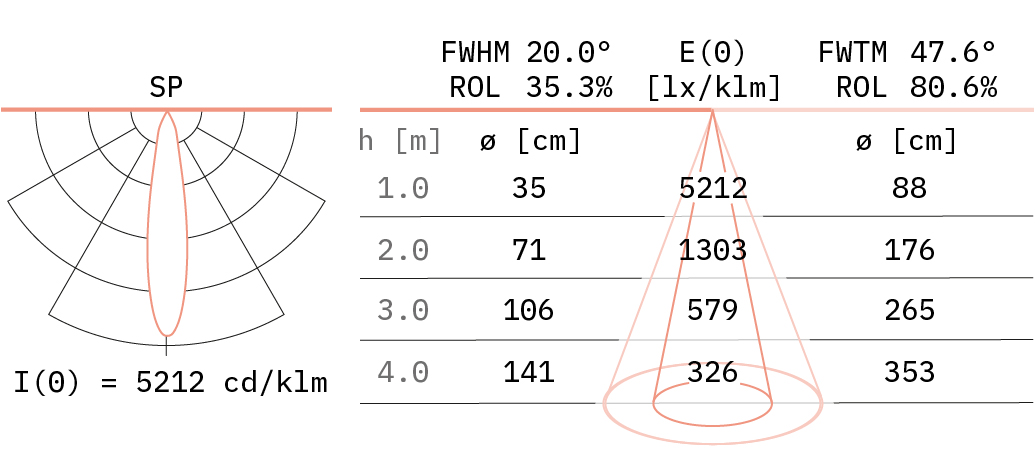

Lighting distribution

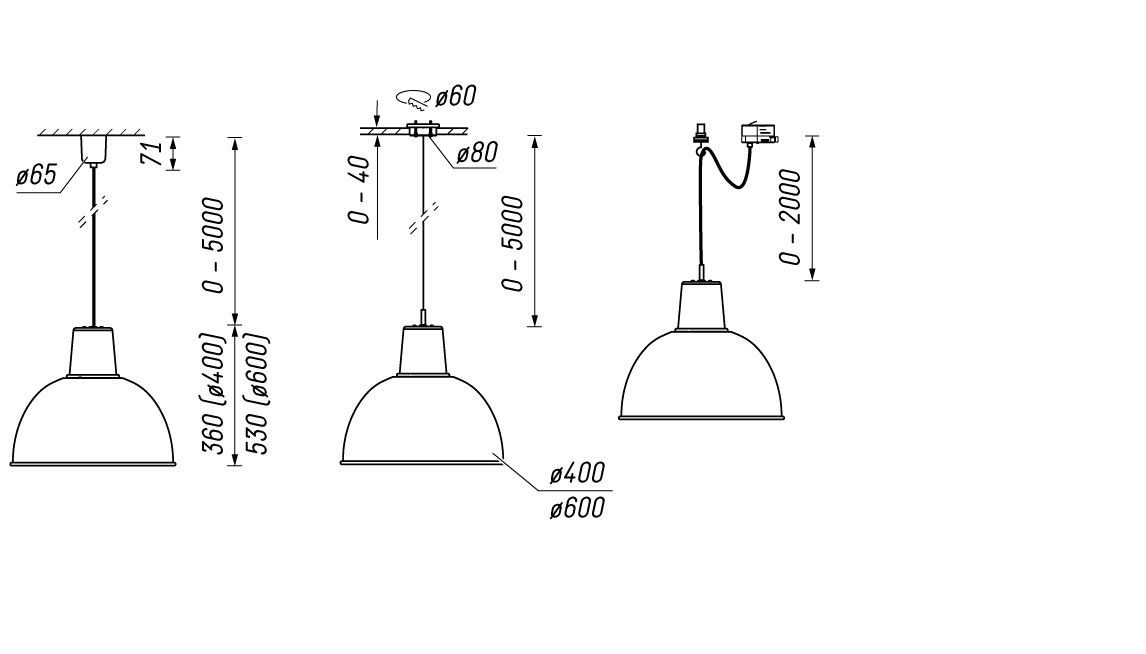

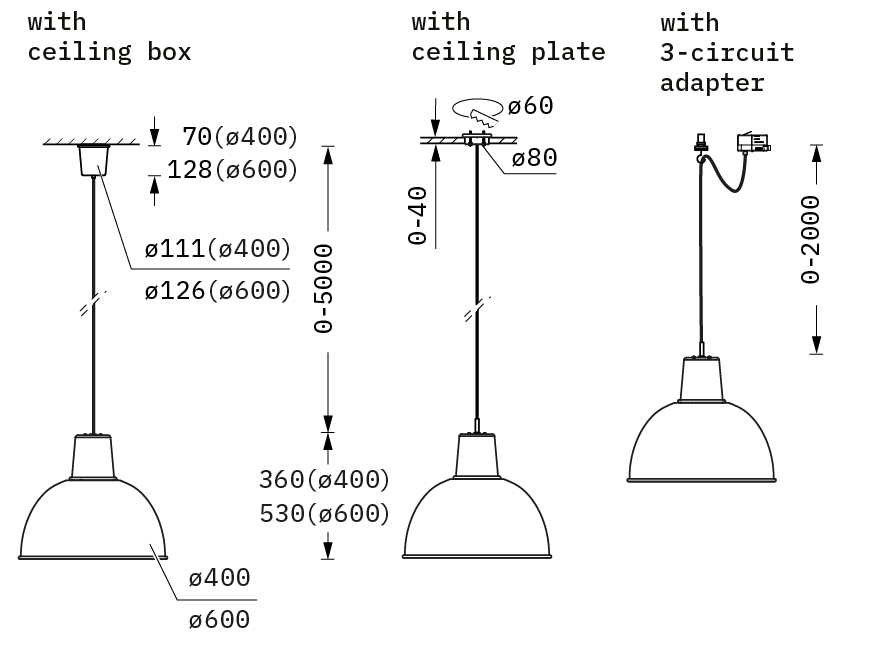

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 4,0 kg (ø 400) / 6,0 kg (ø 600)
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A25
Protection class1
Type of protectionIP20
Certification markENEC / CB

Documents and Downloads

Here you find all downloads for our luminaire Mona MIL.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Technical data sheet Mona MIL Mona_MIL_EN_01.pdfPDF | 260.5 KB
Montageanleitung Mona MIL 62BD0690_Mona_MIL.pdfPDF | 1.8 MB
