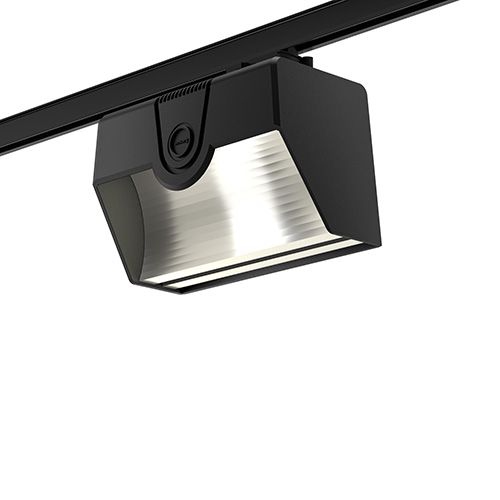

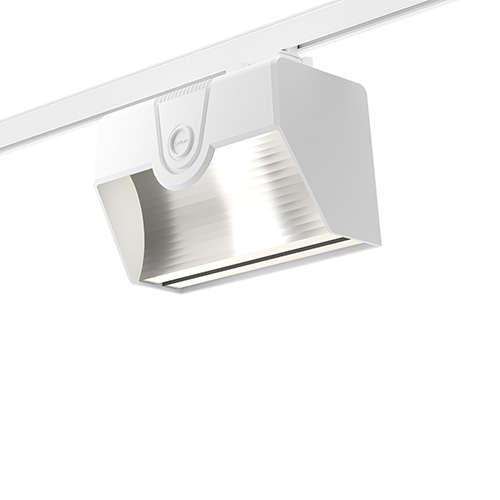

Navo NLT DF

  • Lighting technology LED
  • Spotlight as directional washer
  • Tool-less mounting with track adapter for
    three-circuit track (Stucchi) or ceiling mounting
  • Floor and wall mounting not permitted
  • Tilting (180°)
  • With integral reflector DF-NB or DF-WW
  • The light distribution is adjustable in 5 steps
    (position 0 to 4)
  • Supply unit included
  • Version with DALI on request

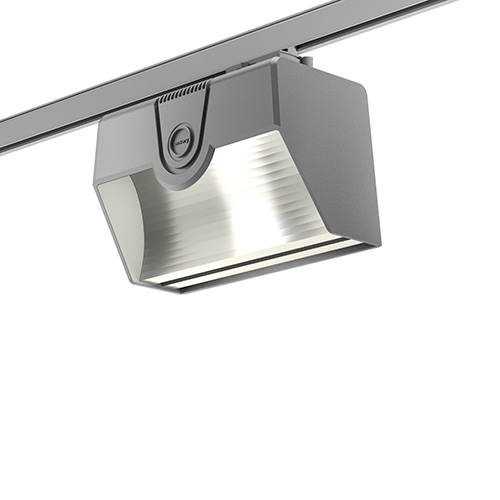

  • Colours: white, anthracite, silver on request

Product details

Power level [W]

    Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
    P System : The value can be up to 10% higher.

    More information

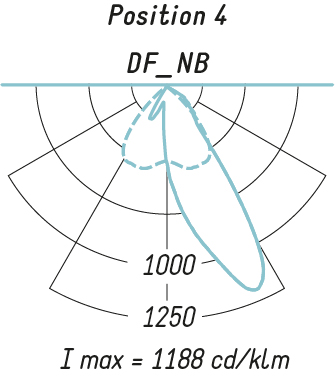

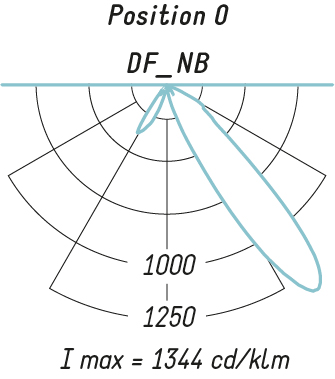

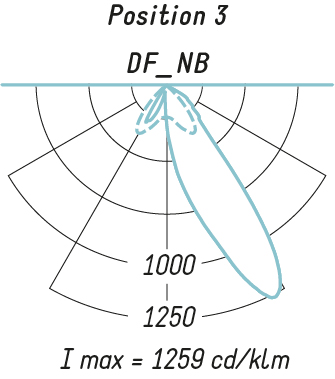

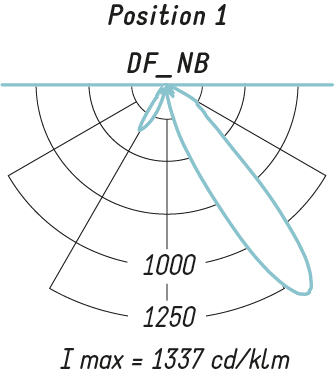

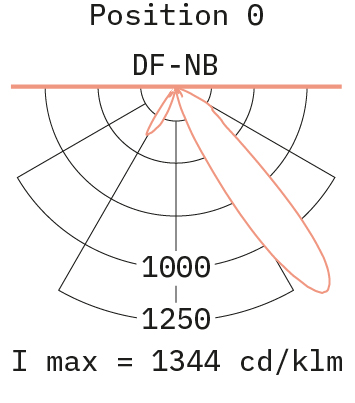

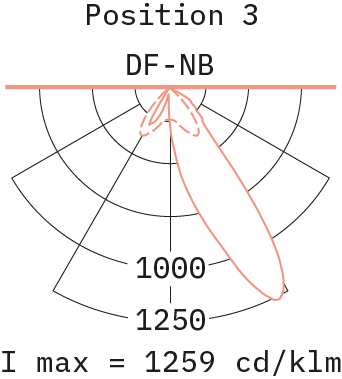

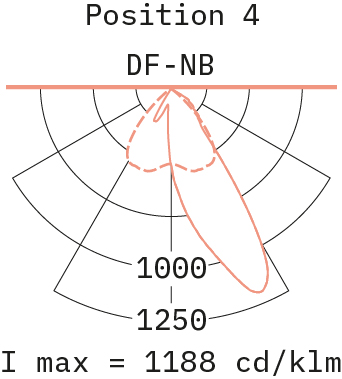

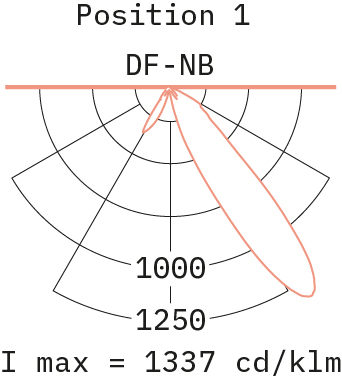

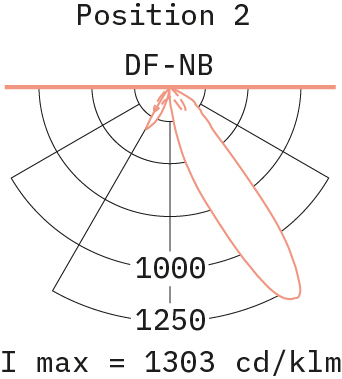

    Lighting distribution DF-NB

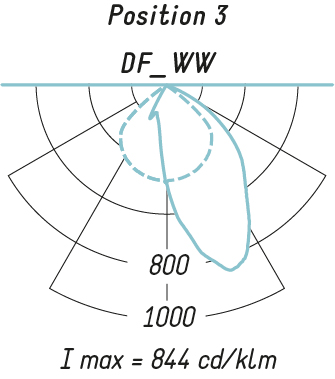

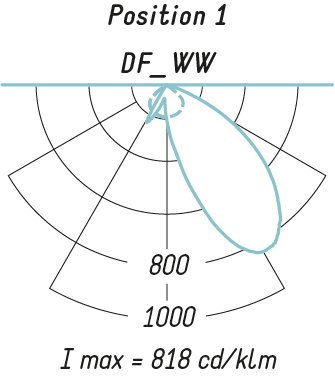

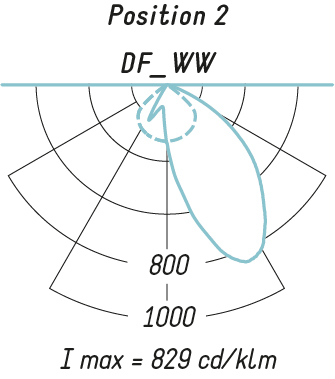

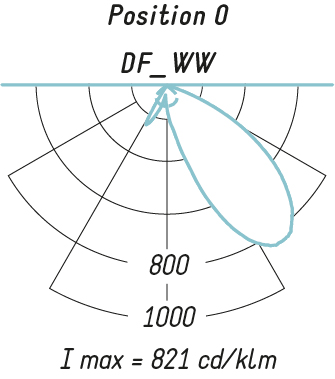

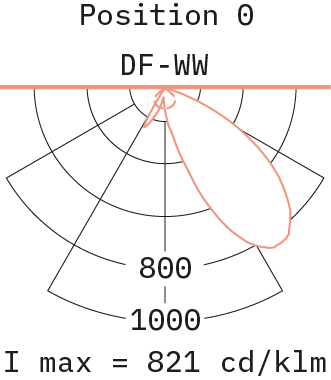

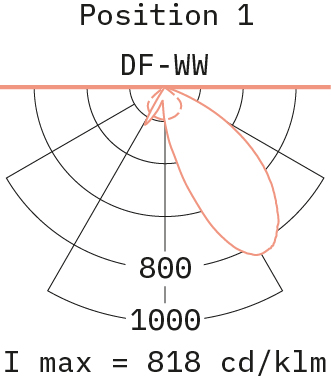

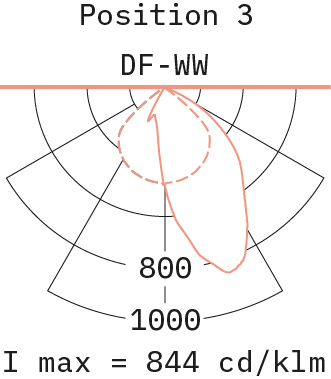

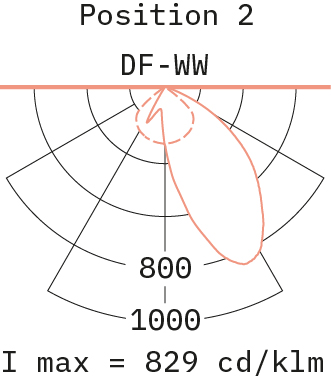

    Lighting distribution DF-WW

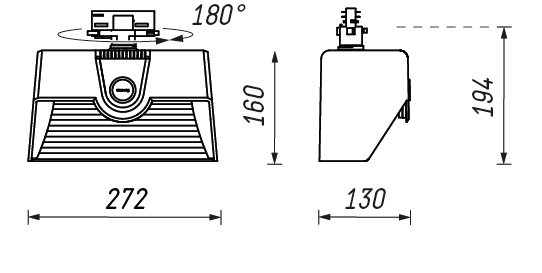

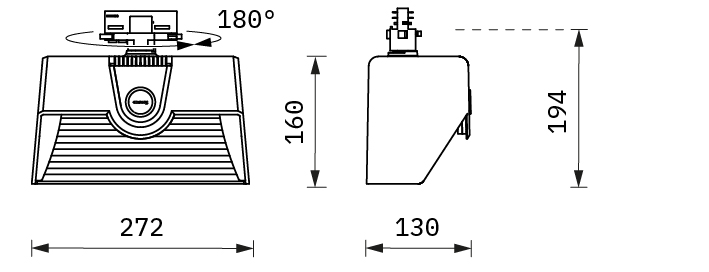

    Technical drawing

    Technical data

    InformationValues
    Connection data220-240 V, 50/60 Hz (110-277 V on request)
    Weightapprox. 2,0 kg
    Colour tolerance3SDCM (MacAdam)
    Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
    L90/B50 ≥ 50.000h, Ta 25 °C
    Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
    Photobiological safetyRG1
    Number per circuit breaker B 16A24
    Protection class1
    Type of protectionIP20
    Certification markENEC/ CB
      Optional accessoriesProduct
    Filter for glare reduction
    Dust cover (set for 25 luminaires)
    Installation and aiming support (set of 3 pieces)

    Documents and Downloads

    Here you find all downloads for our luminaire Navo NLT DF.

    TitleFileType|Size
    General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
    Mounting instructions Navo NLT DF 62BD0749-C_Navo_NLT_DF.pdfPDF | 1.6 MB
    Technical data sheet Navo NLT DF Navo_NLT_DF_EN_01.pdfPDF | 755.3 KB
