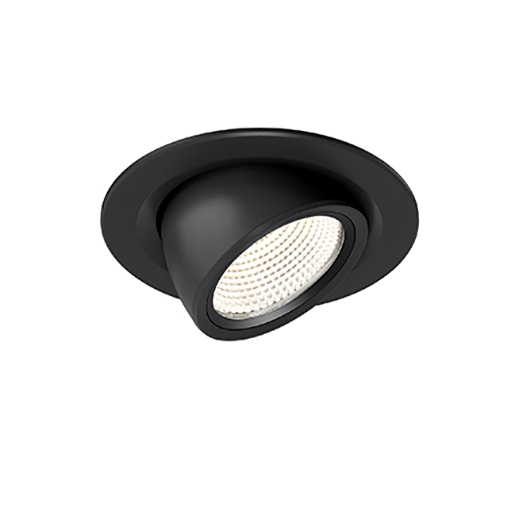

Punta PMR

  • Lighting technology LED
  • Tool-less ceiling mounting
  • Ceiling cut-out Ø155 mm
  • Floor and wall mounting not permitted
  • Turning and tilting (360°/65°)
  • With integral reflector SSP, SP, MFL, FL or WFL
  • Supply unit included
  • Connection to power supply by Wieland plug
    GST18i3; wire length l = 0.5 m
  • Version with DALI or Casambi on request
    (Casambi not compatible with metal ceilings)

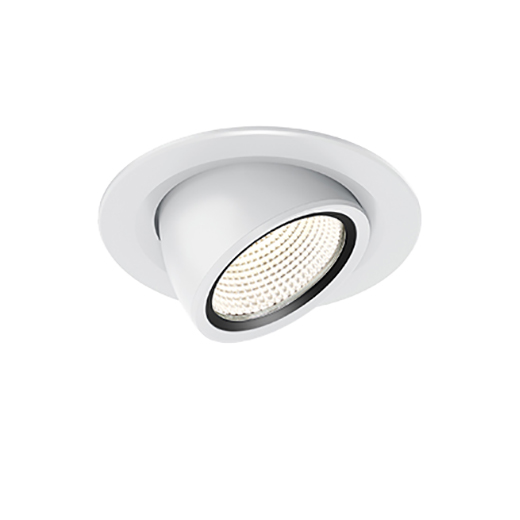

  • Colours: white, anthracite

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8303550lm26W137
8403737lm26W144
9272892lm26W111
9303055lm26W118
9403202lm26W123
930PW2902lm26W112
8303989lm30W133
8404200lm30W140
9273250lm30W108
9303433lm30W114
9403599lm30W120
930PW3251lm30W108
8304417lm34W130
8404651lm34W137
9273599lm34W106
9303802lm34W112
9403985lm34W117
930PW3586lm34W105
8304969lm40W124
8405233lm40W131
9274049lm40W101
N273118lm40W78
9304277lm40W107
9404483lm40W112
930PW4004lm40W100
Meat+2346lm40W59
Nmeat1882lm40W47
P System : The value can be up to 10% higher.

More information

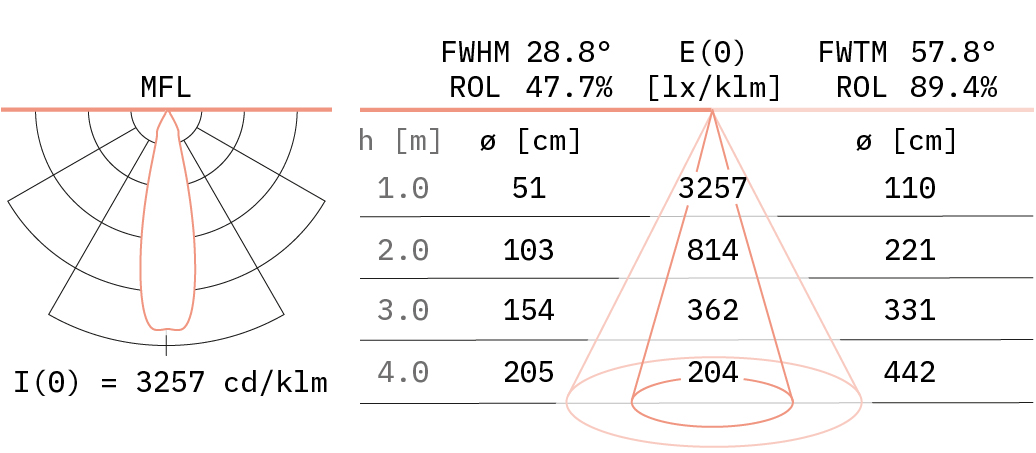

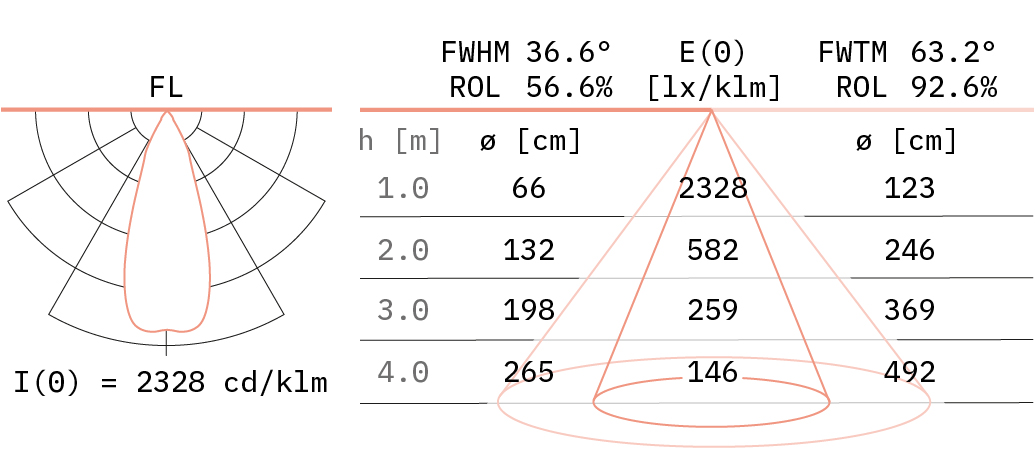

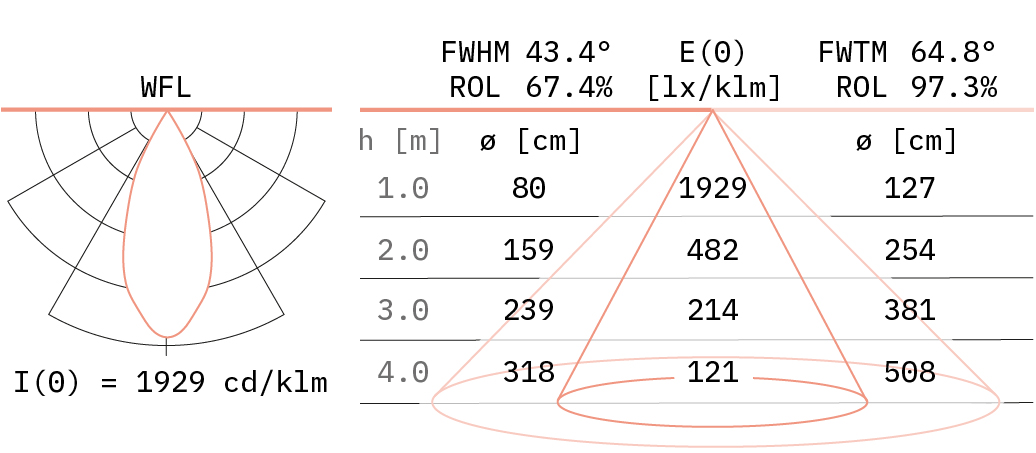

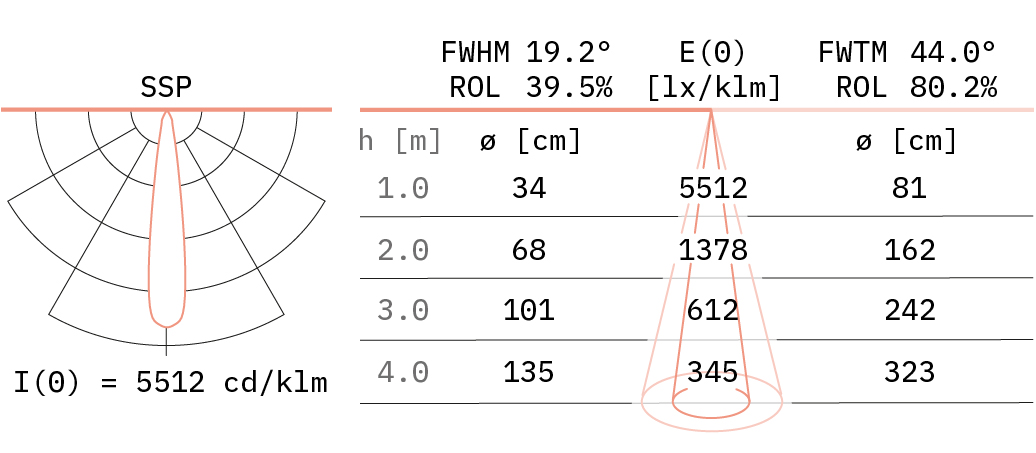

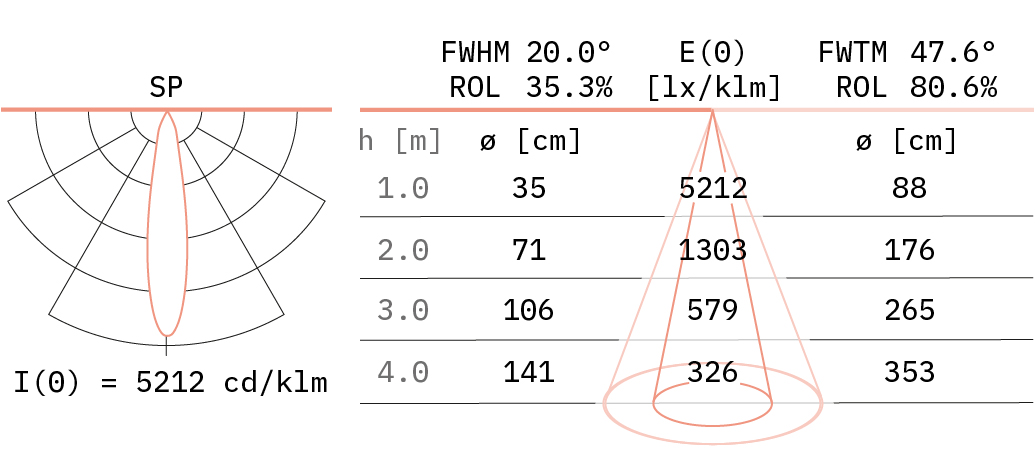

Lighting distribution

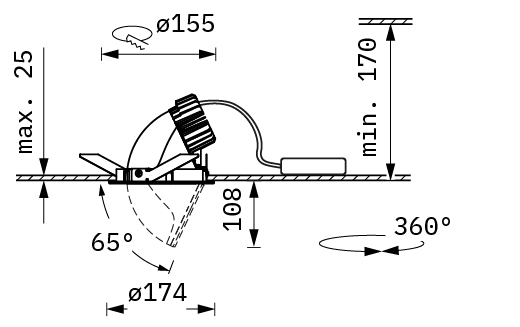

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 1,0 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A25
Protection class1
Type of protectionIP20
Certification markENEC / CB

Documents and Downloads

Here you find all downloads for our luminaire Punta PMR.

TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Punta PMR 62BD0727-C_Punta_PMR.pdfPDF | 1.8 MB
Technical Data Sheet Punta PMR Punta_PMR_EN_01.pdfPDF | 315.4 KB
LDT data Punta PMR Punta_PMR.zipZIP | 424.4 KB
