Punta PXR

  • Lighting technology LED
  • Tool-less ceiling mounting
  • Ceiling cut-out Ø95 mm
  • Floor and wall mounting not permitted
  • Turning and tilting (355°/45°)
  • With integral reflector SP, MFL or FL
  • Supply unit included
  • Connection to power supply by Wieland plug
    GST18i3; wire length l = 0.5 m
  • Version with DALI or Casambi on request
    (Casambi not compatible with metal ceilings)

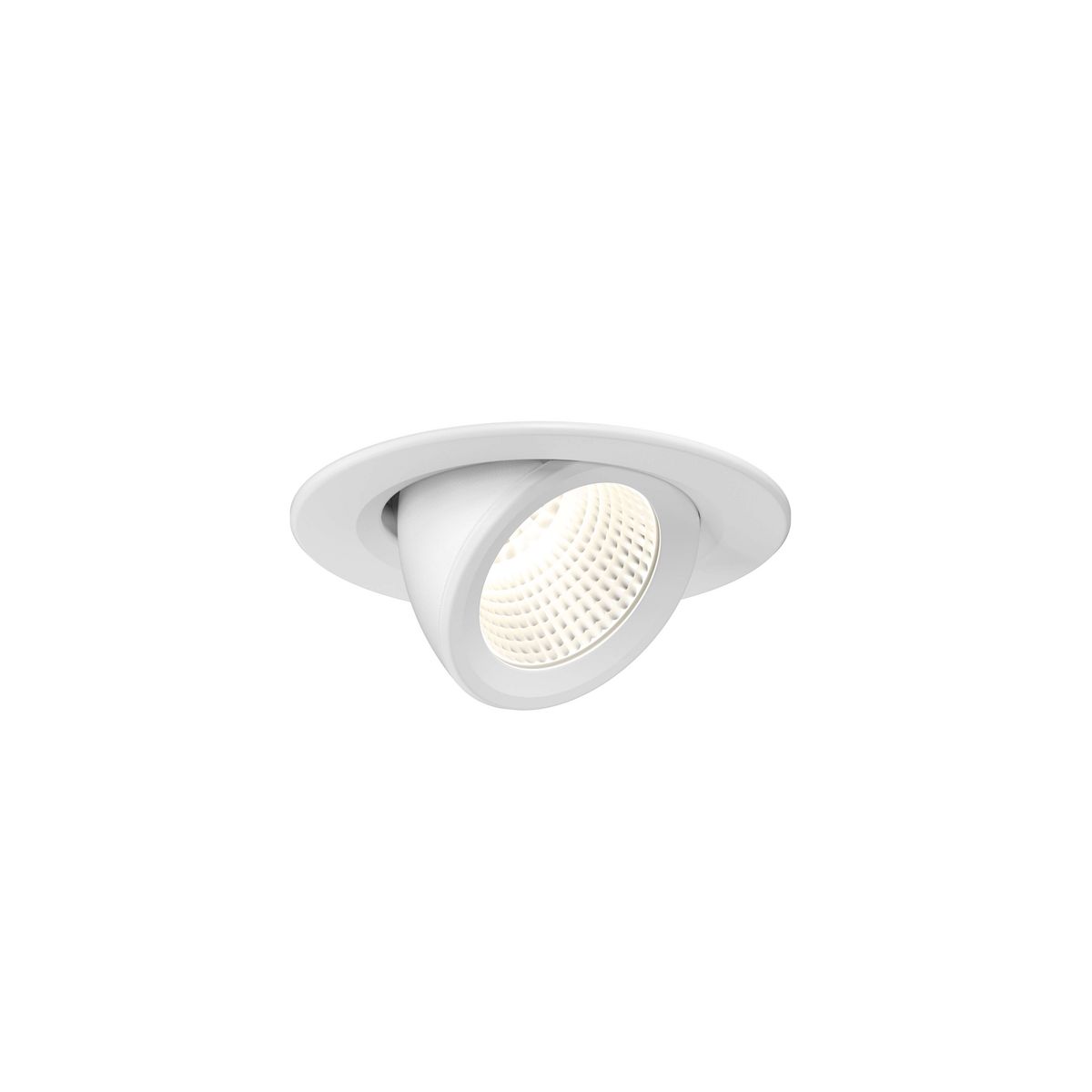

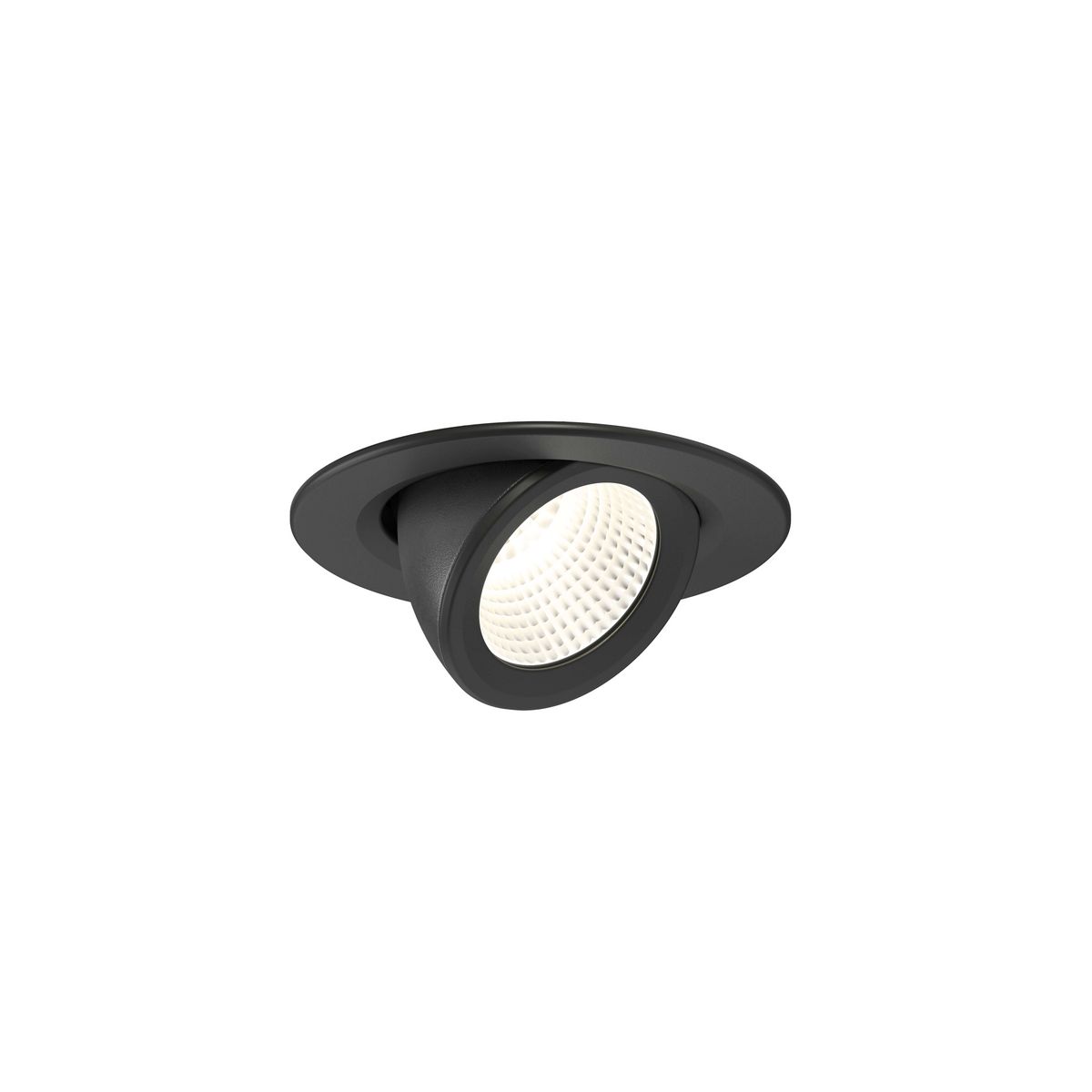

  • Colours: white, anthracite

Product details

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8301398lm11W127
8401468lm11W133
9271139lm11W104
9301198lm11W109
9401258lm11W114
930PW1111lm11W101
8301783lm16W111
8401873lm16W117
9271452lm16W91
9301528lm16W96
9401605lm16W100
930PW1393lm16W87
P System : The value can be up to 10% higher.

More information

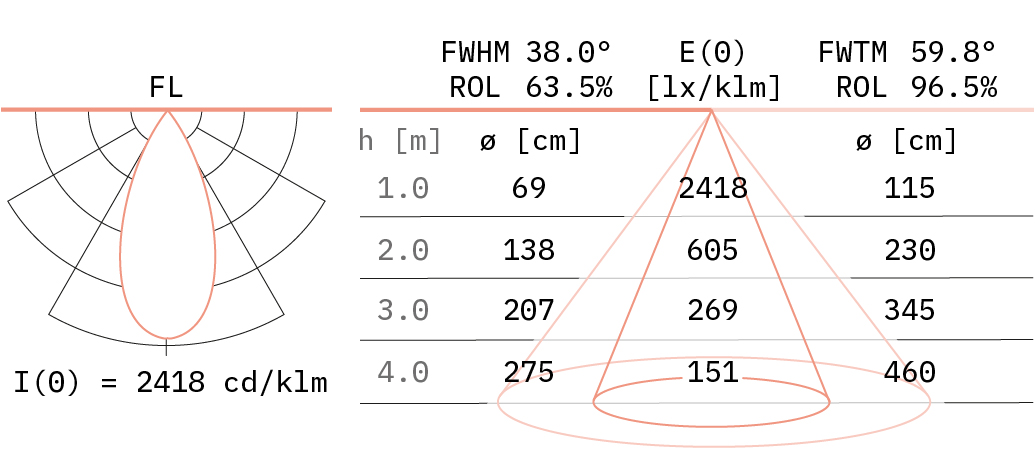

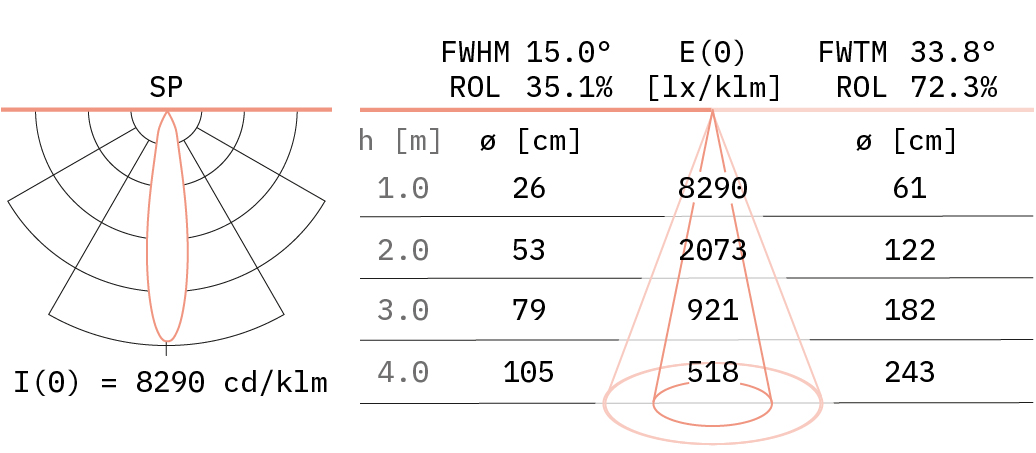

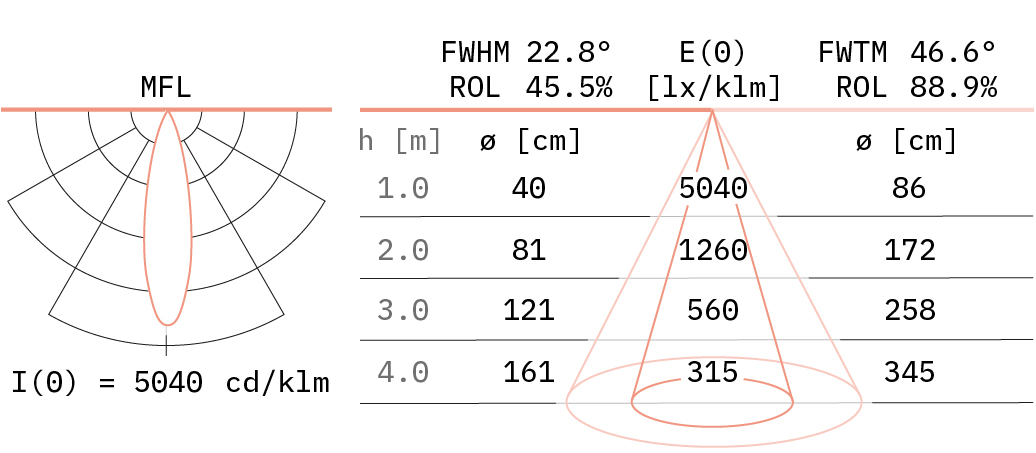

Lighting distribution

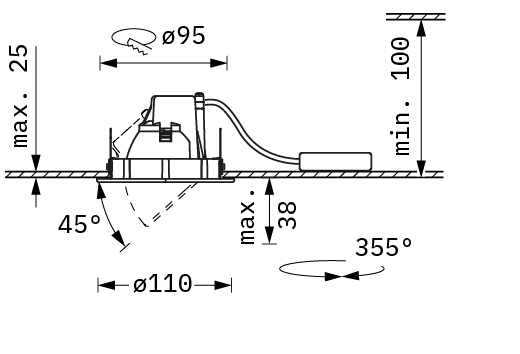

Technical drawing

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 0,5 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A25
Protection class1
Type of protectionIP20
Certification markENEC / CB



Documents and Downloads

Here you find all downloads for our luminaire Punta PXR.



TitleFileType|Size
General mounting information 62BD0012-G_Montagehinweise.pdfPDF | 919.3 KB
Mounting instructions Punta PXR 62BD0737-D_Punta_PXR.pdfPDF | 1.8 MB
Technical Data Sheet Punta PXR Punta_PXR_EN_01.pdfPDF | 149.9 KB
LDT data Punta PXR Punta_PXR.zipZIP | 390.6 KB
