- Lighting technology LED
- Pendulum head for use with individual lamp
shades (with Ø 41mm aperture, max. weight
3 kg/and max. 2 kg with the model that has a

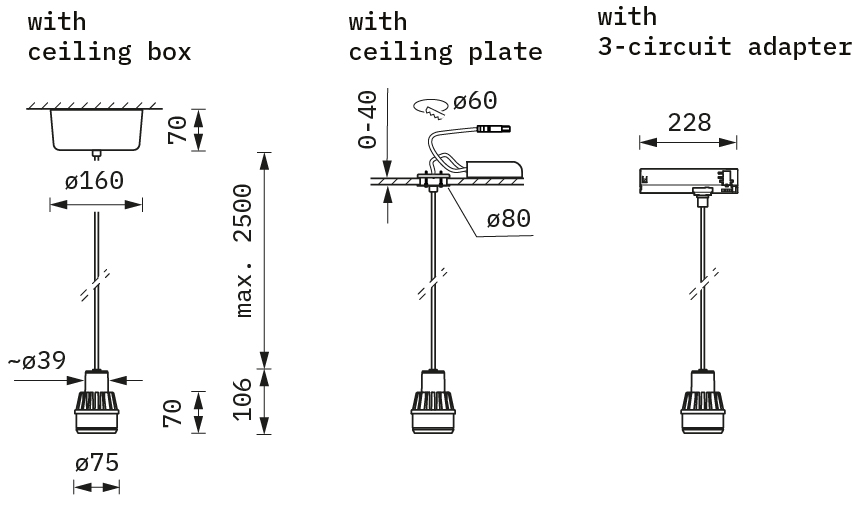

bus bar adapter and with DALI) - For three-circuit track or surface mounting

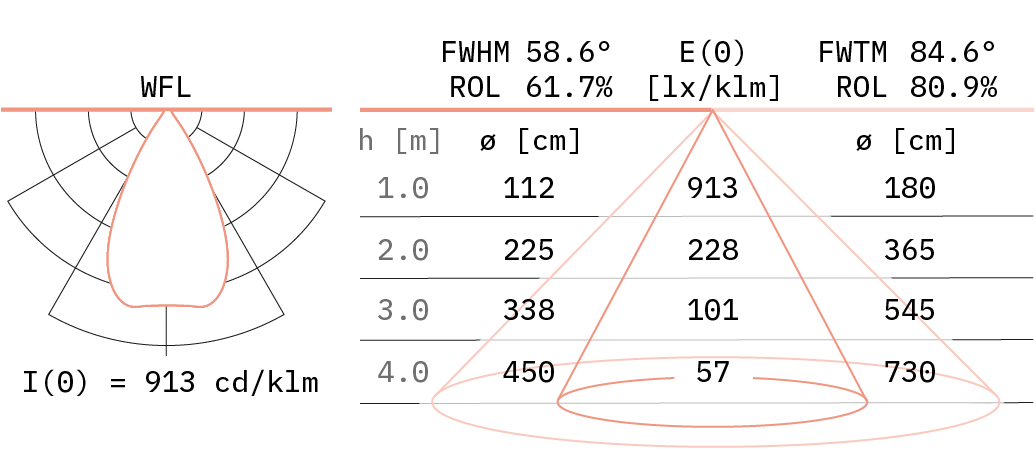

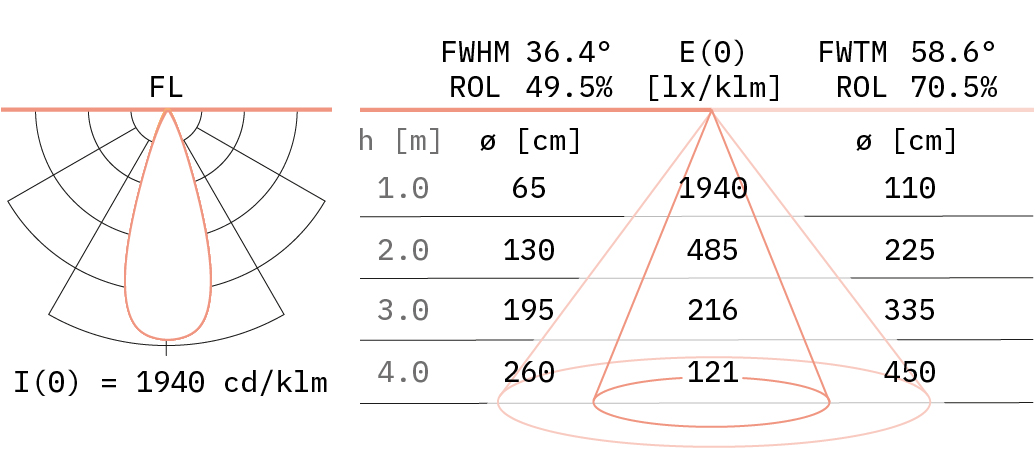

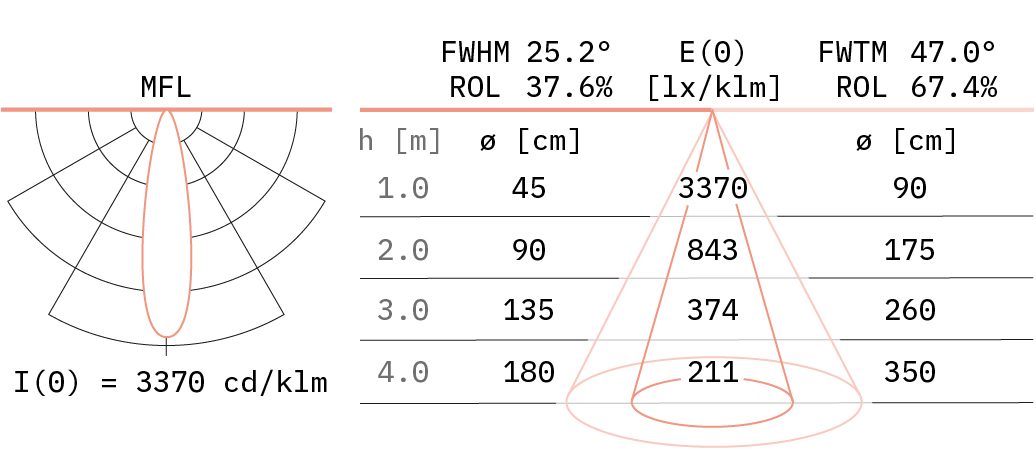

- Pendulum head with three different lenses (MFL,
FL or WFL) - Tool-less lens replacement
- Suspension wire, black or white
- Supply unit included
- Connection to mains by means of 3-pole terminal
block, 3-circuit adapter or by
Wieland plug GST18 - Version with DALI or Casambi on request
(Casambi not compatible with metal ceilings) - Colours: white, anthracite
Product details
| Light colourLight colour | Luminous flux [lm] | P System *[W] | System efficiency [lm/w] |
|---|---|---|---|
| 830 | 1854lm | 13W | 143 |
| 840 | 1946lm | 13W | 150 |
| 927 | 1510lm | 13W | 116 |
| N27 | 1120lm | 13W | 86 |
| 930 | 1586lm | 13W | 122 |
| 930PW | 1538lm | 13W | 118 |
| 830 | 2334lm | 17W | 137 |
| 840 | 2451lm | 17W | 144 |
| 927 | 1901lm | 17W | 112 |
| N27 | 1402lm | 17W | 82 |
| 930 | 1996lm | 17W | 117 |
| 930PW | 1934lm | 17W | 114 |
| 830 | 2793lm | 21W | 133 |
| 840 | 2932lm | 21W | 140 |
| 927 | 2275lm | 21W | 108 |
| N27 | 1670lm | 21W | 80 |
| 930 | 2382lm | 21W | 113 |
| 930PW | 2303lm | 21W | 110 |
| Nmeat | 1066lm | 21W | 51 |
| 830 | 3851lm | 31W | 124 |
| 840 | 4044lm | 31W | 130 |
| 927 | 3136lm | 31W | 101 |
| N27 | 2266lm | 31W | 73 |
| 930 | 3264lm | 31W | 105 |
| NMeat | 1435lm | 31W | 46 |
| 830 | 1352lm | 9W | 150 |
| 840 | 1420lm | 9W | 158 |
| 927 | 1101lm | 9W | 122 |
| N27 | 823lm | 9W | 91 |
| 930 | 1150lm | 9W | 128 |
| 930PW | 1116lm | 9W | 124 |
| P System : The value can be up to 10% higher. | |||
More information
Technical information
| Information | Values |
| Connection data | 220-240 V, 50/60 Hz (110-277 V on request) |
| Weight | approx. 1.5 kg with ceiling box approx. 1.0 kg with ceiling plate approx. 0.7 kg with 3-circuit adapter |
| Colour tolerance | 3SDCM (MacAdam) |
| Maintenance of luminous flux | L80/B10 ≥ 50.000h, Ta 25 °C L90/B50 ≥ 50.000h, Ta 25 °C |
| Failure rate | L0/B10 ≥ 50.000h, Ta 25 °C |
| Photobiological safety | RG1 |
| Number per circuit breaker B 16A | 25 |
| Protection class | 1 + 2 |
| Type of protection | IP20 |
| Certification mark | ENEC / CB in preparation |
