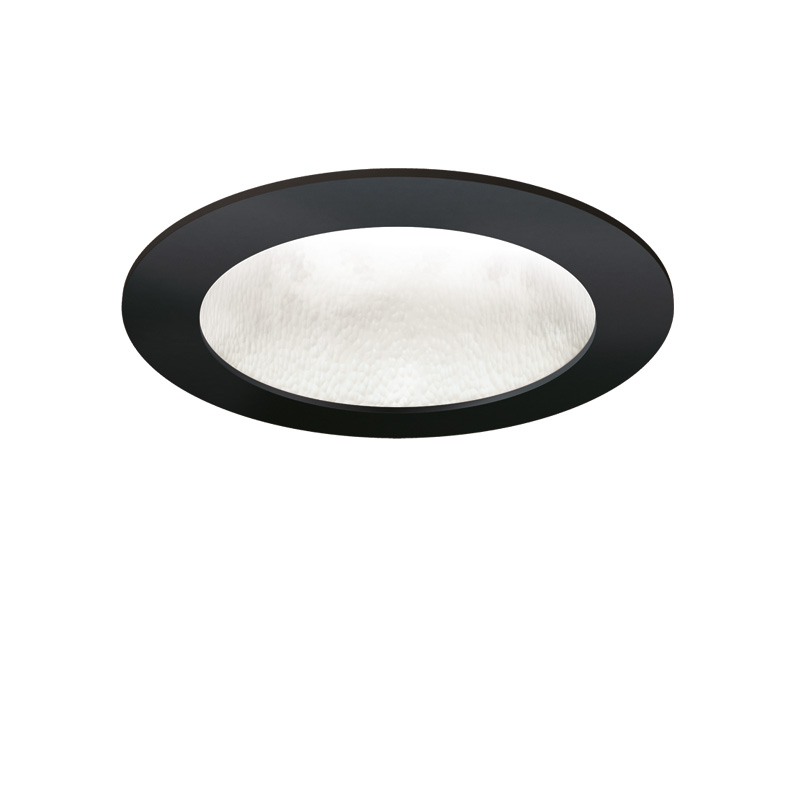

Maxx MMD
- Lighting technology LED
- Downlight

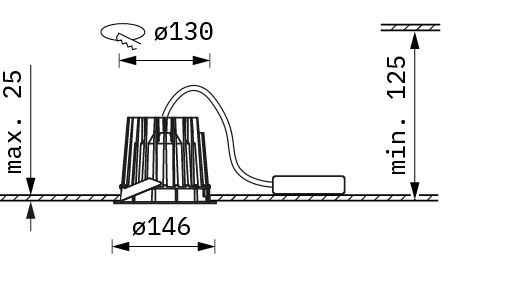

- Tool-less ceiling mounting
- Wall mounting not permitted

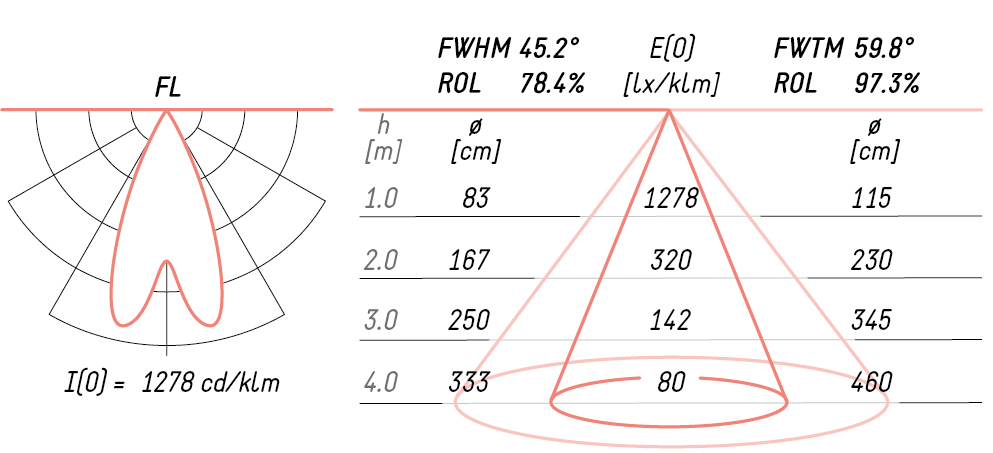

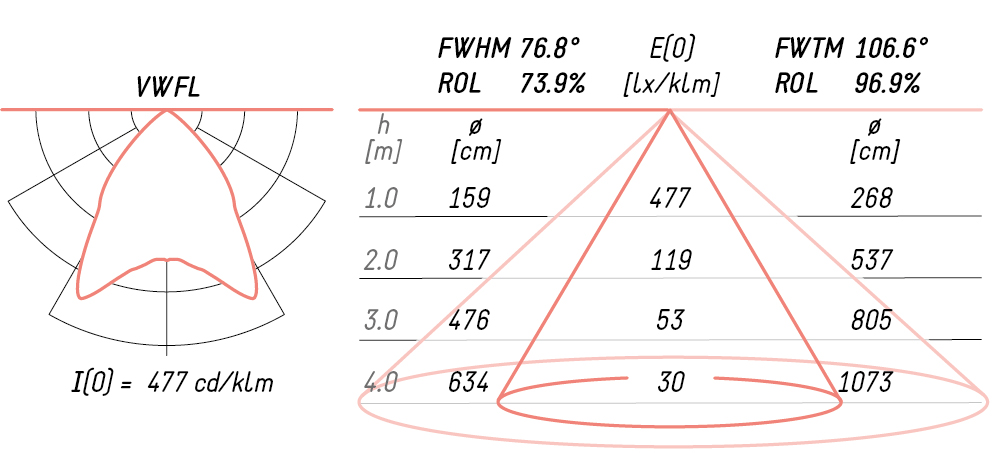

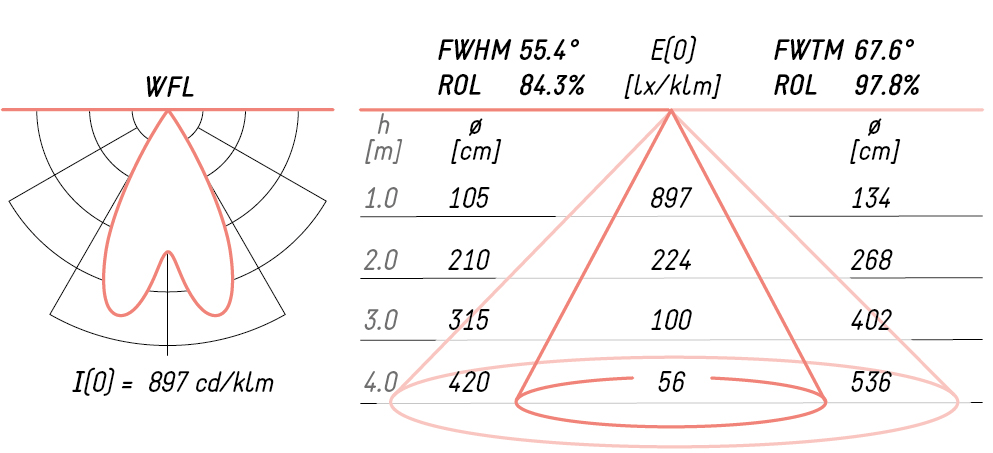

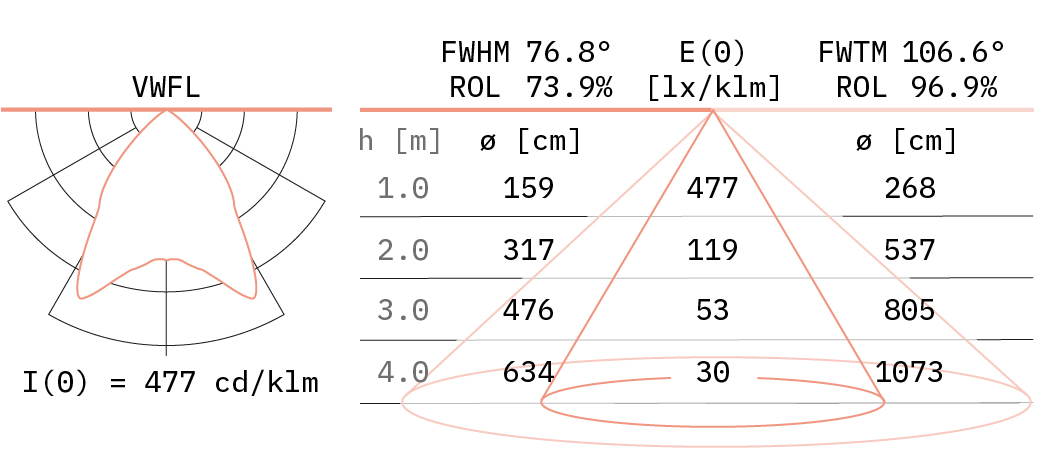

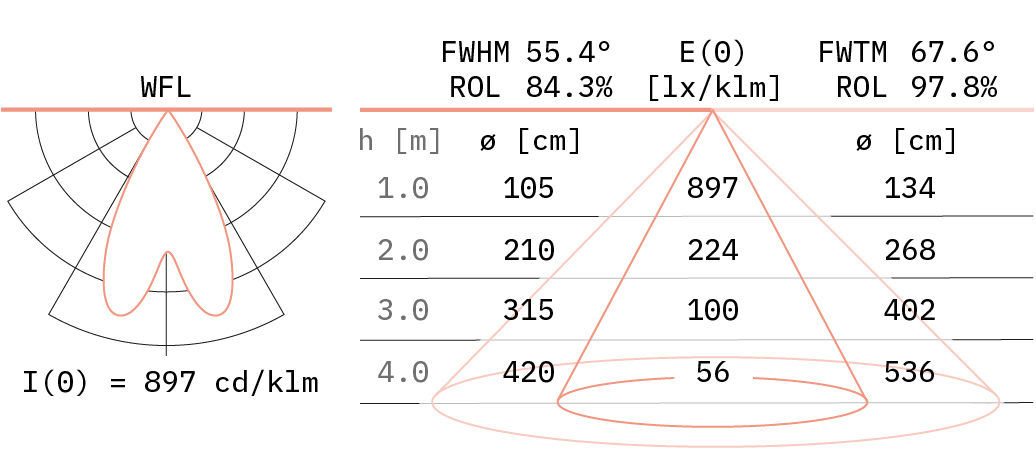

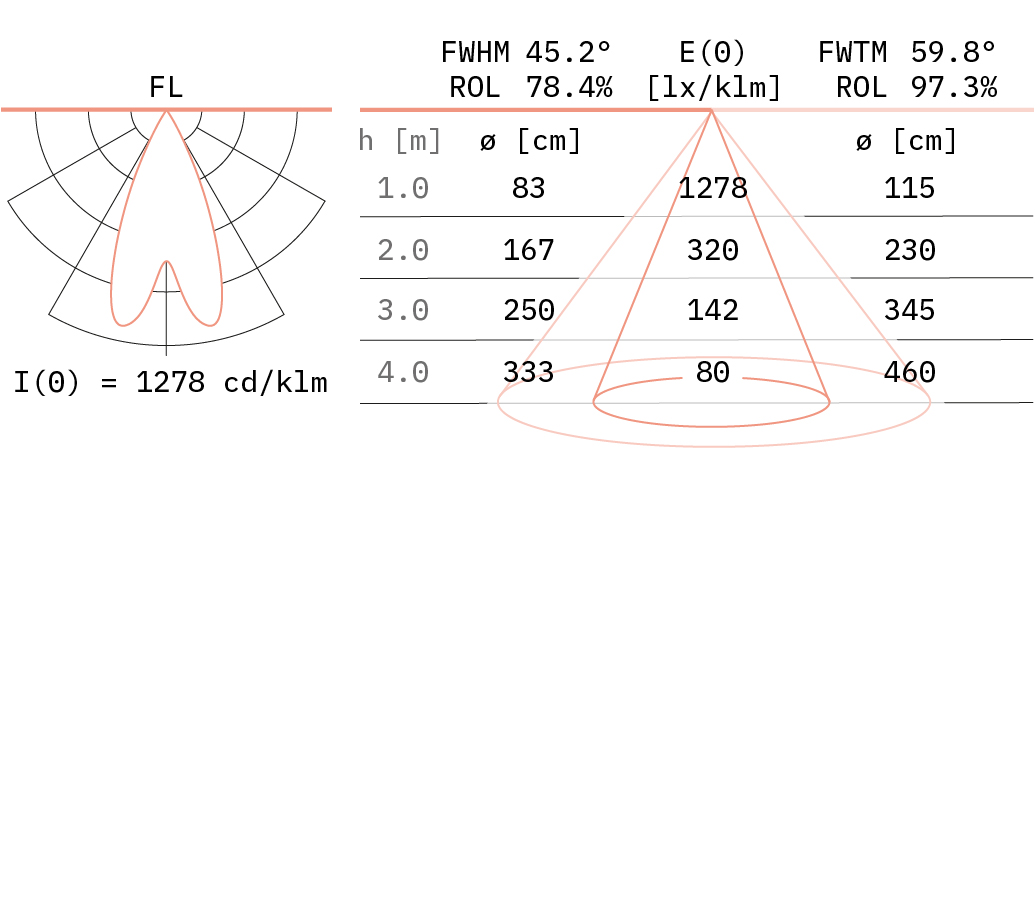

- With integral reflector FL, WFL or VWFL
- Supply unit included
- Connection to power supply by Wieland plug GST18i3; wire length l = 0.5 m
- DALI or INspire lighting control system on request (INspire Lighting Control not for use in metal ceilings)

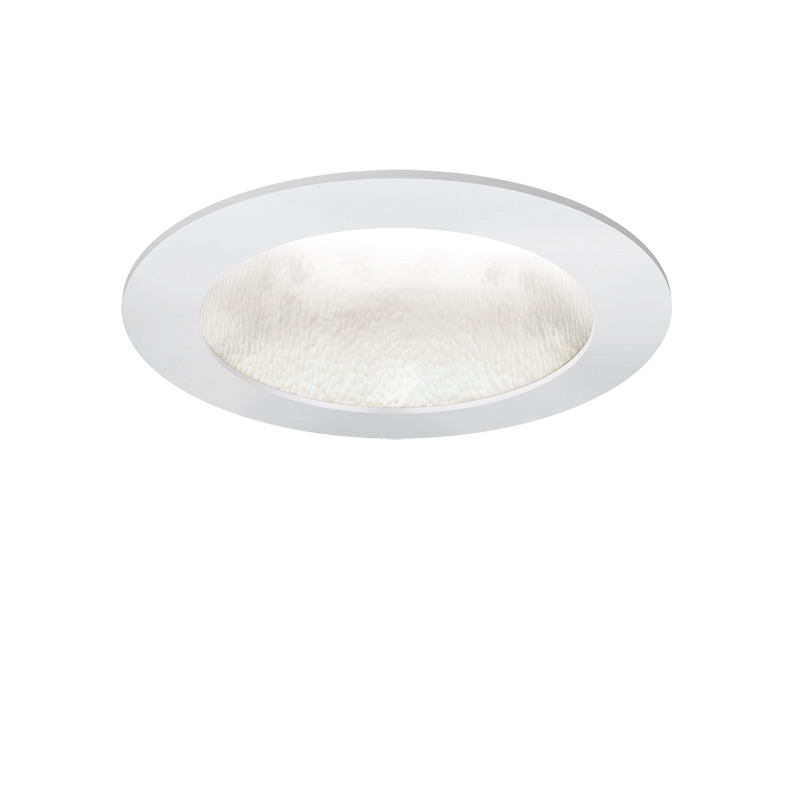

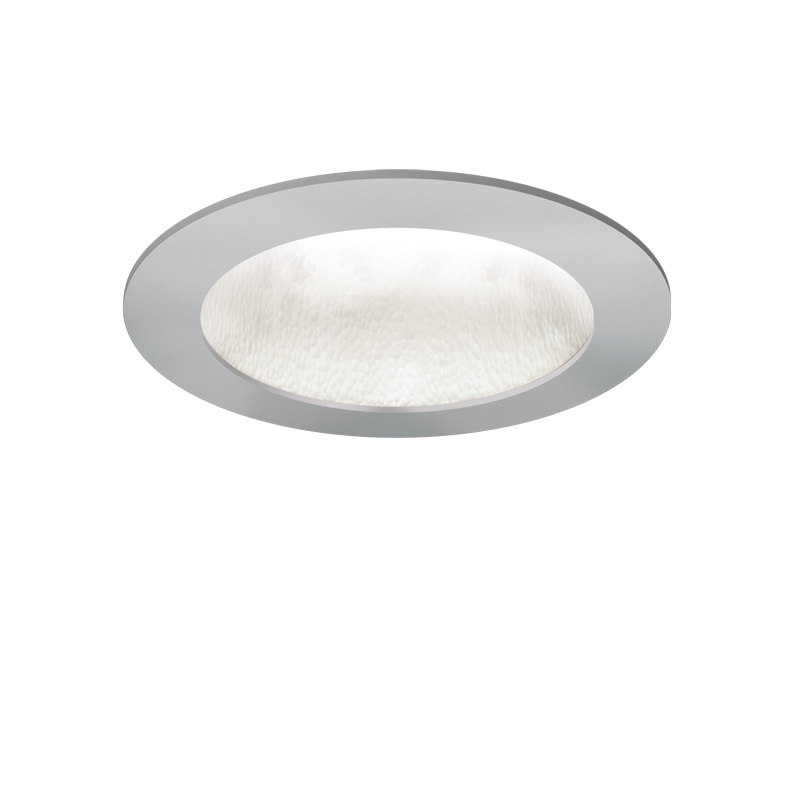

- Colours: white, anthracite, silver (on request)
Product details
| Light colourLight colour | Luminous flux [lm] | P System *[W] | System efficiency [lm/w] |
|---|---|---|---|
| 830 | 3199 | 22 | 145 |
| 840 | 3368 | 22 | 153 |
| 927 | 2606 | 22 | 118 |
| 930 | 2753 | 22 | 125 |
| 940 | 2886 | 22 | 131 |
| Brilliant | 2618 | 22 | 119 |
| 830 | 3675 | 26 | 141 |
| 840 | 3869 | 26 | 149 |
| 927 | 2994 | 26 | 115 |
| 930 | 3163 | 26 | 122 |
| 940 | 3315 | 26 | 128 |
| Brilliant | 3004 | 26 | 116 |
| Meat | 1786 | 26 | 69 |
| NMeat | 1401 | 26 | 54 |
| 830 | 4130 | 30 | 138 |
| 840 | 4348 | 30 | 145 |
| 927 | 3364 | 30 | 112 |
| 930 | 3554 | 30 | 118 |
| 940 | 3726 | 30 | 124 |
| Brilliant | 3366 | 30 | 112 |
| 830 | 4573 | 34 | 135 |
| 840 | 4815 | 34 | 142 |
| 927 | 3726 | 34 | 110 |
| 930 | 3936 | 34 | 116 |
| 940 | 4125 | 34 | 121 |
| Brilliant | 3713 | 34 | 109 |
| Meat | 2190 | 34 | 64 |
| NMeat | 1726 | 34 | 51 |
| 830 | 5206 | 40 | 130 |
| 840 | 5266 | 40 | 132 |
| 927 | 4074 | 40 | 102 |
| 930 | 4305 | 40 | 108 |
| 940 | 4512 | 40 | 113 |
| Brilliant | 4195 | 40 | 105 |
| P System : The value can be up to 10% higher. | |||
More information
Technical data
| Information | Values |
| Connection data | 220-240 V, 50/60 Hz (110-277 V on request) |
| Weight | approx. 0,9 kg |
| Colour tolerance | 3SDCM (MacAdam) |
| Maintenance of luminous flux | L80/B10 ≥ 50.000h, Ta 25 °C L90/B50 ≥ 50.000h, Ta 25 °C |
| Failure rate | C0/B10 ≥ 50.000h, Ta 25 °C |
| Photobiological safety | RG1 |
| Number per circuit breaker B 16A | 34 |
| Protection class | 1 |
| Type of protection | IP20 |
| Certification mark | ENEC / EAC |
